2-480703-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | 04P UMNL CAP HSG NATL Power to the Board 04P CAP HSG NAT CONN CAP 4POS UNIV-M-N-L NATURAL |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | Power to the Board |
| 标准包装数量 | 2,000 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 否 |
电气参数
| 供电电压 | 250 | 中心频率 | 不带 |
机械参数
| 颜色 | Natural | 间距 | 0.250" (6.35mm) |
| 宽度 | 7.62 mm [ .3 in ] | 高度 | 26.88 mm [ 1.05 in ] |
| 长度 | 27.43 mm [ 1.07 in ] | 密封型 | Not Sealed |
| 包装方式 | Bulk | 触头类型 | Male or Female |
| 安装类型 | Panel Mount, Snap-In | 连接器类型 | Receptacle |
| 接触镀层 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Panel | 排数 | 1 |
| 封装形式 | Receptacle | 壳体材料 | Nylon |
| 包装数量 | 1 | 面板安装类型 | 不带 |
| 端接样式 | 插针 | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 兼容外壳尺寸（如TM-700等） | 插头护套 | 典型触点布局 | 直插式 |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Contacts Not Provided | 产品子类型 | Cap Housings |
| 选择性装载 | No | 装配配置 | Without |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
1-480702-1
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS UNIV-M-N-L BROWN Power to the Board PLUG HOUSE 4 POS BROWN UL94V-2 Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 04P UMNL PLUG HSG BRN
1-480702-2
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 4POS 94V-2 RED Pin & Socket Connectors 4P PLUG HSG RED Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 04P UMNL PLUG HSG RED

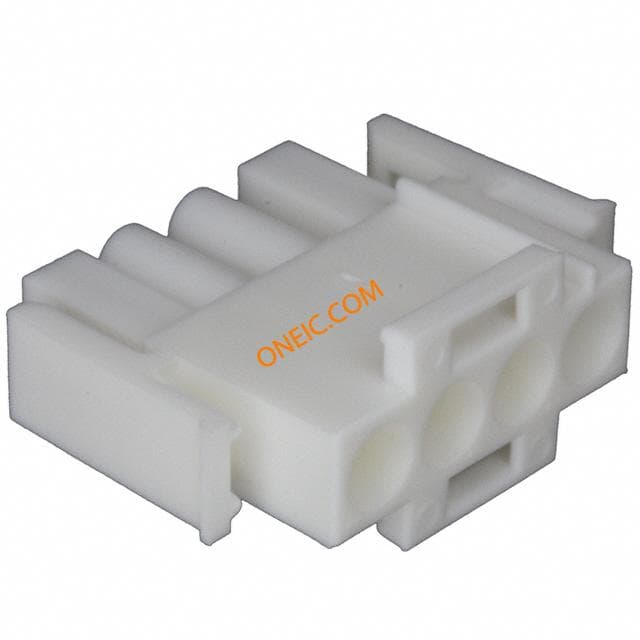

350779-1
te connectivity / amp
Conn Housing PL 4 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS 94V-0 UNI-MATE 4 way white plug housing Pin & Socket Connectors PLUG HOUSE. 4 POS. Conn Housing PL 4 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 4WAY Connector,SoftShell;UniversalMATE-N-LOK;4;Plug;Nylon;White;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:4; 600V Crimp housing Pitch6.35 mm Poles 4 MATE-N-LOK Universal, 350779-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 4 路 直 公 压接连接器外壳 04P UMNL PLUG HSG
2-480702-0
te connectivity / amp
Conn Power PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Power to the Board 04P PLUG HSG NAT CONN PLUG 4POS UNIV-M-N-L NATURL Conn Power PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 04P UMNL PLUG HSG NATL
350705-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board PIN 20-14 BR/AU SPLIT Conn Contact M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVMATE-N-LOKLP,UMNLSPLITPIN20-14AUBRL/P UMNL SPLIT PIN 20-14 AUBR L/P
350538-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board UMNL PIN 20-14 AU/NI 350538-7 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK Product LineContact Gender = PinTerminate To WireCrimp Termination MethodSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 20-14AWG UMNL PIN 20-14 AU/NI/BR
1-480702-9
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 4POS 94V-2 BLK Power to the Board PLUG HOUSE 4 POS BLACK UL94V-2 Conn Housing PL 4 POS 6.35mm Crimp ST Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousing Gender = PlugNot PreloadedAccepts Contact Gender = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 04P UMNL PLUG HSG BLK
350851-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Power to the Board 24-18 SOCKET CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Universal Mate-N-Lok 24-18 AWG Wire to Cable Crimp Socket Contact TE Connectivity 母 印刷电路板连接器触点, 压接, 镀金触点 UMNL SOK 24-18 AUNIBR
350537-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP Power to the Board CRIMP PIN 20-14 REEL 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVMATE-N-LOKSTRIP,UMNLSOK20-14.0125PTPPHBZ UMNL SOK 20-14 .0125 PTPPHBZ
350925-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 26-30AWG UNIV M-N-L Pin & Socket Connectors SOCKET 26-30 AWG .250" Centerline, 600 V, 19 - 36 A max Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL SOK AUNI/PHBZ
1-480702-3
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS UNIV-M-N-L ORANGE
350779-4
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max 04P UMNL PLUG HSG UL94VO Universal mate-n-lok 4w Plug Connector Power to the Board 04P PLUG UL94VO Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HOUSING, PLUG, 4 WAY, NYLON Conn;PlugHsg;4Pos;UnivMATE-N-LOK;White Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:4; 600V Crimp housing 6.35 mm Poles 4 MATE-N-LOK Universal, 350779-4, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 4 路 直 公 电缆安装 压接连接器外壳
1-480702-0
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS 94V-2 UNI-MATE Pin & Socket Connectors PLUG HOUSE 4 POS Conn Housing PL 4 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, SINGLE ROW, 4WAY Connector,SoftShell;UniversalMATE-N-LOK;4;Plug;Nylon;Natural;19A Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:4; 600V .250" Centerline, 600 V, 19 - 36 A max; Connector Universal MATE-N-LOK Product Line Housing Connector Style: Plug Contact Type: Pin or Socket Crimp housing Pitch6.35 mm Poles 4 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480702-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 4 路 直 公 压接连接器外壳 04P UMNL PLUG HSG NATL
1-480702-8
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Individual CONN PLUG 4POS UNIV-M-N-L GRAY
1-480702-4
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS UNIV-M-N-L YELLOW
1-480702-5
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS UNIV-M-N-L GREEN Power to the Board 04P PLUG HSG GRN Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOK Product LineIn-Line Contact Layout6.35 mm CenterlineNumber of Positions = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 04P UMNL PLUG HSG GRN
350561-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,pin,0.20-0.80mm² Power to the Board PIN CONTACT 24-18 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 24-18AWG, CRIMP UNIVMATE-N-LOKSTRIP,UMNLPIN24-18.0126AU/NI/BR TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 24-18 .0126 AU/NI/BR

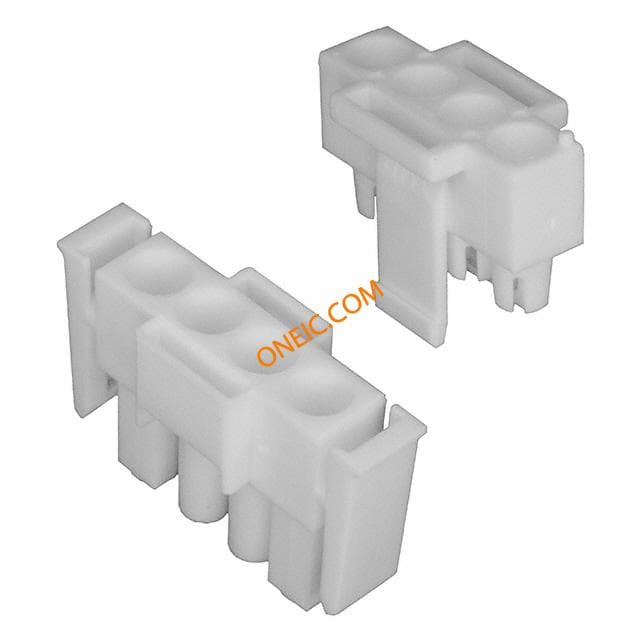

770019-1
