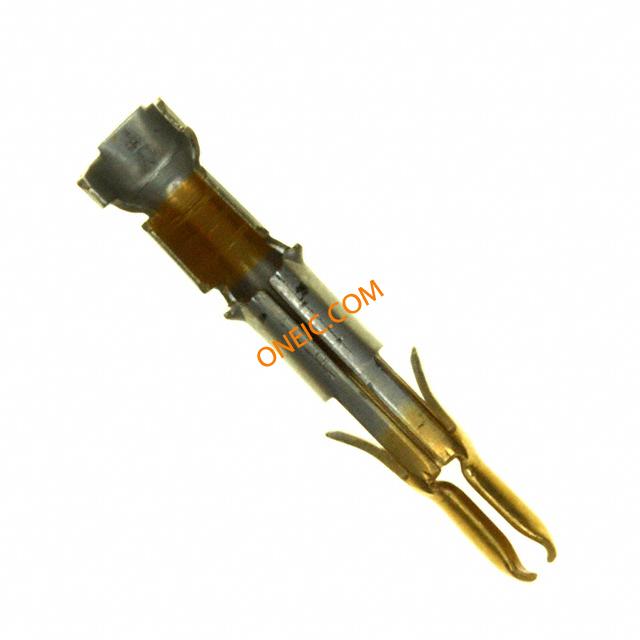

350705-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board PIN 20-14 BR/AU SPLIT Conn Contact M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVMATE-N-LOKLP,UMNLSPLITPIN20-14AUBRL/P UMNL SPLIT PIN 20-14 AUBR L/P |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR 16455 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| 认证机构标志 | 是 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | 连接器类型 - 电压输入 | 开合 |
机械参数
| 镀层 | 金 | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 导线线规 | 14-20 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 插针或插孔 | Split Pin | 连接器类型 | Connector Power |
| 接触镀层 | Gold Over Nickel | 壳体镀层 | Nickel |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 包装数量 | 1000 | 端接样式 | Quick Connect |
| 第一触头极性 | Pin (Male) | 适用端子尺寸 | No |
| 接触件端接 | Crimp | 绝缘直径 | 1.52 – 3.3 mm [ .06 – .13 in ] |
| 兼容外壳尺寸（如TM-700等） | 通用 MATE-N-LOK 插头或插座护套 | 接触件表面处理 - 配合 | 金 |
| 法兰上方插针尺寸 | 2.18 mm [ .086 in ] | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 20-14 | 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] |
产品信息
| 连接器性别 | PIN | 产品子类型 | Contacts |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
