2-480706-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG MATRIX 9 CIRCUIT UMNL Power to the Board 09P PLUG HSG NAT .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 9 Position 6.35mm 600V Mate-N-Lok Plug 09P UMNL PLUG HSG NATL |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | 连接器类型 - 电压输入 | Crimp |
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 排间距 | 0.250" (6.35mm) | 触点形式 | Male or Female |
| 触头类型 | Male or Female | 引脚间距 | 0.250" (6.35mm) |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 3 |
| 封装形式 | Plug | 面板厚度 | .03 – .09 |
| 壳体材料 | Nylon | 包装数量 | 1 |
| 第一触头极性 | Pin (Male), Socket (Female) | 触点数 | 9 |
| 接触件端接 | Crimp | 位数 | 9 |
| 兼容外壳尺寸（如TM-700等） | 适当的通用 MATE-N-LOK 母端或公端 | 典型触点布局 | 矩阵 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Mate-N-Lok |
| 产品子类型 | Connectors | 输出配置 | Free Hanging (In-Line) |
| 装配配置 | Without | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
1-480707-3
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS UNIV-M-N-L ORANGE
1-350782-9
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-0 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-0 09P UMNL V0 CAP HSG BLACK 09P UMNL V0 CAP HSG BLACK Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
641971-1
te connectivity / amp

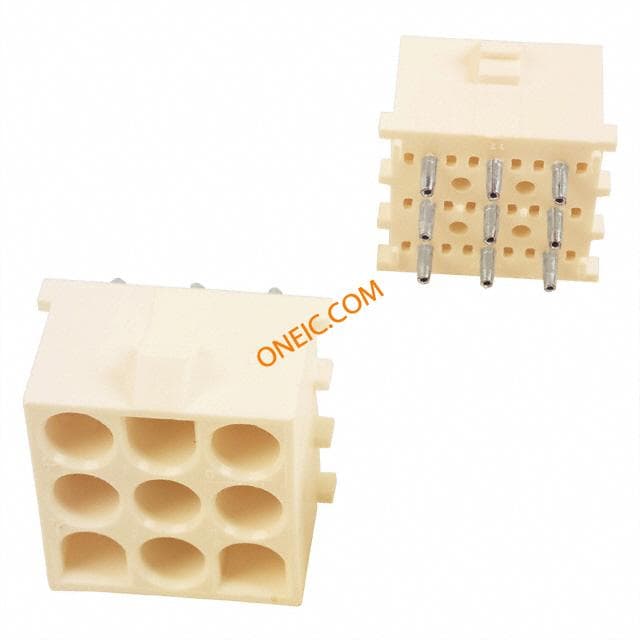

Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board 9POS VERT MATE-N-LOK Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Plug;9Pos;UnivMATE-N-LOK;Vertical;Natural 09P UMNL PIN HDR ASSY V2 NATL
1-480707-9
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-2 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-2 Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL CAP HSG BLK
643426-3
te connectivity / amp
Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 GOLD Pin & Socket Connectors 9P SOK HDR ASSY POL Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL SOK HDR ASSY POL LF
1-480707-0
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS 94V-2 UNI-MATE Housing,receptacle,free hanging,9way Pin & Socket Connectors CAP HOUSE 9 POS Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, 3 ROW, 9 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;9;Receptacle(Cap);Nylon;19A Socket; wire-board; male/female; w/o terminals; PIN:9; 600V Receptacle housing Pitch6.35 mm Poles 9 Multi row / for panel mount MATE-N-LOK Universal, 1-480707-0, TE Connectivity 09P UMNL CAP HSG NATL
350835-1
te connectivity / amp

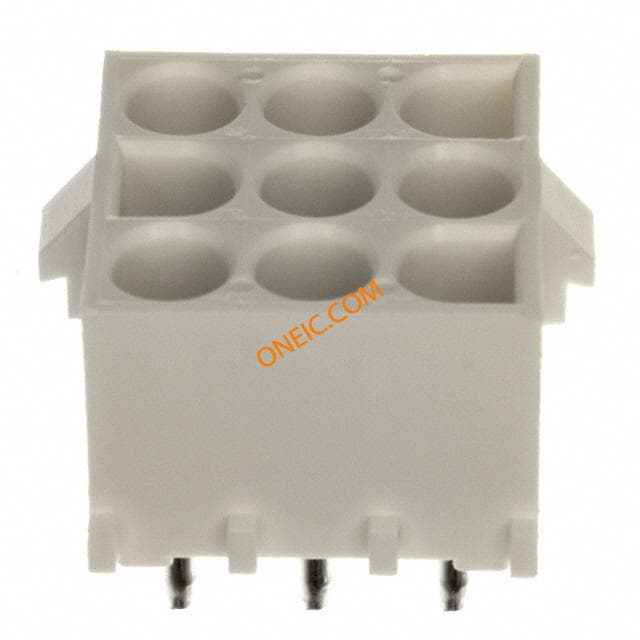

Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board PCB SOCKET HDR 9P .250" Centerline, 600 V, 19 - 36 A max Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHeaderHeader Gender = ReceptaclePreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL HDR ASSY PC 94VO
