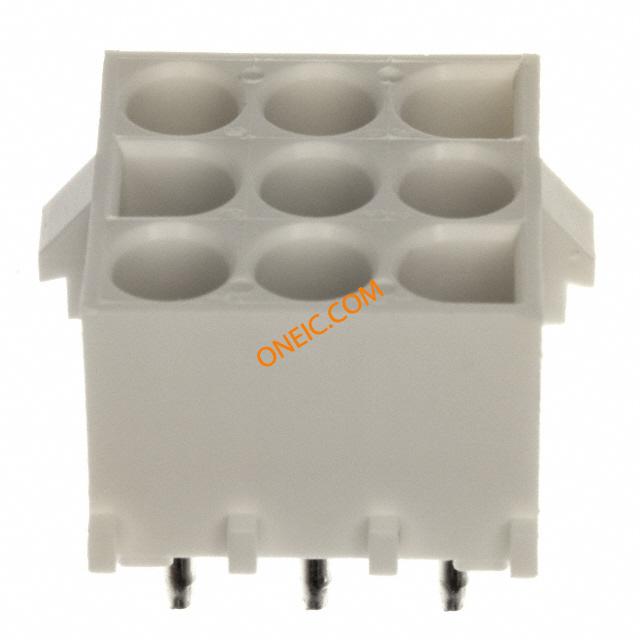

350835-1

点击放大查看

350835-1

制造商
TE Connectivity Ltd.
描述Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board PCB SOCKET HDR 9P .250" Centerline, 600 V, 19 - 36 A max Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHeaderHeader Gender = ReceptaclePreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL HDR ASSY PC 94VO
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳

商业参数

标准包装规格100产品类别Power to the Board
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0认证机构标志是

电气参数

额定电压600 V供电电压600
最大额定电流19 A最小供电电压600VAC

机械参数

颜色Natural间距6.35 mm
宽度20.32高度14.73 mm
长度20.32密封型Not Sealed
包装方式Bulk排间距0.250" (6.35mm)
端接方式Solder触点形式Female Socket
触头类型Female Socket引脚间距0.250" (6.35mm)
安装类型Through Hole连接器类型Header
接触镀层Tin紧固类型Locking Ramp
安装样式Through Hole引脚数9
排数3封装形式Plug
高度（英寸）13.97触头材料Phosphor Bronze
壳体材料Polyamide (PA)包装数量100
面板安装类型通孔 - 焊接端接样式插针
第一触头极性Socket (Female)触点数9
位数9兼容外壳尺寸（如TM-700等）与插头护套插接（使用插针端子）
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局矩阵端子柱长度3.18 mm [ .125 in ]
接触镀层厚度2.54 µm [ 100 µin ]静电放电屏蔽不带
每排/每行位置数All护套（绝缘）厚度1.27 µm [ 50 µin ]

产品信息

类型Power连接器性别SKT
系列Universal MATE-N-LOK, AMP产品子类型Headers
端口数1 Port输出配置Through Hole
应用细节Power装配配置Without
加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C
封装热阻1.57 mm [ .062 in ]
