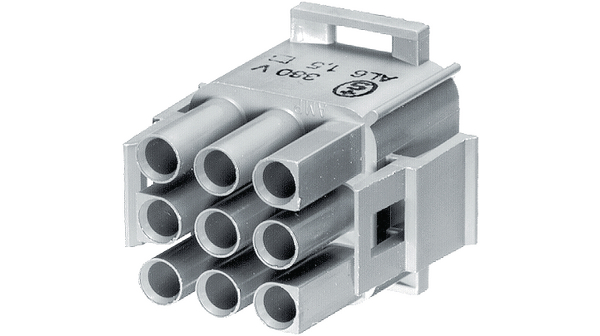

350720-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 9 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN HOUSING 9POS FREE HANGING Universal mate-n-lok 9w Plug Connector Pin & Socket Connectors 09P PLUG UL94VO Conn Housing PL 9 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 9WAY Conn;PlugHsg;9Pos;UnivMATE-N-LOK;White Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:9; 600V Crimp housing 6.35 mm Poles 9 MATE-N-LOK Universal, 350720-4, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 9 路 直 公 电缆安装 压接连接器外壳 09P UMNL PLUG HSG UL94VO |
| 分类 |
商业参数
| 其他名称 | 3507204 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | designed for any type of contacts |
机械参数
| 颜色 | White | 深度 | 27.31mm |
| 间距 | 6.35 mm | 长度 | 27.43mm |
| 重量 | 0.006 | 包装方式 | Bulk |
| 导线线规 | 10-30 AWG | 排间距 | 0.250" (6.35mm) |
| 触头类型 | Male or Female | 柱间距 | 6.35mm |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 3 |
| 锁定特性 | lock | 壳体材料 | Nylon |
| 总长度 | 27.43 mm | 包装数量 | 200 |
| 尺寸/外形 | see | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 9 |
| 接触件端接 | Crimp | 位数 | 9 |
| 线规或范围 - mm² | :5mm² | 第一连接器安装特征 | 3x3 |
产品信息
| SPG | 200 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacle Housings | 适配器系列 | Universal MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector |
环境参数
| 工作温度 | -55C to 105C | ||
