1-480706-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 9POS 94V-2 RED Power to the Board PLUG HOUSE 9 POS RED UL94V-2 Conn Housing PL 9 POS 6.35mm Crimp ST Loose Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL PLUG HSG RED |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | ||
机械参数
| 颜色 | Red | 间距 | 6.35 mm |
| 宽度 | 27.38 | 长度 | 27.38 |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 红色 | 排间距 | 0.250" (6.35mm) |
| 触头类型 | Male or Female | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 3 | 封装形式 | Plug |
| 壳体材料 | Polyamide (PA) | 包装数量 | 1 |
| 端接样式 | Wire | 第一触头极性 | Pin (Male) |
| 触点数 | 9 | 接触件端接 | Crimp |
| 位数 | 9 | 兼容外壳尺寸（如TM-700等） | 适当的通用 MATE-N-LOK 母端或公端 |
| 典型触点布局 | 矩阵 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | Housings |
| 装配配置 | Without | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
相关型号
1-480707-3
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS UNIV-M-N-L ORANGE
1-350782-9
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-0 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-0 09P UMNL V0 CAP HSG BLACK 09P UMNL V0 CAP HSG BLACK Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP

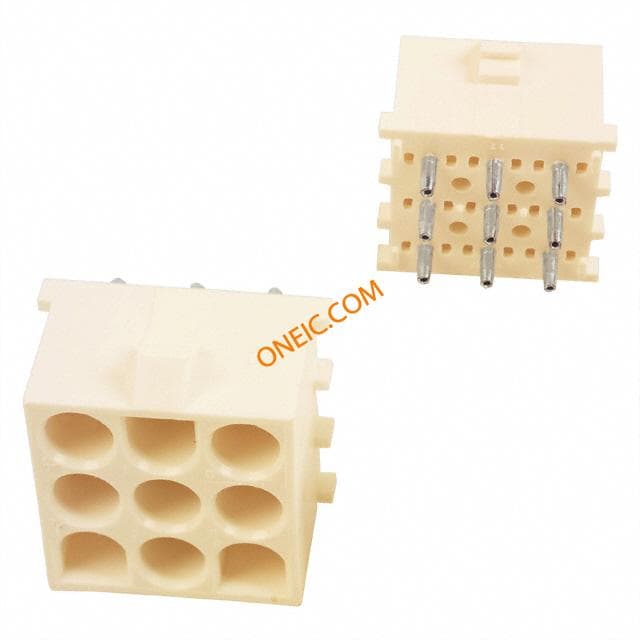

641971-1
te connectivity / amp
Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 TIN Power to the Board 9POS VERT MATE-N-LOK Conn Power HDR 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Plug;9Pos;UnivMATE-N-LOK;Vertical;Natural 09P UMNL PIN HDR ASSY V2 NATL
1-480707-9
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 9POS 94V-2 BLK Power to the Board CAP HOUSE 9 POS BLACK UL94V-2 Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL CAP HSG BLK
643426-3
te connectivity / amp
Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 9POS VERT .250 GOLD Pin & Socket Connectors 9P SOK HDR ASSY POL Conn Power SKT 9 POS 6.35mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL SOK HDR ASSY POL LF
1-480707-0
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 9POS 94V-2 UNI-MATE Housing,receptacle,free hanging,9way Pin & Socket Connectors CAP HOUSE 9 POS Conn Housing RCP 9 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 9Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, 3 ROW, 9 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;9;Receptacle(Cap);Nylon;19A Socket; wire-board; male/female; w/o terminals; PIN:9; 600V Receptacle housing Pitch6.35 mm Poles 9 Multi row / for panel mount MATE-N-LOK Universal, 1-480707-0, TE Connectivity 09P UMNL CAP HSG NATL

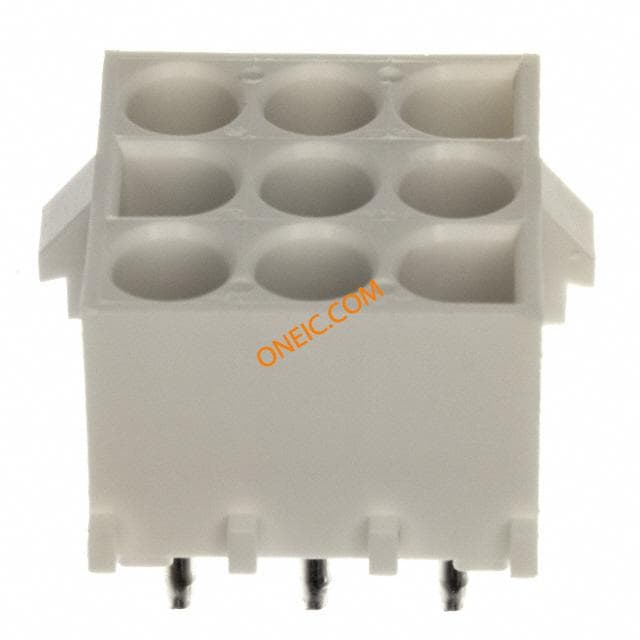

350835-1
