1-480708-2

点击放大查看

1-480708-2

制造商
TE Connectivity Ltd.
描述Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece CONN U-MNL PLUG 12POS 94V-2 RED Power to the Board PLUG HOUSE 12 POS RED UL94V-2 Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PLUG HSG RED
分类
连接器解决方案矩形连接器高可靠性矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Power to the Board标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-2认证机构标志是

电气参数

额定电压600 V供电电压600
最大额定电流19 A最小供电电压600VAC

机械参数

颜色Red深度27.43 mm
间距6.35 mm宽度20.32
高度27.43 mm长度26.67
密封型Not Sealed包装方式Bulk
壳体颜色红色导线线规10-30 AWG
排间距0.250" (6.35mm)触头类型Male or Female
外壳颜色Red安装类型Straight
连接器类型Plug接触镀层Without
紧固类型Latch Lock安装样式Free Hanging
排数3封装形式Plug
高度（英寸）27.43壳体材料Polyamide (PA)
包装数量1端接样式Wire
第一触头极性Pin (Male)触点数12
接触件端接Crimp位数12
兼容外壳尺寸（如TM-700等）适当的通用 MATE-N-LOK 母端或公端典型触点布局矩阵

产品信息

备注Contacts Not Provided类型Housing
连接器性别PL产品子类型Housings
装配配置Without

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C

文档与媒体

在线文档
1-480708-2?RQPN=1-480708-2

相关型号

641974-1

641974-1

te connectivity / amp

Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Power to the Board 12P PIN HDR ASSY .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Plug;12Pos;UnivMATE-N-LOK;White 12P UMNL PIN HDR ASSY 94VO

¥6.7116
详情

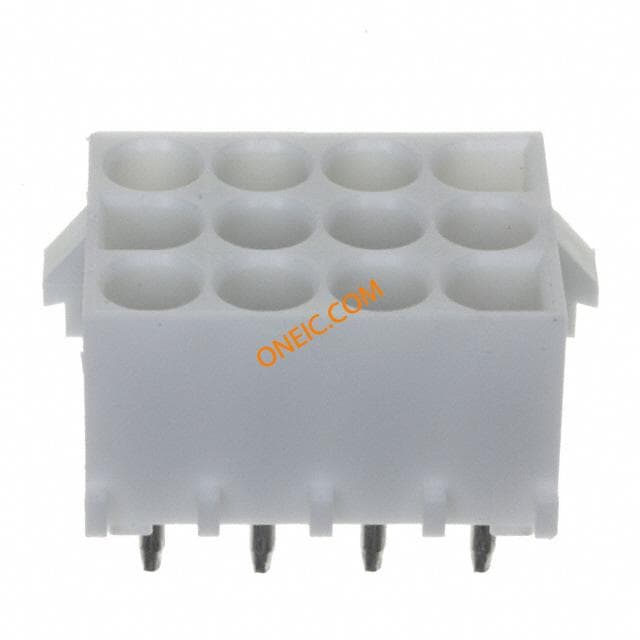

350836-4

350836-4

te connectivity / amp

Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 GOLD Pin & Socket Connectors 12P HDR ASSY PC 94V0 .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL HDR ASSY PC 94VO LF

¥23.5960
详情
643428-1

643428-1

te connectivity / amp

Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm 12 Way 3 Row Straight PCB Socket Through Hole Power Pin & Socket Connectors HEADER ASSY 12 POS Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP SOCKETHEADER12WAYPCB TE Connectivity Universal MATE-N-LOK 系列 3行 12路 直 6.35mm节距 通孔 印刷电路板插座, 功率 12P UMNL HDR ASSY POL 94VO

¥6.4600
详情
350737-1

350737-1

te connectivity / amp

Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN Power to the Board PCB HDR 12P Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IICompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PIN HDR ASSY 94VO

¥6.5838
详情

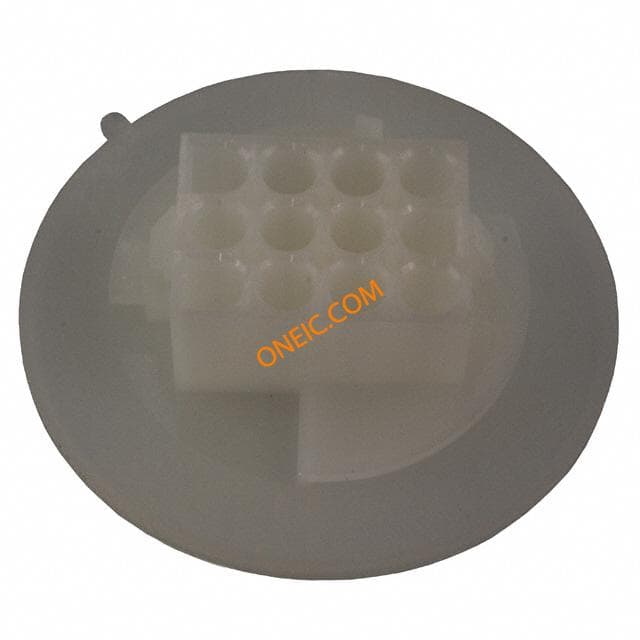

794716-1

794716-1

te connectivity / amp

Conn Housing RCP 12 POS 6.35mm Crimp ST Panel Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP RCPT 12POS UMNL FLANGE Power to the Board FLANGED CAP HSG 12P UL94V-2 Housing;UniversalMATE-N-LOK;12;19;600;Receptacle(Cap);Nylon;Natural 12P UMNL CAP HSG NATL,PAN MNT

¥7.7391
详情

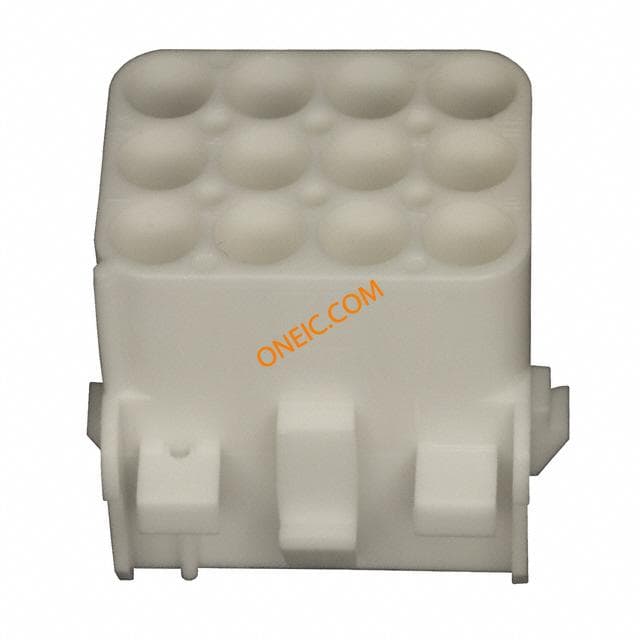

350783-1

350783-1

te connectivity / amp

Conn Housing RCP 12 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 12POS 94V-0 UNI-MATE 12 way white receptacle housing Pin & Socket Connectors CAP HOUSE 12 POS Conn Housing RCP 12 POS 6.35mm Crimp ST Panel Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP RECEPTACLE HOUSING, 12WAY Connector,SoftShell;UniversalMATE-N-LOK;12;Receptacle(Cap);Nylon;White Plug/socket; wire-wire/PCB; male/female; w/o terminals; 6.35mm Receptacle housing Pitch6.35 mm Poles 12 Multi row / for panel mount MATE-N-LOK Universal, 350783-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 4 行 6.35mm 节距 12 路 直 母 压接连接器外壳 12P UMNL CAP HSG

¥2.2970
详情
2-480709-0

2-480709-0

te connectivity / amp

Conn Housing RCP 12 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 12POS UNIV-M-N-L NATUL Power to the Board 12P CAP HSG NAT .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL CAP HSG NATL

¥5.4400
详情

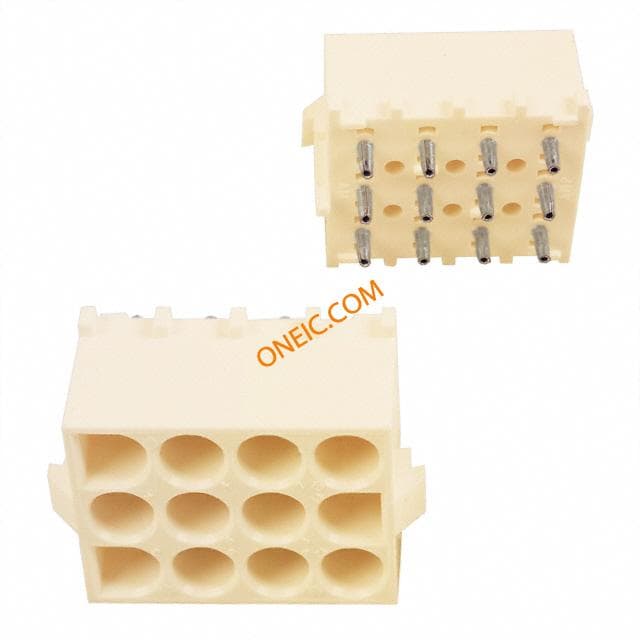

350764-5
