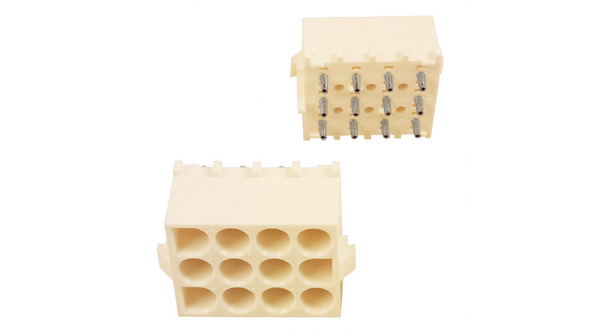

350433-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN MATE-N-LOK 12 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 12 POS STD TAIL PIN Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 12WAY Header;SoftShell;UniversalMATE-N-LOK;Natural;Nylon;12;UL94V-2 Socket; wire-wire/PCB; male; straight; 6.35mm; PIN:12; THT; 19A Pin header Pitch6.35 mm Poles 12 MATE-N-LOK Universal, 350433-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 12路 直 PCB 针座, 焊接端接, 19A , 通孔 12P UMNL PIN HDR ASSY NATL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-2 |
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V ac |
| 工作电压 | :600V | 接触电阻 | :3.5mohm |
| 介电强度 | :2900V | 最大额定电流 | 19A |
| 绝缘电阻 | :1000Mohm | 最小输入电压 | 600VAC |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | straight |
机械参数
| 颜色 | Natural | 深度 | 20.32 mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 重量 | 0.006 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 排间距 | 0.250" (6.35mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :6.35mm | 柱间距 | 6.35mm |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Pre-Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 3 |
| 锁定特性 | lock | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 26.67 mm |
| 包装数量 | 1 | 连接器 - 电缆 | socket |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Clear |
| 触点数 | 12 | 接触件端接 | :Through Hole Vertical |
| 位数 | 12 | 安装孔直径 | :1.8mm |
| 第一连接器安装特征 | 4x3 | ||
产品信息
| SPG | 1 | 类型 | Power |
| 连接器性别 | HDR | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacle Housings |
| 适配器系列 | Universal MATE-N-LOK | 端口数 | 1 |
| 单元数量 | 75 | 加载位置数 | All |
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
文档与媒体
相关型号
1-480708-8
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS UNIV-M-N-L GRAY
2-480708-0
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12PS FREE HANG UNM-N-L Power to the Board 12P PLUG HSG NAT .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PLUG HSG NATL
926895-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 24-18AWG MATE-N-LOK Mate-N-Lok socket contact,24-18awg Power to the Board SOCKET 24-18 AWG 926895-1 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP SOCKET, PK100 Mate-N-Loksocketcontact,24-18awg Contact; female; 0.2÷0.8mm2; Universal MATE-N-LOK; tinned; 19A Crimp socket Female 24...18 AWG, 926895-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 UNIVERSAL M-N-L SOCKET
1-350849-2
te connectivity / amp
Conn Power RCP 12 POS 6.35mm ST Cable Mount 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN TEST CAP 12POS UNIV M-N-L
770022-1
te connectivity / amp
Conn Housing PL 12 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS UMNL-II (2PC) Pin & Socket Connectors 12 MATRIX PLUG Conn Housing PL 12 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOKII;12;Plug;Nylon;White;31A Crimp housing Pitch6.35 mm Poles 12 MATE-N-LOK Universal, 770022-1, TE Connectivity 12P UMNLII IN-LNE PLUG HSG KIT
1-480708-2
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece CONN U-MNL PLUG 12POS 94V-2 RED Power to the Board PLUG HOUSE 12 POS RED UL94V-2 Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PLUG HSG RED
350735-1
te connectivity / amp
Conn Housing PL 12 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS 94V-0 UNI-MATE 12 way white plug housing Pin & Socket Connectors PLUG HOUSE 12 POS Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 12WAY Connector,SoftShell;UniversalMATE-N-LOK;12;Plug;Nylon;White;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:12 Crimp housing Pitch6.35 mm Poles 12 MATE-N-LOK Universal, 350735-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 12 路 直 公 压接连接器外壳 12P UMNL PLUG HSG
926896-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONTACT PIN MAT-N-LOK 18-24AWG Mate-N-Lok pin contact,24-18awg Power to the Board PIN 24-18 AWG 926896-1 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP PIN, MATE-N-LOK, PK100 Mate-N-Lokpincontact,24-18awg Contact; male; 0.2÷0.8mm2; Universal MATE-N-LOK; tinned; crimped CONTACT 18-24AWG Crimp pin Male 18...24 AWG, 926896-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 压接接线端子, 镀锡触点 UNIV.M-N-L.PIN
926894-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Mate-N-Lok pin contact,20-14awg Power to the Board PIN 20-14 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20AWG TO 14AWG, CRIMP Contact,Pin,UniversalMATE-N-LOK,20-14AWG Contact; male; 0.5÷2.1mm2; 20÷14AWG; Universal MATE-N-LOK; tinned Crimp pin Male 14...20 AWG, 926894-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 压接接线端子 UNIV.M-N-L.PIN
1-480708-3
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS UNIV-M-N-L ORNG
350433-1
te connectivity / amp
Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN MATE-N-LOK 12 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 12 POS STD TAIL PIN Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 12WAY Header;SoftShell;UniversalMATE-N-LOK;Natural;Nylon;12;UL94V-2 Socket; wire-wire/PCB; male; straight; 6.35mm; PIN:12; THT; 19A Pin header Pitch6.35 mm Poles 12 MATE-N-LOK Universal, 350433-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 12路 直 PCB 针座, 焊接端接, 19A , 通孔 12P UMNL PIN HDR ASSY NATL
1-480709-0
te connectivity / amp
Conn Housing RCP 12 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 12POS 94V-2 UNI-MATE Housing,receptacle,free hanging,12way Pin & Socket Connectors CAP HOUSE 12 POS Conn Housing RCP 12 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP RECEPTACLE HOUSING, 12WAY Connector,SoftShell;UniversalMATE-N-LOK;12;Receptacle(Cap);Nylon;19A Socket; wire-board; male/female; w/o terminals; PIN:12; 600V Receptacle housing Pitch6.35 mm Poles 12 Multi row / for panel mount MATE-N-LOK Universal, 1-480709-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 12 路 直 母 压接连接器外壳 12P UMNL CAP HSG NATL
1-480708-0
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS 94V-2 UNI-MATE Pin & Socket Connectors PLUG HOUSE 12 POS Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR HOUSING, PLUG, 12 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;12;Plug;Nylon;Natural;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:12; 600V Crimp housing Pitch6.35 mm Poles 12 Multi row / Free hanging/cable mount MATE-N-LOK Universal, 1-480708-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 12 路 直 公 压接连接器外壳 12P UMNL PLUG HSG NATL
1-480708-1
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS UNIV-M-N-L BROWN
1-480708-9
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 12POS 94V-2 BLK Power to the Board PLUG HOUSE 12 POS BLACK UL94V-2 Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PLUG HSG BLK
350735-4
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Power to the Board 12P PLUG UL94VO .250" Centerline, 600 V, 19 - 36 A max CONN HOUSING 12POS FREE HANGING Universal mate-n-lok 12w Plug Connector Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:12; 600V Crimp housing 6.35 mm Poles 12 MATE-N-LOK Universal, 350735-4, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 12 路 直 公 电缆安装 压接连接器外壳 12P UMNL PLUG HSG UL94VO
926893-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP Mate-N-Lok socket contact,20-14awg Power to the Board UNIV.M-N-L.SOCKET 926893-1 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20AWG TO 14AWG, CRIMP Contact; female; 0.5÷2.1mm2; 20÷14AWG; Universal MATE-N-LOK; 19A Crimp socket Female 20...14 AWG, 926893-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接 UNIV.M-N-L.SOCKET CONTACT
1-480708-6
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Individual Power to the Board OBSOLETE .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS UNIV-M-N-L BLUE

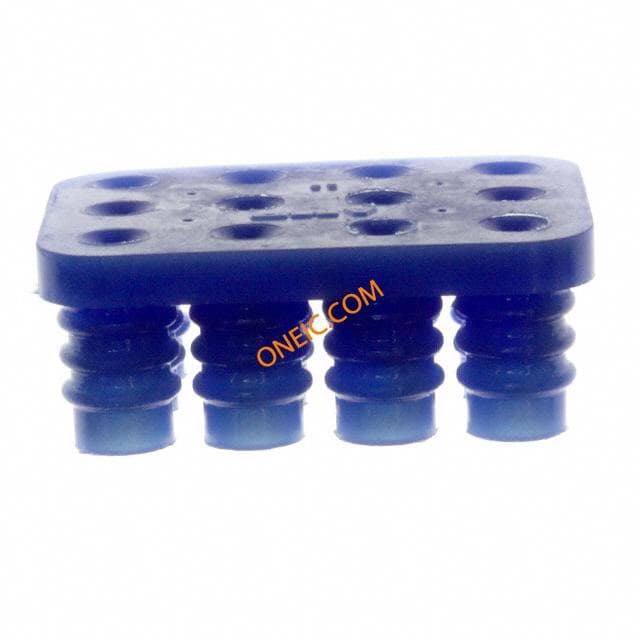

794280-1
