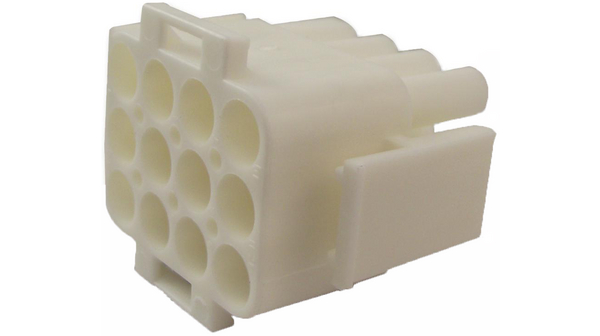

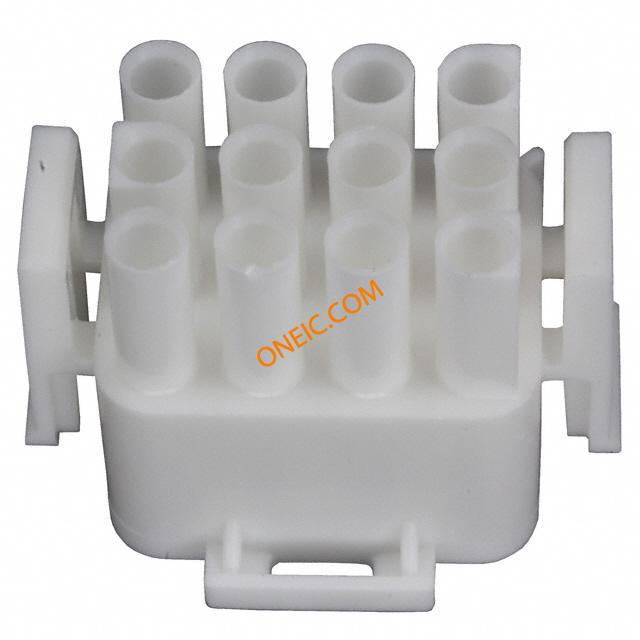

350735-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 12 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS 94V-0 UNI-MATE 12 way white plug housing Pin & Socket Connectors PLUG HOUSE 12 POS Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 12WAY Connector,SoftShell;UniversalMATE-N-LOK;12;Plug;Nylon;White;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:12 Crimp housing Pitch6.35 mm Poles 12 MATE-N-LOK Universal, 350735-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 12 路 直 公 压接连接器外壳 12P UMNL PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 600 V | 工作电压 | :600V |
| 接触电阻 | :3.5mohm | 介电强度 | :5000V |
| 最大额定电流 | 19 A | 绝缘电阻 | :1000Mohm |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Natural | 深度 | 27.43mm |
| 间距 | 6.35 mm | 宽度 | 27.43mm |
| 高度 | 27.43 mm | 重量 | 0.006 |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 导线线规 | 10-30 AWG | 排间距 | 0.250" (6.35mm) |
| 触头类型 | Male or Female | 柱间距 | 6.35mm |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 3 |
| 锁定特性 | lock | 材料表面处理 | :- |
| 壳体材料 | Nylon | 包装数量 | 1 |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Opaque |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 第一连接器安装特征 | 4x3 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | MATE-N-LOK | 已删除 | Compliant |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacle Housings |
| 适配器系列 | Universal MATE-N-LOK | 单元数量 | 1 |
| 适用产品/相关产品 | Centerline Splash Proof/Sealed Connector | ||
环境参数
| 插拔次数 | :50 | 工作温度 | -55C to 105C |
文档与媒体
相关型号
