点击放大查看

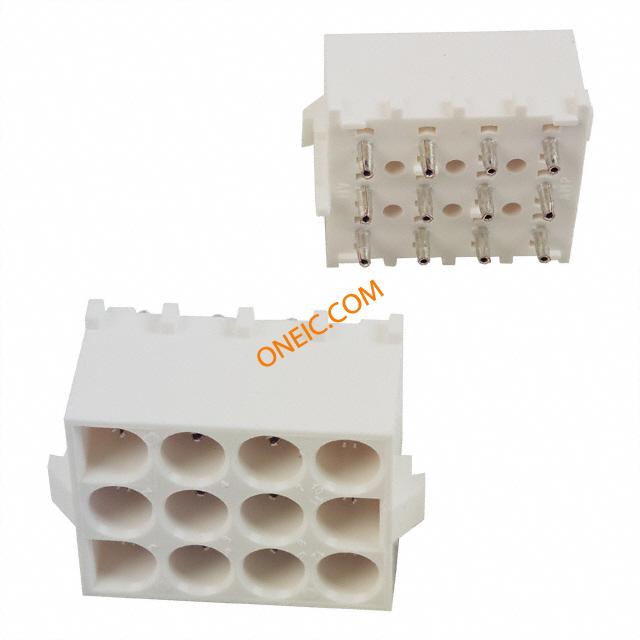

641974-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Power to the Board 12P PIN HDR ASSY .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Plug;12Pos;UnivMATE-N-LOK;White 12P UMNL PIN HDR ASSY 94VO |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | White | 间距 | 6.35 mm |
| 高度 | 14.73 mm | 包装方式 | Bulk |
| 排间距 | 0.250" (6.35mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Pre Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 3 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 第一触头极性 | Pin (Male) |
| 触点数 | 12 | 位数 | 12 |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 产品特性 | Board Guide | 产品子类型 | Headers |
| 端口数 | 1 Port | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 85C | 结工作温度 | 85C |
