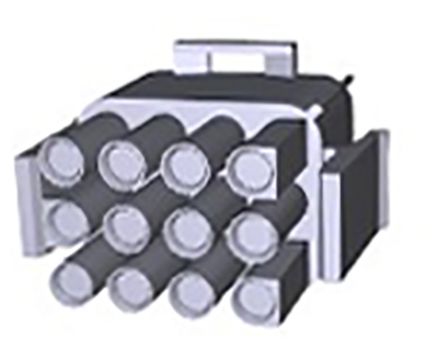

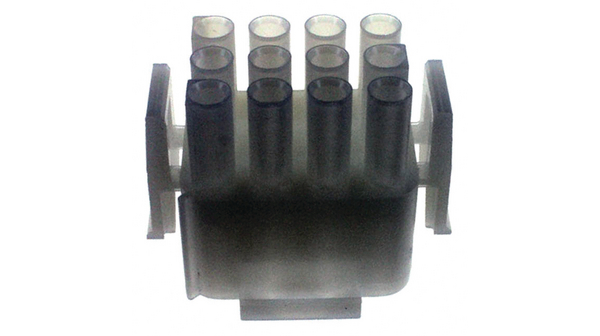

1-480708-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS 94V-2 UNI-MATE Pin & Socket Connectors PLUG HOUSE 12 POS Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR HOUSING, PLUG, 12 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;12;Plug;Nylon;Natural;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:12; 600V Crimp housing Pitch6.35 mm Poles 12 Multi row / Free hanging/cable mount MATE-N-LOK Universal, 1-480708-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 12 路 直 公 压接连接器外壳 12P UMNL PLUG HSG NATL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-2 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小输入电压 | 600VAC | 最小供电电压 | 600VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Natural | 深度 | 27.43 mm |
| 间距 | 6.35 mm | 高度 | 27.43 mm |
| 重量 | 0.006 | 材料（通用） | :Nylon |
| 包装方式 | Loose Piece | 导线线规 | 10-30 AWG |
| 排间距 | 0.250" (6.35mm) | 触头类型 | Male or Female |
| 柱间距 | 6.35mm | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 3 | 壳体材料 | Nylon |
| 包装数量 | 1 | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 第一连接器安装特征 | 3x4 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | Universal Mate-N-Lok | 已删除 | Compliant |
| 产品子类型 | Receptacle Housings | 适配器系列 | Universal MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | :Universal MATE-N-LOK Connectors |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
641974-1
te connectivity / amp
Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Power to the Board 12P PIN HDR ASSY .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Plug;12Pos;UnivMATE-N-LOK;White 12P UMNL PIN HDR ASSY 94VO
350836-4
te connectivity / amp

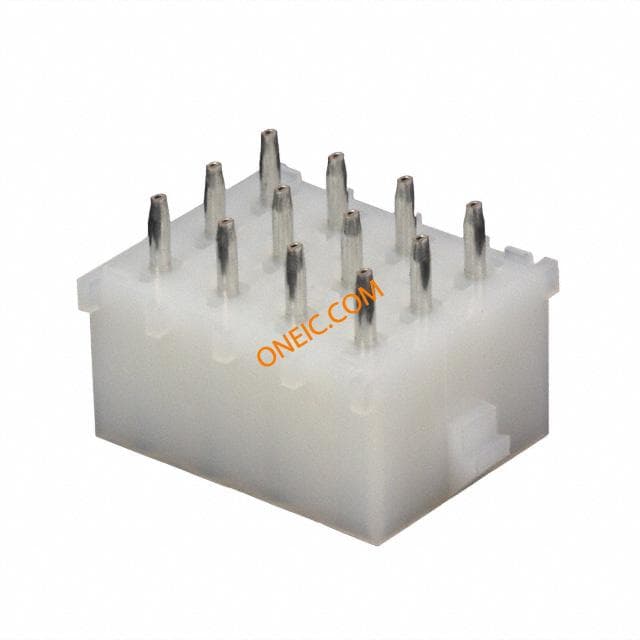

Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 GOLD Pin & Socket Connectors 12P HDR ASSY PC 94V0 .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL HDR ASSY PC 94VO LF
