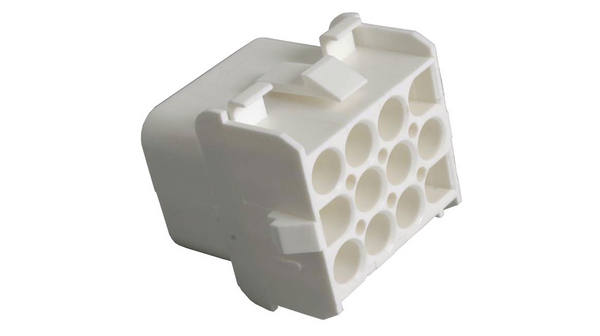

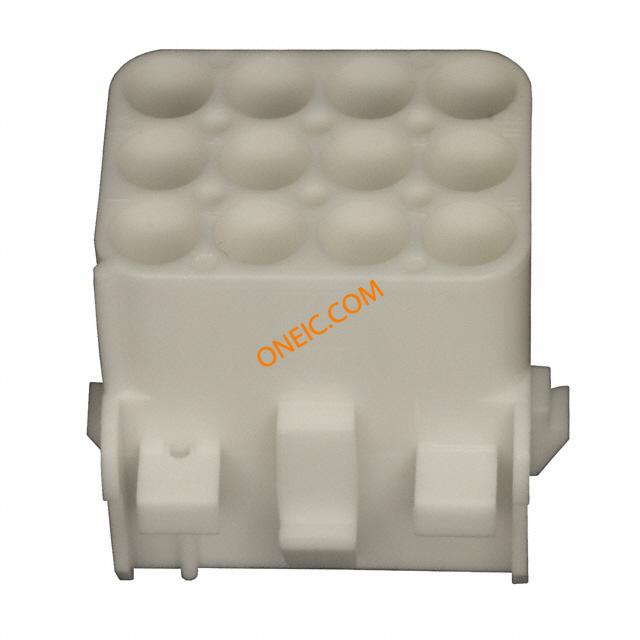

350783-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 12 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 12POS 94V-0 UNI-MATE 12 way white receptacle housing Pin & Socket Connectors CAP HOUSE 12 POS Conn Housing RCP 12 POS 6.35mm Crimp ST Panel Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP RECEPTACLE HOUSING, 12WAY Connector,SoftShell;UniversalMATE-N-LOK;12;Receptacle(Cap);Nylon;White Plug/socket; wire-wire/PCB; male/female; w/o terminals; 6.35mm Receptacle housing Pitch6.35 mm Poles 12 Multi row / for panel mount MATE-N-LOK Universal, 350783-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 4 行 6.35mm 节距 12 路 直 母 压接连接器外壳 12P UMNL CAP HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 600 V | 工作电压 | :600V |
| 接触电阻 | :3.5mohm | 介电强度 | :5000V |
| 最大额定电流 | 19 A | 绝缘电阻 | :1000Mohm |
| 最小供电电压 | 600VDC/600VAC | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Natural | 深度 | 27.43mm |
| 间距 | 6.35 mm | 高度 | 27.43 mm |
| 重量 | 0.01 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 导线线规 | 10-30 AWG |
| 排间距 | 0.250" (6.35mm) | 触头类型 | Male or Female |
| 柱间距 | 6.35mm | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging, Panel |
| 排数 | 4 | 锁定特性 | lock |
| 材料表面处理 | :- | 面板厚度 | :2.29mm |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 包装数量 | 1 | 连接器 - 电缆 | plug/socket |
| 端接样式 | Quick Connect | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Opaque | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
| 第一连接器安装特征 | 4x3 | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | MATE-N-LOK | 已删除 | Compliant |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacle Housings |
| 适配器系列 | Universal MATE-N-LOK | 单元数量 | 1 |
| 适用产品/相关产品 | Centerline Splash Proof/Sealed Connector | ||
环境参数
| 插拔次数 | :50 | 工作温度 | -55C to 85C |
文档与媒体
相关型号
350547-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Contact,crimp,pin,Mate-n-lok,20-14 awg Pin & Socket Connectors PIN CONTACT 20-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP TERMINAL, SOLDERLESS CONTACT,PIN,UNIVERSALMATE-N-LOK,20-14AWG TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金触点 UMNL PIN 20-14 AUBR L/P
2-480708-0
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12PS FREE HANG UNM-N-L Power to the Board 12P PLUG HSG NAT .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PLUG HSG NATL
350851-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET CONTACT 24-18 AWG CONTACT, SOCKET, 24-18AWG, CRIMP UMNL SOK 24-18 AUNIBR
1-480708-2
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece CONN U-MNL PLUG 12POS 94V-2 RED Power to the Board PLUG HOUSE 12 POS RED UL94V-2 Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PLUG HSG RED
794281-1
te connectivity / amp

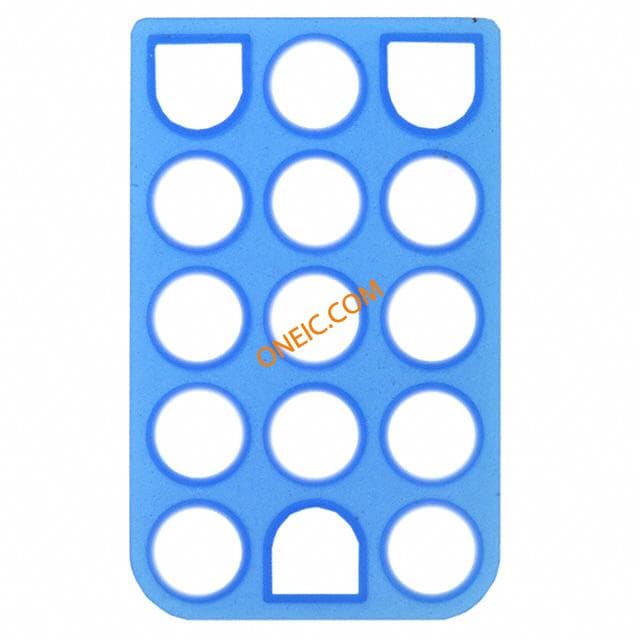

Connector Accessories Interface Seal Plug 15 POS Silicon Rubber Blue .250" Centerline, 600 V, 19 - 36 A max CONN INTERFACE SEAL 15POS UMNL 15 way Mate-N-Lok interface seal Power to the Board SPLASH PROOF SEAL 15 Interface Connector Accessories Interface Seal Plug 15 POS Silicon Rubber Blue Product Highlights:Interface SealUniversal MATE-N-LOKNot CompactPCINumber of Circuits = 15Matrix Contact LayoutSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP INTERFACE SEAL, 15WAY Connector,SoftShell;UniversalMATE-N-LOK;15;19;600;SiliconRubber;Blue Profile gasket; 6.35mm; PIN:15; Pin layout:3x5; Gasket: silicone Sealing plate, 794281-1, TE Connectivity TE Connectivity Universal MATE-N-LOK系列 15路 蓝色 硅橡胶 电线密封, 适用于MATE-N-LOK连接器 15P UMNL INTERFACE SEAL
350705-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board PIN 20-14 BR/AU SPLIT Conn Contact M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVMATE-N-LOKLP,UMNLSPLITPIN20-14AUBRL/P UMNL SPLIT PIN 20-14 AUBR L/P
350735-1
te connectivity / amp
Conn Housing PL 12 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS 94V-0 UNI-MATE 12 way white plug housing Pin & Socket Connectors PLUG HOUSE 12 POS Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 12WAY Connector,SoftShell;UniversalMATE-N-LOK;12;Plug;Nylon;White;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:12 Crimp housing Pitch6.35 mm Poles 12 MATE-N-LOK Universal, 350735-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 12 路 直 公 压接连接器外壳 12P UMNL PLUG HSG
350537-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board SOCKET CONTACT 20-14 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP UNIVMATE-N-LOKSTRIP,UMNLSOK20-14.0126AUNI/BR UMNL SOK 20-14 .0126 AUNI/BR
1-350848-2
te connectivity / amp
Conn Power SKT 12 POS 6.35mm ST Cable Mount 12 Terminal 1 Port Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN TEST PLUG 12POS UNIV M-N-L Power to the Board 12P PLUG TEST 94VO .250" Centerline, 600 V, 19 - 36 A max Product Highlights:Test ConnectorUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PLUG TEST ASSY 94VO
350218-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Contact,crimp,pin,Mate-n-lok,20-14awg,Au Pin & Socket Connectors PIN CONTACT 20-14 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP PIN, 20-14AWG CRIMP PIN, MATE-N-LOK, REEL 5K UNIVMATE-N-LOKSTRIP,UMNLPIN20-14.0126AUBR Mate N Lok .250" Centerline 600 V 19 - 36 A 20-14 AWG Pin TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 20-14 .0126AUBR
350700-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SPLIT PIN 20-14AWG U M-N-L Power to the Board SPLIT PIN 20-14 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL SPLIT PIN AU/NI/BR
350851-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Power to the Board 24-18 SOCKET CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Universal Mate-N-Lok 24-18 AWG Wire to Cable Crimp Socket Contact TE Connectivity 母 印刷电路板连接器触点, 压接, 镀金触点 UMNL SOK 24-18 AUNIBR
1-480708-0
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS 94V-2 UNI-MATE Pin & Socket Connectors PLUG HOUSE 12 POS Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR HOUSING, PLUG, 12 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;12;Plug;Nylon;Natural;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:12; 600V Crimp housing Pitch6.35 mm Poles 12 Multi row / Free hanging/cable mount MATE-N-LOK Universal, 1-480708-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 12 路 直 公 压接连接器外壳 12P UMNL PLUG HSG NATL
1-480708-9
te connectivity / amp
Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 12POS 94V-2 BLK Power to the Board PLUG HOUSE 12 POS BLACK UL94V-2 Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PLUG HSG BLK
350561-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,pin,0.20-0.80mm² Power to the Board PIN CONTACT 24-18 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 24-18AWG, CRIMP UNIVMATE-N-LOKSTRIP,UMNLPIN24-18.0126AU/NI/BR TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 24-18 .0126 AU/NI/BR
794282-1
te connectivity / amp

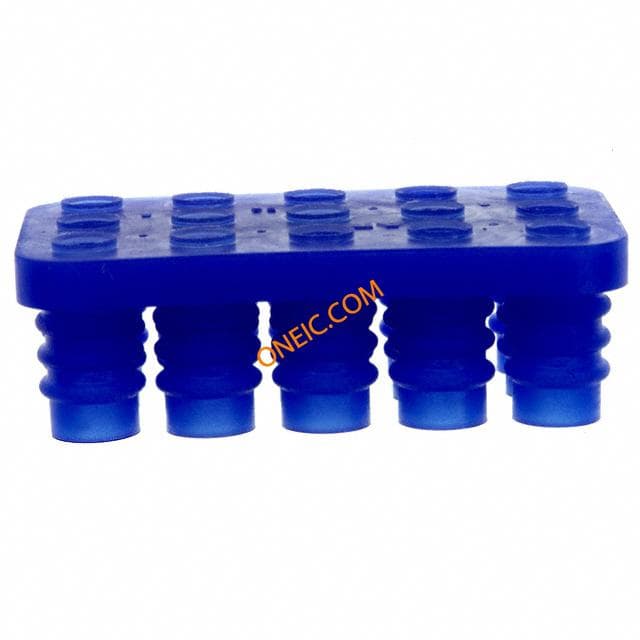

Connector Accessories Seal Protector Plug 15 POS Blue .250" Centerline, 600 V, 19 - 36 A max CONN WIRE SEAL 15POS UMNL BLUE universal mate-n-lok 15 way wire seal Power to the Board SPLASH PROOF SEAL 15 Wire Connector Accessories Seal Protector Plug 15 POS Blue Product Highlights:AccessoryUniversal MATE-N-LOK Product LineAccessory Type = Seal ProtectorRow-to-Row Spacing = 6.35 mmMatrix Contact LayoutSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP WIRE SEAL, 15WAY Connector,SoftShell;UniversalMATE-N-LOK;15;19;600;SiliconRubber;Blue Seal for wire; 6.35mm; PIN:15; Pin layout:3x5; Gasket: silicone Wire seal, 794282-1, TE Connectivity TE Connectivity MATE-N-LOK系列 蓝色 硅橡胶 电线密封 15P UMNL WIRE SEAL
