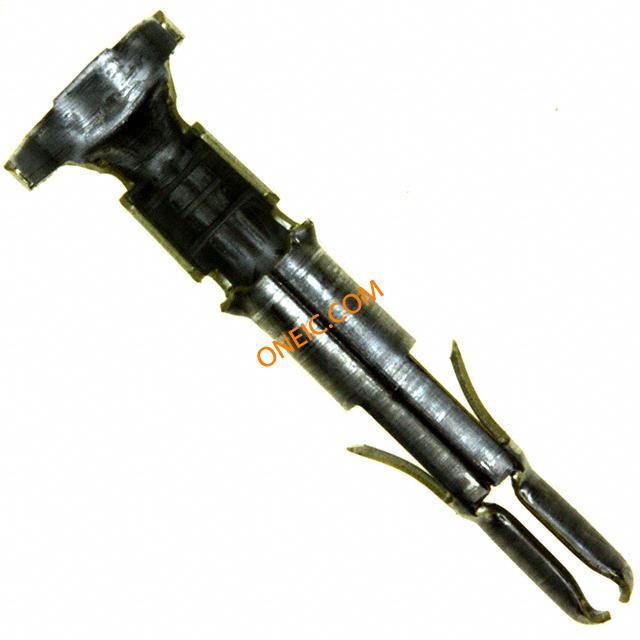

350707-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Mate-n-Lok,Contact,pin,0.50-2.00mm² Power to the Board UMNL SPLIT PIN 20-14 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP Mate-n-Lok,Contact,pin,0.50-2.00mm² TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UMNL SPLIT PIN 20-14 PTPBR L/P |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
电气参数
| 额定电压 | 600 V | 接触电阻 | 3.5mΩ |
| 最大额定电流 | 19 A | 最小供电电压 | 600VAC |
机械参数
| 深度 | 6.09 mm | 间距 | Not Required mm |
| 高度 | 6.09 mm | 重量 | 0 |
| 包装方式 | Bulk | 导线线规 | 14-20 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 安装类型 | Straight | 插针或插孔 | Split Pin |
| 连接器类型 | Connector Power | 接触镀层 | Pre-Tin |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 20.57 mm |
| 端接样式 | Quick Connect | 第一触头极性 | Pin (Male) |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 线规或范围 - AWG | 20-14 | ||
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 系列 | :Universal MATE-N-LOK | 产品子类型 | Contacts |
| 端口数 | 1 Port | 适用产品/相关产品 | :Universal MATE-N-LOK Connectors |
环境参数
| 可用温度范围 | -55to+105°C | 结工作温度 | 105°C |
