点击放大查看

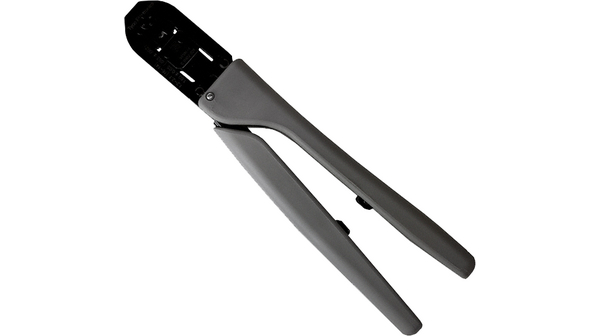

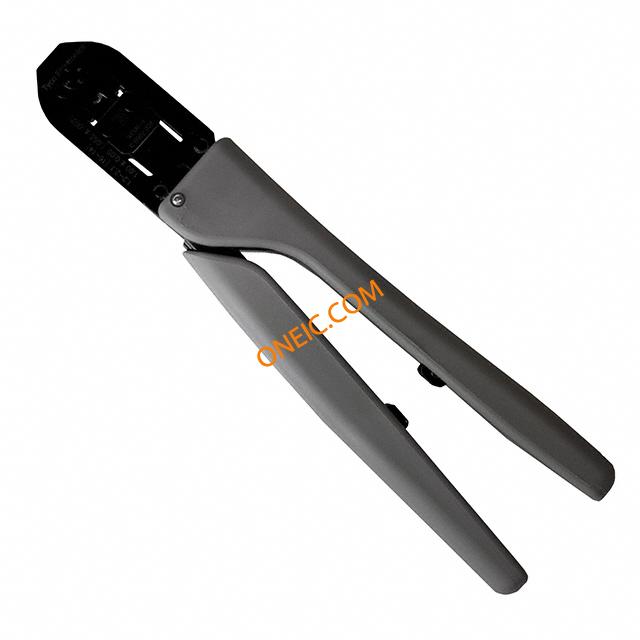

91506-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Straight Action Hand Tool Crimpers CERTICRIMP 2 SAHT UMNL 16-14 AWG TOOL CERTICRIMP 14-16AWG UMNL Crimper,SAHTRatchet,16-14AWG Crimper;SAHTRatchet;16-14AWG;UniversalMATE-N-LOKII;CERTI-CRIMPII Crimping tool, 91506-1, TE Connectivity CERTICRIMP 2,SAHT UMNL16-14 |
| 分类 |
商业参数
| 产品 | Crimpers | 产品类别 | Crimpers |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 零件状态 | TE Product Specification (114-) |
电气参数
| 输入功率 | 手动, 电气, 电池 | ||
机械参数
| 包装方式 | Bulk | 连接器类型 | Universal MATE-N-LOK |
| 连接器 - 电缆 | 开式压线筒 - F 压接 | 适用端子尺寸 | 16-14 AWG |
| 线规或范围 - AWG | 14 AWG | 线规或范围 - mm² | 16AWG |
产品信息
| 类型 | Hand Tool | 产品特性 | Side Entry, Ratchet |
| 工具类型 | Hand Crimper | 适配器系列 | 固定工具 |
| 工具类型/特性 | Premium Crimp Tooling | 其他规格 | 是 |
| 适用产品/相关产品 | Rectangular Contacts, 14-16 AWG | ||
相关型号

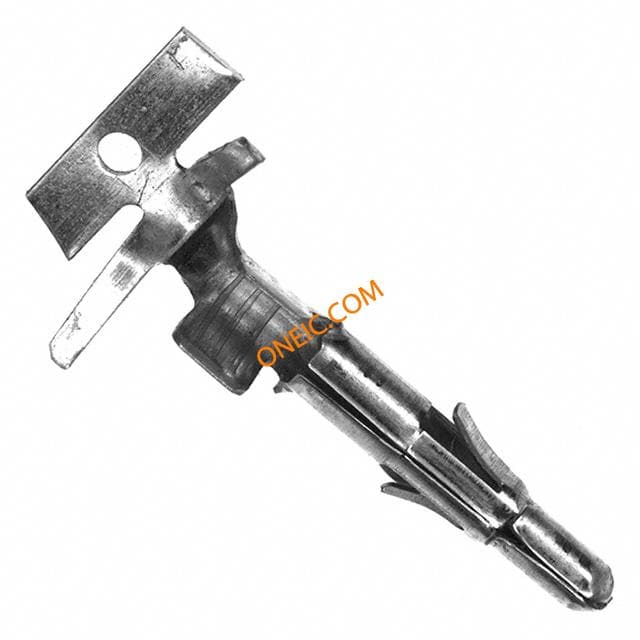

350873-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-18AWG TIN CRIMP Power to the Board PIN CONTACT 18-14 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 18-14AWG, CRIMP UNIVMATE-N-LOKSTRIP,UMNLPIN18-14.0126PTPBR TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UMNL PIN 18-14 .0126 PTPBR
47386
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers DAHT PIDG CRIMPER 22-16 AWG Hand Tools DAHT PIDG CRIMPER 22-16 AWG HAND TOOL PIDG 16-26AWG Connector Accessories PIDG Terminal and Splice Hand Tool (16-22)AWG CRIMP TOOL CERTI-CRIMP PIDG 22-16 DAHT
1-770249-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board II SKT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II SOK SN/AUNI/PHBZ LP

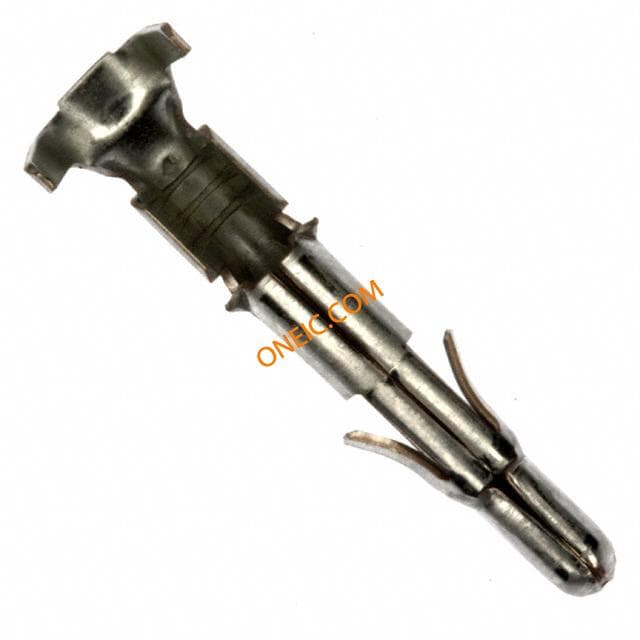

350918-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-18AWG TIN CRIMP Universal MATE-N-LOK Pin Contact 18-14 Power to the Board CONTACT PIN 14-18AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT,PIN,UNIVERSALMATE-N-LOK,18-14AWG Universal Mate-N-Lok Pre-Tin 18-14 AWG Pin Contact TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UMNL PIN 18-14 PTPPHBZ
350551-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.50-2.00mm² Power to the Board SKT 20-14 PHBR/AU Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVMATE-N-LOKLP,UMNLSOK20-14AU/PHBZL/P TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金触点 UMNL SOK 20-14 AU/PHBZ L/P
47387
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers 16-14AWG PIDG PLIER DAHT Hand Tools 16-14AWG PIDG PLIER DAHT TOOL HAND CRIMP PIDG 14-16 AWG CRIMP TOOL, PIDG, 16-14/20-16 AWG P.I.D.G. DAHT 16-14
90547-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PRO CRIMPER UNIV M-N-L ASSY PRO-CRIMPER UNIV M-N-L Crimper,Ratchet,20-14AWG,UniversalMNL HAND CRIMP TOOL, MATE-N-LOK PIN & SOCKET CONTACTS Crimper;Ratchet;20-14AWG;UniversalMATE-N-LOK;90547-2Die;PRO-CRIMPERIII Crimp tool, 90547-1, TE Connectivity

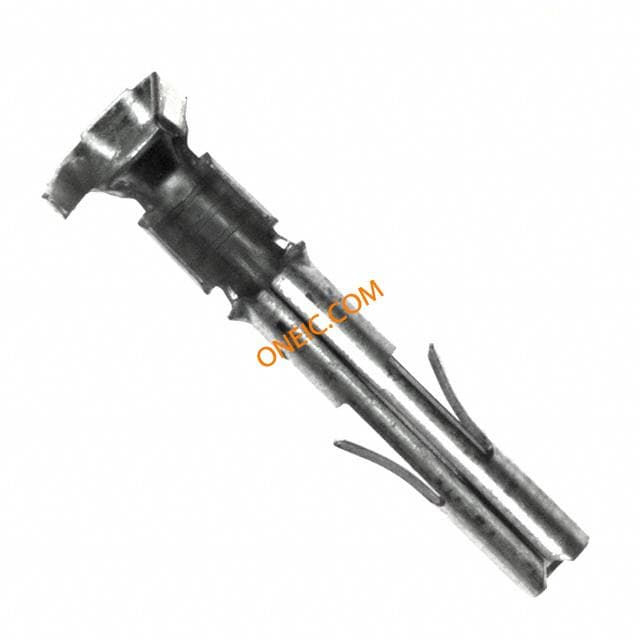

350919-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-18AWG TIN CRIMP Mate-n-Lok,Contact,socket,0.80-2.00mm² Power to the Board UNML SOCKET 18-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Contact;UniversalMATE-N-LOK;19A;600VAC;0.25in.;0.084in.;18-14AWG TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 UMNL SOK 18-14 PTPPHBZ

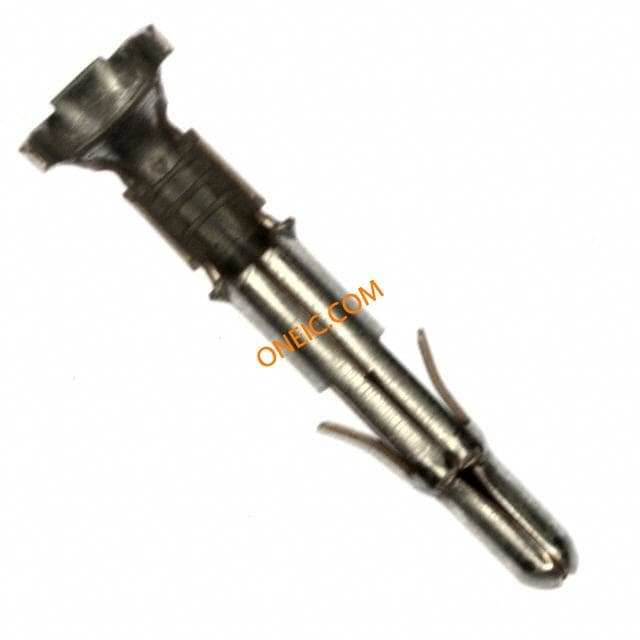

350552-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Contact, Pin, Mate-n-lok, 20-14 AWG Power to the Board PIN 20-14AWG BULK Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP UNIVMATE-N-LOKLP,UMNLPIN20-14PTPPHBZL/P TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UMNL PIN 20-14 PTPPHBZ L/P
46673
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers DAHT HAND TOOL STRATO 22-16 AWG TOOL HAND CRIMP STRATO 16-22AWG TE Connectivity CERTI-CRIMP 系列 STRATO-THERM 压接接线端子 压接工具 , 适用于22 → 16 AWG 线规格 DAHT W-DG STRATO 22-16
