1-770249-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board II SKT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II SOK SN/AUNI/PHBZ LP |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| 认证机构标志 | 是 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | ||
机械参数
| 镀层 | 锡 | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 导线线规 | 14-20 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 壳体镀层 | Nickel |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 包装数量 | 1000 | 端接样式 | Quick Connect |
| 第一触头极性 | Socket (Female) | 适用端子尺寸 | No |
| 接触件端接 | Crimp | 绝缘直径 | 3.3 – 5.08 mm [ .13 – .2 in ] |
| 兼容外壳尺寸（如TM-700等） | 标准通用 MATE-N-LOK（插针） | 触点镀层 | 哑光 |
| 接触件表面处理 - 配合 | 锡 | 法兰上方插针尺寸 | 2.18 mm [ .086 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 20-14 |
| 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] | ||
产品信息
| 连接器性别 | SKT | 产品子类型 | Contacts |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 120 °C [ -67 – 248 °F ] |
文档与媒体
相关型号

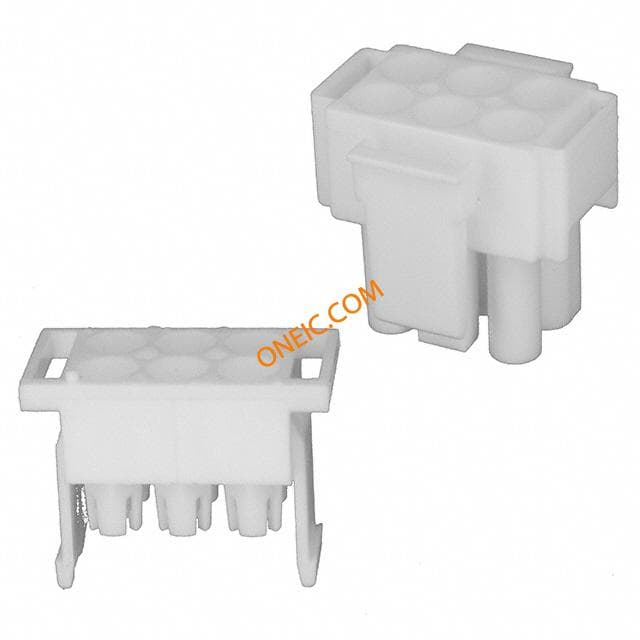

770020-1
te connectivity / amp
Conn Housing PL 6 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS UMNL-II (2PC) Housing,plug,kit,Mate-n-lokII,6Way Pin & Socket Connectors 6 MATRIX PLUG Conn Housing PL 6 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOKII;6;Plug;Nylon;White;31A Crimp housing Pitch6.35 mm Poles 6 MATE-N-LOK Universal, 770020-1, TE Connectivity TE Connectivity Universal MATE-N-LOK II 系列 2 行 6.35mm 节距 6 路 直 公 压接连接器外壳 06P UMNLII IN-LNE PLUG HSG KIT
770052-1
te connectivity / amp
Conn Housing RCP 6 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 6POS UNIV-MNL II Pin & Socket Connectors 06P UMNL II CAP REAR Conn Housing RCP 6 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL II CAP REAR 94VO
770056-1
te connectivity / amp
Conn Housing RCP 12 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 12POS UNIV-MNL II Pin & Socket Connectors 12 MATRIX CAR REAR Conn Housing RCP 12 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL II CAP REAR 94VO

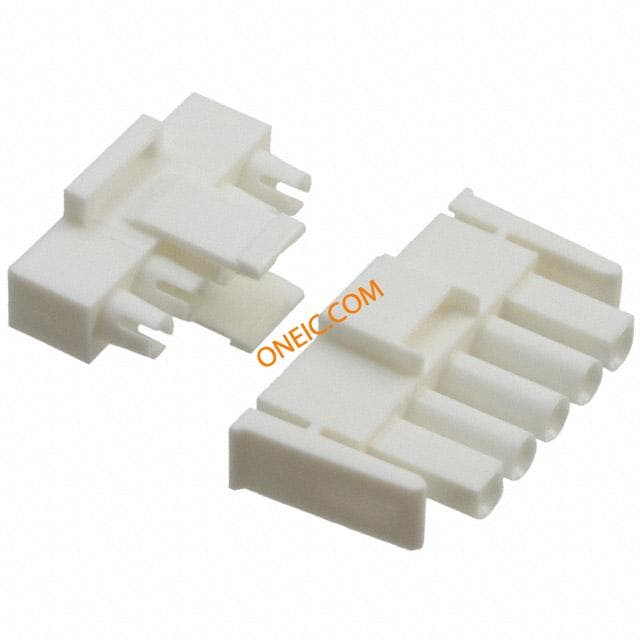

770016-1
te connectivity / amp
Conn Housing PL 5 POS 6.35mm Crimp ST .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5 POS UMNL-II (2PC) Pin & Socket Connectors 5P PLUG HOUSING Conn Housing PL 5 POS 6.35mm Crimp ST Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Plug;housing;Universal-Mate-N-LokII;In-Line;Kit 05P UMNLII IN-LNE PLUG HSG KIT

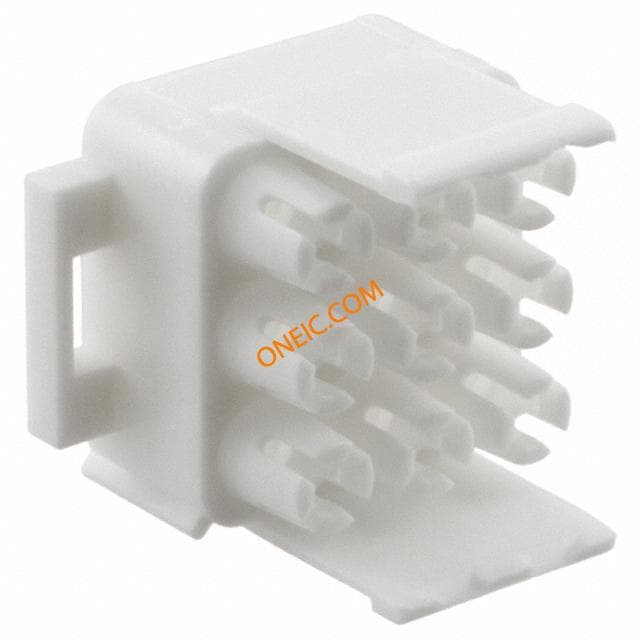

770054-1
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 9POS UNIV-MNL II Pin & Socket Connectors 09P CAP REAR 94VO Conn Housing RCP 9 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK II Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL II CAP REAR 94VO
770058-1
te connectivity / amp
Conn Housing RCP 15 POS 6.35mm ST Panel Mount Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 15POS UNIV-MNL II Pin & Socket Connectors 15P UMNL II CAP REAR 94VO 15P UMNL II CAP REAR 94VO
91508-1
te connectivity / amp
Straight Action Hand Tool Crimpers CERTICRIMP 2 SAHT UMNL 20-18 AWG TOOL CERTICRIMP 18-20AWG UMNL TOOLS, CRIMP Crimper;SAHTRatchet;20-18AWG;UniversalMATE-N-LOKII;CERTI-CRIMPII Crimping tool, 91508-1, TE Connectivity CERTICRIMP 2,SAHT UMNL20-18

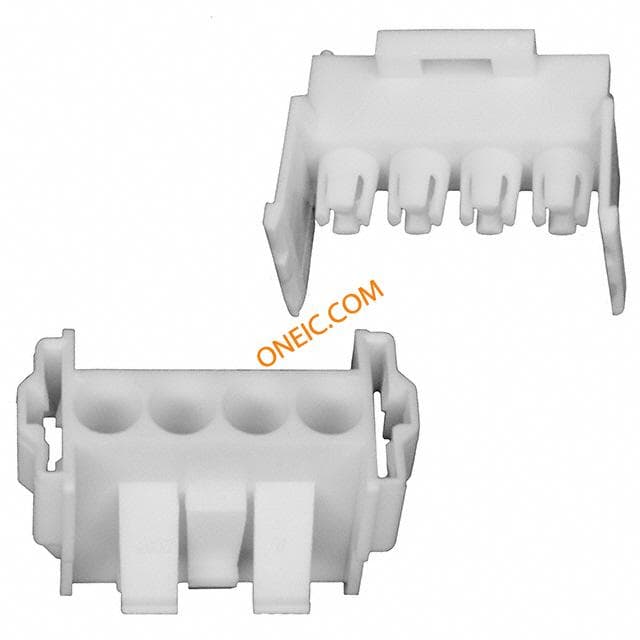

770026-1
