770046-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 6.35mm Crimp ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 2POS UNIV-MNL II Pin & Socket Connectors 02P CAP REAR 94VO Conn Housing RCP 2 POS 6.35mm Crimp ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK II Product LineIn-Line Contact Layout6.35 mm CenterlineNumber of Positions = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL II CAP REAR 94VO |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 VAC | 供电电压 | 600 |
| 最大额定电流 | 19 A | ||
机械参数
| 颜色 | White | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 触头类型 | Male or Female | 安装类型 | Straight |
| 连接器类型 | Receptacle, Rear Section | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 1 | 封装形式 | Receptacle |
| 高度（英寸） | .845 | 面板厚度 | .03 – .09 |
| 总宽度 | .54 | 壳体材料 | Nylon |
| 总长度 | .55 | 包装数量 | 1 |
| 端接样式 | 插针 | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 兼容外壳尺寸（如TM-700等） | 标准通用 MATE-N-LOK 连接器 |
| 典型触点布局 | 直插式 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mate-N-Lok II |
| 产品子类型 | Receptacle Housings | 装配配置 | Without |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 120 °C [ -67 – 248 °F ] |
文档与媒体
相关型号
770006-3
te connectivity / amp

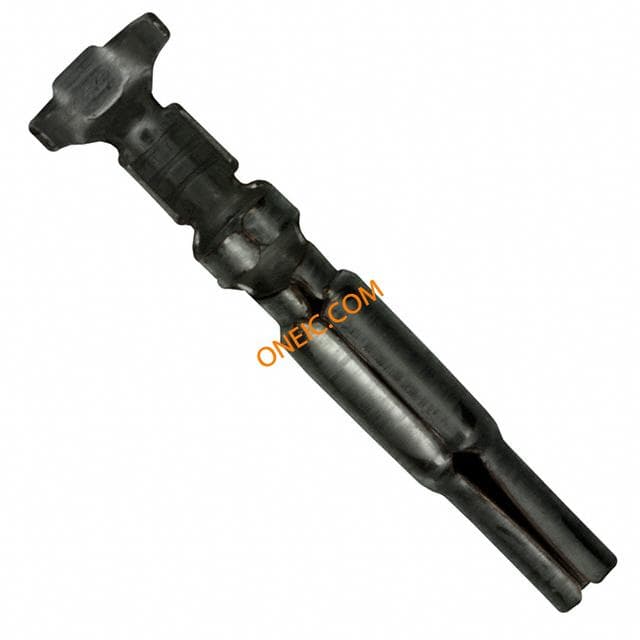

Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP Power to the Board SOCKET CONTACT REEL Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT,SOCKET,UNIVERSALMATE-N-LOKII,20-14AWG UMNL II SOK PTPPHBZ
770193-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors UMNL II GROUND PIN 14-20 AWG .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP TERM Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = GroundingWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II GROUND PIN 14-20 AWG
1-770005-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Pin & Socket Connectors 20-14 AWG PIN Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
1-770254-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Pin & Socket Connectors 20-14 AWG GROUND PIN LP DUPL BR Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK II Product LineTerminate To WireCrimp Termination MethodContact Type = PinSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II GROUND PIN LP DUPL BR
1-770007-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Mate-n-Lok II,Contact,pin,0.50-2.00mm² Power to the Board PIN 20-14 BR/AU 12000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Contact,SplitPin,UniversalMATE-N-LOKII,20-14AWG TE Connectivity Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL II PIN AUSN/NI/BR
1-770249-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board II SKT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II SOK SN/AUNI/PHBZ LP
770010-3
te connectivity / amp

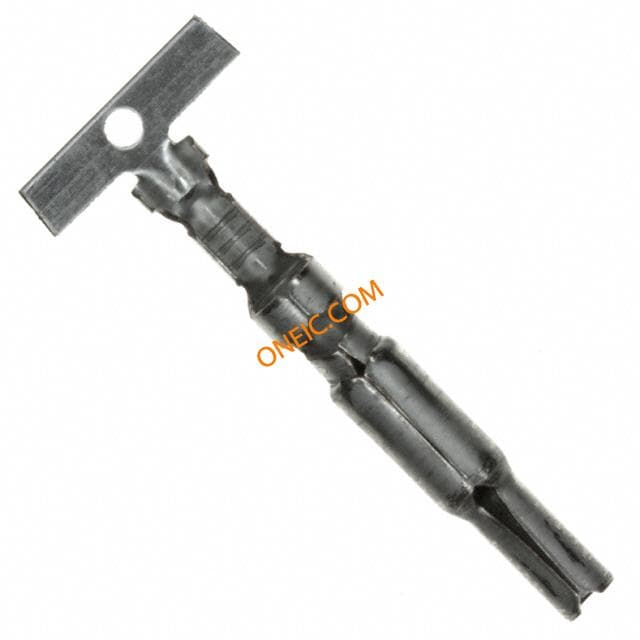

Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SCKT 18-24AWG PRE-TIN CRIMP Power to the Board SOCKET 24-18 REEL Conn Contact SKT 1 POS Crimp ST Cable Mount 1Terminal 1Port Strip Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Contact,Socket,UniversalMATE_N_LOKII,24-18AWG Universal MATE-N-LOK II 24-18 AWG Wire to Cable Crimp Socket Contact UMNL II SOK PTPPHBZ
770249-3
te connectivity / amp

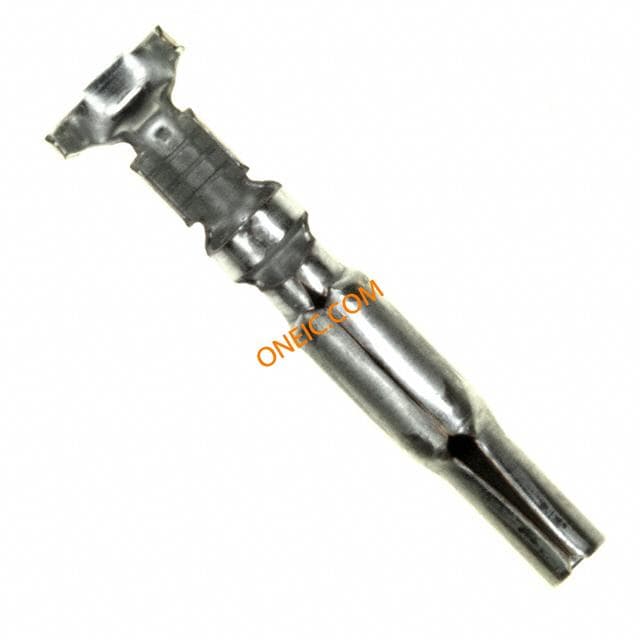

Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP MATE-N-LOK II Socket Contact tin24-18AWG Power to the Board SOCKET 20-14 TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Socket,for20-14AWG UMNL II SOK PTPPHBZ LP 12-14
1-770251-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board SOCKET 20-14 GOLD Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP CONTACT,SOCKET,UNIVERSALMATE-N-LOKII,20-14AWG MATE-N-LOK 20-14 AWG Wire to Cable Crimp Socket Contact UMNLII SOK PTPPHBZ LP LF 20-14
770248-1
te connectivity / amp

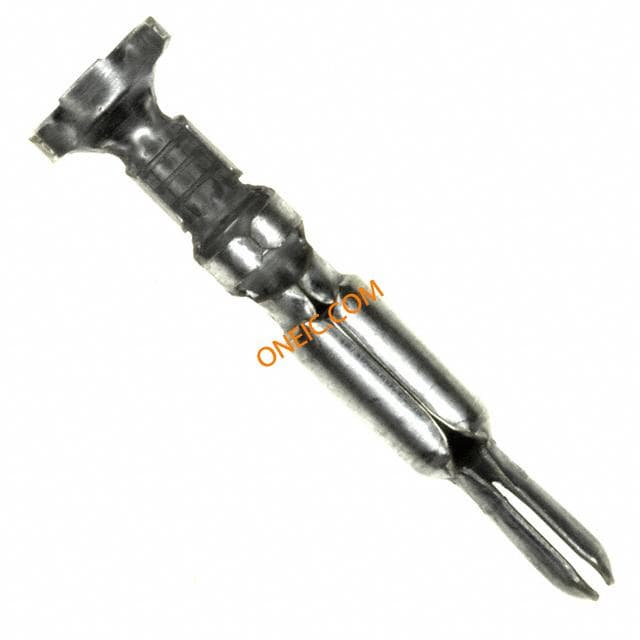

Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Contact male 20-14AWG UMNL II Pin & Socket Connectors PIN 20-14 TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Pin,for20-14AWG TE Connectivity MATE-N-LOK 系列 公 印刷电路板连接器触点, 压接, 镀锡触点 UMNL II PIN PTPBR LP 20-14AWG
1-770247-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 10-12AWG GOLD CRIMP Power to the Board SKT 12-10 PHBR/AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 3.00-6.00² [12-10] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVERSALMATE-N-LOKUMNLIISOKSN/AUNI/PHBZ UMNL II SOK SN/AUNI/PHBZ LP
770005-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP
1-770004-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 10-12AWG GOLD CRIMP Power to the Board UMNLII SKT 12-10 PHBR/AU 1-770004-0 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK II Product LineContact Gender = SocketTerminate To WireCrimp Termination MethodSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVERSALMATE-N-LOKUMNLIISOKSN/AUNI/PHBZ Contact; female; 3÷6mm2; Universal MATE-N-LOK II; gold plated UMNL II SOK SN/AUNI/PHBZ
770246-3
te connectivity / amp

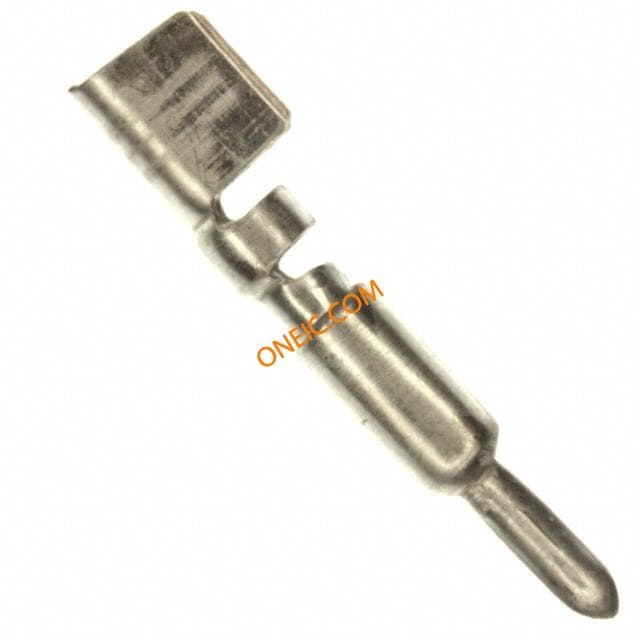

Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 10-12AWG TIN CRIMP MATE-N-LOK II Pin Contact tin 12-10 AWG Power to the Board PIN 12-10 TIN Conn Contact M 1 POS Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 3.00-6.00² [12-10] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Pin,for12-10AWG UMNL II PIN PTPPHBZ LP 12-10
770253-3
te connectivity / amp

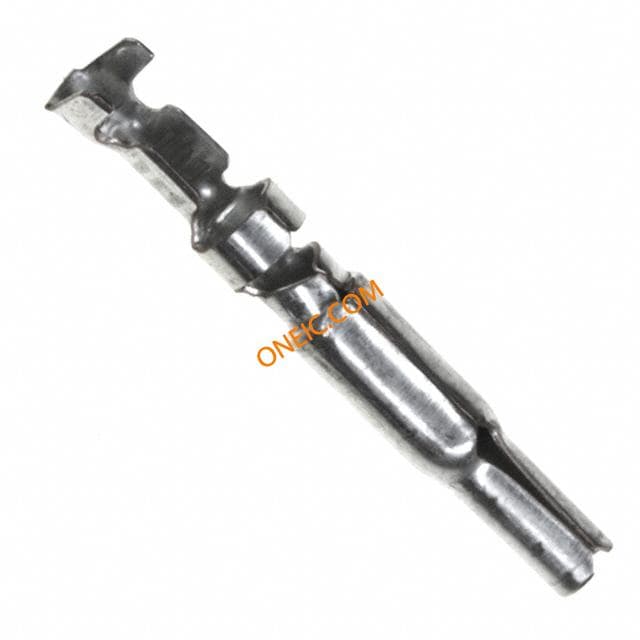

Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SCKT 18-24AWG PRE-TIN CRIMP MATE-N-LOK II Pin Contact tin 24-18 AWG Power to the Board SOCKET 24-18 TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Socket,for24-18awg UMNL II SOK PTPPHBZ LP 24-18
770250-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Contact Crimp Pin 20-14AWG Mate-n-Lok Pin & Socket Connectors PIN 20-14 TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Pin,for20-14AWG TE Connectivity Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡触点 UMNL II PIN PTPBR LP 20-14
1-770250-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board PIN 20-14 GOLD Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP CONTACT,SPLITPIN,UNIVERSALMATE-N-LOKII,20-14AWG UMNL II PIN SN/AUNI/BR LP20-14
770254-2
TE Connectivity / AMP
ピン & ソケットコネクタ UMNL II GROUND PIN LP DUPL BR .250" Centerline, 600 V, 19 - 36 A max CONN PIN GRND 14-20AWG AU CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = GroundingWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
770004-4
te connectivity / amp

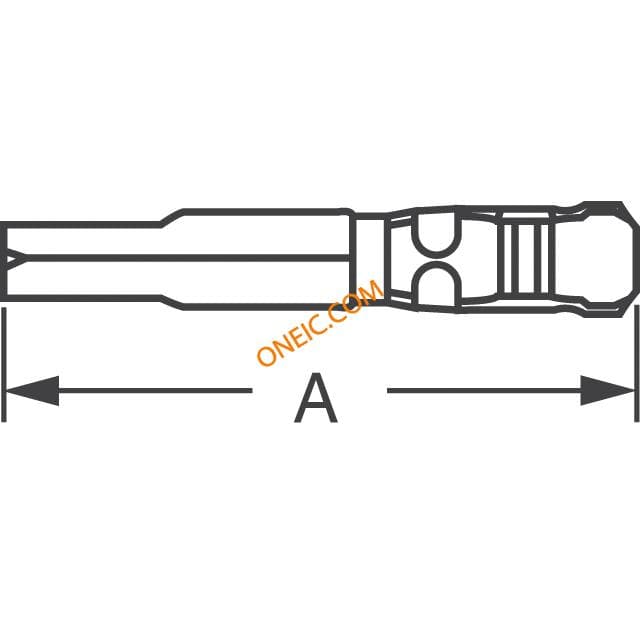

Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 10-12AWG GOLD CRIMP Power to the Board SOCKET CONTACT 9000 Conn Contact SKT 1 POS Crimp ST Cable Mount Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 3.00-6.00² [12-10] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II SOK SN/AUNI/PHBZ
