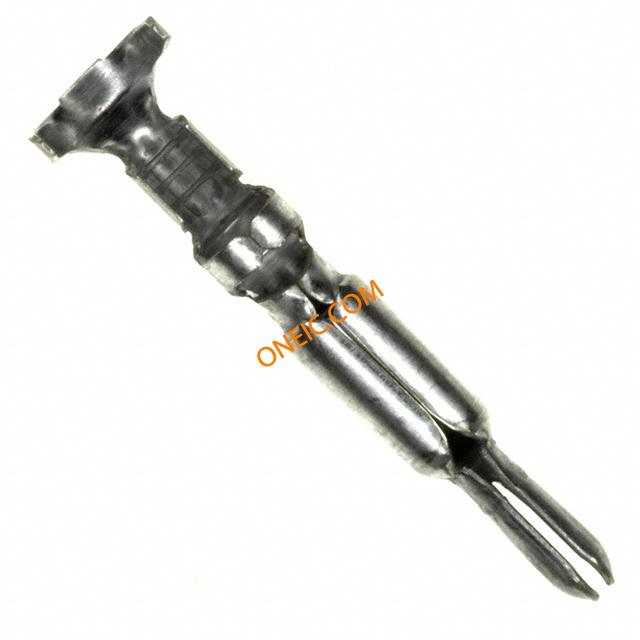

770248-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Contact male 20-14AWG UMNL II Pin & Socket Connectors PIN 20-14 TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Pin,for20-14AWG TE Connectivity MATE-N-LOK 系列 公 印刷电路板连接器触点, 压接, 镀锡触点 UMNL II PIN PTPBR LP 20-14AWG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 深度 | 5.97 mm | 间距 | Not Required mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线线规 | 14-20 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Split Pin |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 25.27 mm |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 线规或范围 - AWG | 20-14 | ||
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 系列 | MATE-N-LOK | 产品子类型 | Contacts |
| 适用产品/相关产品 | Automotive Connector | ||
