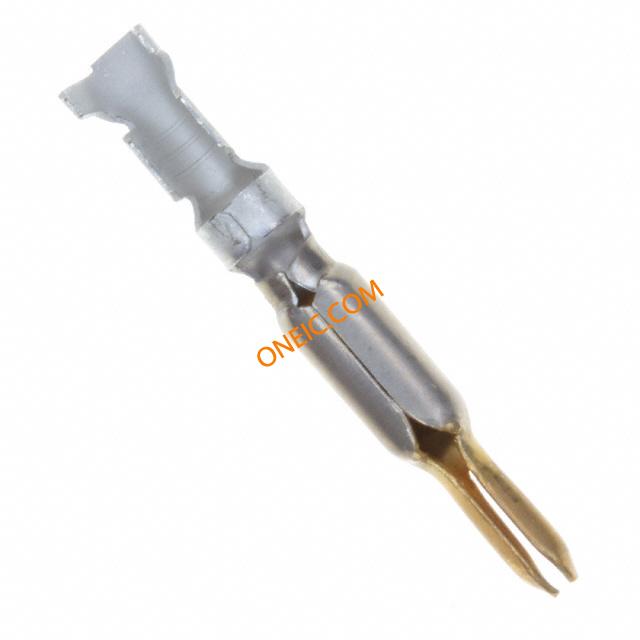

1-770250-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board PIN 20-14 GOLD Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 20-14AWG, CRIMP CONTACT,SPLITPIN,UNIVERSALMATE-N-LOKII,20-14AWG UMNL II PIN SN/AUNI/BR LP20-14 |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 4.19 mm | 间距 | Not Required mm |
| 高度 | 4.7 mm | 重量 | 0.00045 |
| 包装方式 | Bulk | 导线线规 | 14-20 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 安装类型 | Straight | 插针或插孔 | Split Pin |
| 连接器类型 | Connector Power | 接触镀层 | Pre-Tin Over Nickel |
| 安装样式 | Cable | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 25.91 mm |
| 端接样式 | Quick Connect | 第一触头极性 | Pin (Male) |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 20-14 |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | :Universal MATE-N-LOK II | 产品子类型 | Contacts |
| 端口数 | 1 Port | 适用产品/相关产品 | :Universal MATE-N-LOK II Housings |
环境参数
| 工作温度 | -55C to 120C | 结工作温度 | 120C |
文档与媒体
相关型号
