770193-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors UMNL II GROUND PIN 14-20 AWG .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP TERM Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = GroundingWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II GROUND PIN 14-20 AWG |
| 分类 |
商业参数
| 其他名称 | A100819CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| 认证机构标志 | 是 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | ||
机械参数
| 间距 | 0.25 mm | 镀层 | 预镀锡 |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 导线线规 | 14-20 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Pin |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 安装样式 | Wire | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 包装数量 | 3500 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 适用端子尺寸 | No | 接触件端接 | Crimp |
| 绝缘直径 | 1.52 – 3.3 mm [ .06 – .13 in ] | 兼容外壳尺寸（如TM-700等） | 标准通用 MATE-N-LOK（插座） |
| 接触件表面处理 - 配合 | 预镀锡 | 法兰上方插针尺寸 | 2.13 mm [ .084 in ] |
| 线规或范围 - AWG | 20-14 | ||
产品信息
| 连接器性别 | PIN | 系列 | Mate-N-Lok |
| 产品子类型 | Contacts | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 120 °C [ -67 – 248 °F ] |
文档与媒体
相关型号
770020-1
te connectivity / amp
Conn Housing PL 6 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS UMNL-II (2PC) Housing,plug,kit,Mate-n-lokII,6Way Pin & Socket Connectors 6 MATRIX PLUG Conn Housing PL 6 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOKII;6;Plug;Nylon;White;31A Crimp housing Pitch6.35 mm Poles 6 MATE-N-LOK Universal, 770020-1, TE Connectivity TE Connectivity Universal MATE-N-LOK II 系列 2 行 6.35mm 节距 6 路 直 公 压接连接器外壳 06P UMNLII IN-LNE PLUG HSG KIT
770052-1
te connectivity / amp
Conn Housing RCP 6 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 6POS UNIV-MNL II Pin & Socket Connectors 06P UMNL II CAP REAR Conn Housing RCP 6 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL II CAP REAR 94VO
770056-1
te connectivity / amp
Conn Housing RCP 12 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 12POS UNIV-MNL II Pin & Socket Connectors 12 MATRIX CAR REAR Conn Housing RCP 12 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL II CAP REAR 94VO
770016-1
te connectivity / amp
Conn Housing PL 5 POS 6.35mm Crimp ST .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 5 POS UMNL-II (2PC) Pin & Socket Connectors 5P PLUG HOUSING Conn Housing PL 5 POS 6.35mm Crimp ST Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 5Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Plug;housing;Universal-Mate-N-LokII;In-Line;Kit 05P UMNLII IN-LNE PLUG HSG KIT
770054-1
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 9POS UNIV-MNL II Pin & Socket Connectors 09P CAP REAR 94VO Conn Housing RCP 9 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK II Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL II CAP REAR 94VO
770058-1
te connectivity / amp
Conn Housing RCP 15 POS 6.35mm ST Panel Mount Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 15POS UNIV-MNL II Pin & Socket Connectors 15P UMNL II CAP REAR 94VO 15P UMNL II CAP REAR 94VO
770023-1
te connectivity / amp

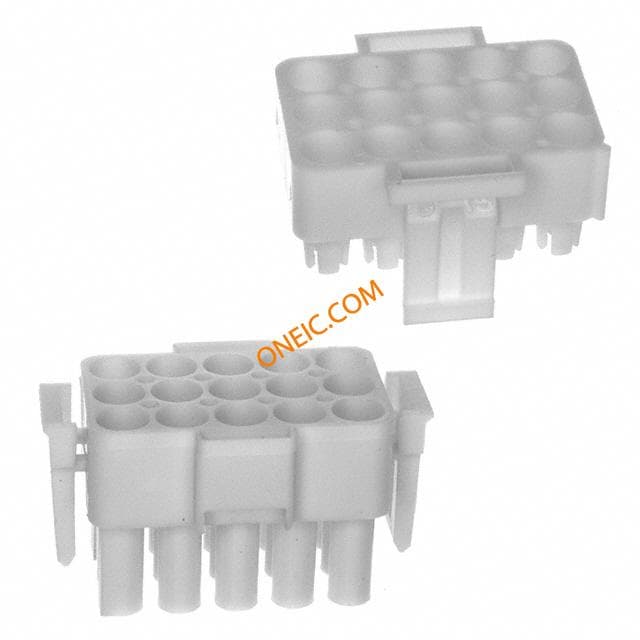

Conn Housing PL 15 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UMNL-II (2PC) Housing,plug,kit,Mate-n-lokII,15Way Pin & Socket Connectors 15 MATRIX PLUG Conn Housing PL 15 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOKII;15;Plug;Nylon;White;31A Crimp housing Pitch6.35 mm Poles 15 MATE-N-LOK Universal, 770023-1, TE Connectivity TE Connectivity Universal MATE-N-LOK II 系列 3 行 6.35mm 节距 15 路 直 公 压接连接器外壳 15P UMNLII IN-LNE PLUG HSG KIT
