1-350848-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 12 POS 6.35mm ST Cable Mount 12 Terminal 1 Port Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN TEST PLUG 12POS UNIV M-N-L Power to the Board 12P PLUG TEST 94VO .250" Centerline, 600 V, 19 - 36 A max Product Highlights:Test ConnectorUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PLUG TEST ASSY 94VO |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 供电电压 | 600 | 最大额定电流 | 5 |
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线类型 | Discrete | 排间距 | 0.250" (6.35mm) |
| 触头类型 | Male Pin | 安装类型 | Cable Mount |
| 连接器类型 | Plug | 接触镀层 | Tin |
| 紧固类型 | Latch Lock | 引脚数 | 12 |
| 排数 | 4 | 封装形式 | Plug |
| 壳体材料 | 尼龙 | 包装数量 | 1 |
| 面板安装类型 | 不带 | 电缆端接方式 | Crimp |
| 端接样式 | 插针 | 位数 | 12 |
| 兼容外壳尺寸（如TM-700等） | 通用 MATE-N-LOK 插座 | 接触件表面处理 - 配合 | 预镀锡 |
| 典型触点布局 | 直插式 | ||
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 产品子类型 | 连接器组件 | 应用细节 | Power |
| 装配配置 | Without | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号

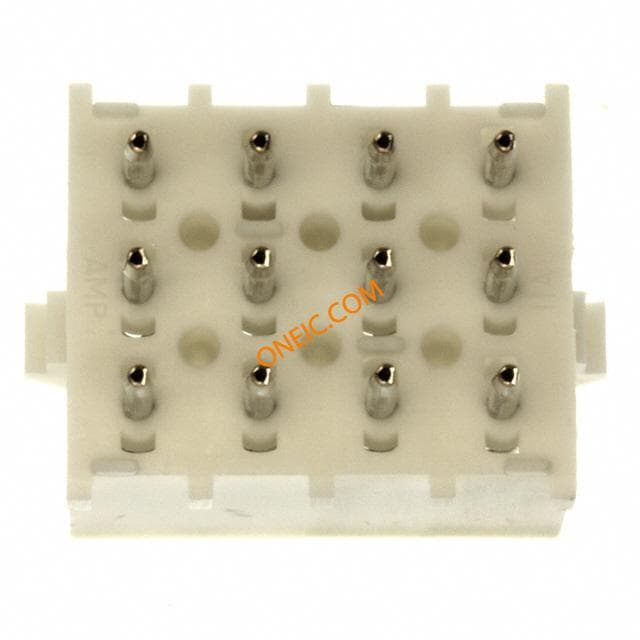

350836-1
te connectivity / amp
Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN Pin & Socket Connectors 12P HDR ASSY PC 94V0 Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL HDR ASSY PC 94VO
350829-1
te connectivity / amp
Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN MATE-N-LOK 12 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac/dc Pin & Socket Connectors 12P VERT. SKT HEADER Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Socket;12Pos;UnivMATE-N-LOK;Vertical;White Socket; wire-wire/PCB; female; 6.35mm; PIN:12; 19A; UL94V-0; THT TE Connectivity Universal MATE-N-LOK 系列 12路 直 6.35mm节距 通孔 公 印刷电路板插座, 功率 12P UMNL HDR ASSY PC 94VO

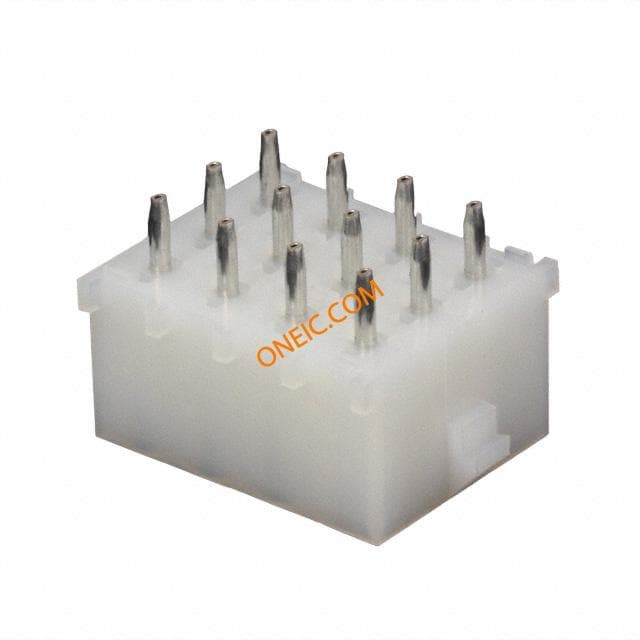

350991-4
