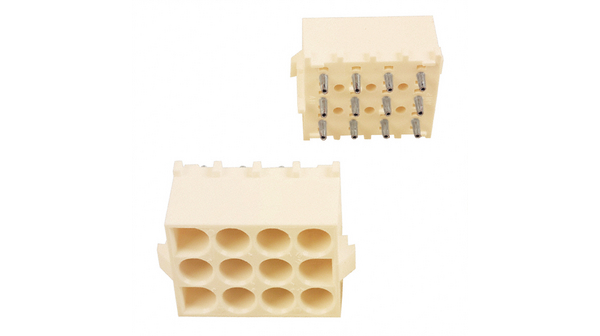

350764-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN Power to the Board 12 POS STD TAIL SOC Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOK;12;Nylon;Natural;19A;600VAC Socket header Pitch6.35 mm Poles 12 MATE-N-LOK Universal, 350764-4, TE Connectivity 12P UMNL HDR ASSY PC |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 75 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94 V-2 | ||
电气参数
| 电容 | 26.67 | 测试电压 | 5000 |
| 额定电压 | 600 V | 极数 | 12 |
| 供电电压 | 600 | 最大额定电流 | 19 A |
| 绝缘电阻 | 1000 MOhm | 最小供电电压 | 600VDC/600VAC |
机械参数
| 颜色 | Natural | 深度 | 20.32 mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 排间距 | 0.250" (6.35mm) | 端接方式 | Solder |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 引脚间距 | 0.250" (6.35mm) | 安装类型 | Through Hole |
| 连接器类型 | Header | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 引脚数 | 12 | 排数 | 3 |
| 封装形式 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 26.67 mm |
| 包装数量 | 75 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | 插座 | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 绝缘直径 | .18 |
| 位数 | 12 | 第一连接器极性 | Female |
| 兼容外壳尺寸（如TM-700等） | 与插头护套插接（使用插针端子） | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 预镀锡 | 典型触点布局 | 矩阵 |
| 端子柱长度 | 3.18 mm [ .125 in ] | 接触镀层厚度 | 2.54 µm [ 100 µin ] |
| 静电放电屏蔽 | 不带 | 每排/每行位置数 | All |
| 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] | ||
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | Universal MATE-N-LOK, AMP | 产品子类型 | Headers |
| 端口数 | 1 Port | 连接方式 | Wire-Board |
| 输出配置 | Through Hole | 应用细节 | Power |
| 装配配置 | Without | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55...+85 °C |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
文档与媒体
