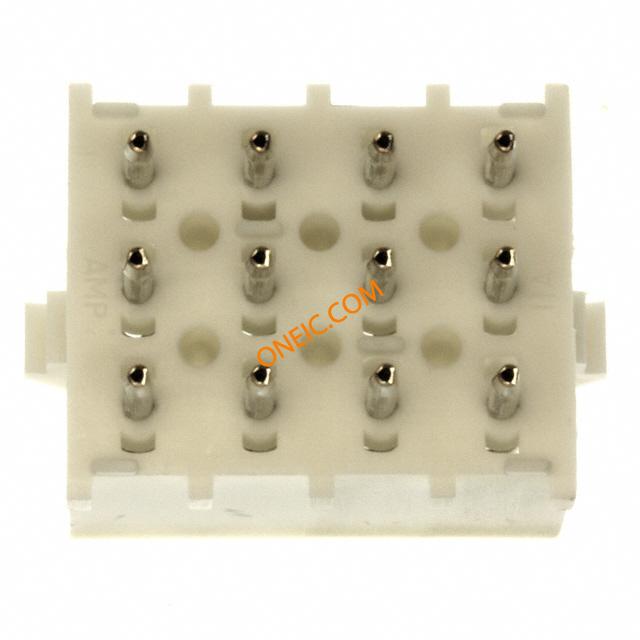

350836-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN Pin & Socket Connectors 12P HDR ASSY PC 94V0 Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL HDR ASSY PC 94VO |
| 分类 |
商业参数
| 其他名称 | A25280 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | 最小供电电压 | 600VDC/600VAC |
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 宽度 | 20.32 | 高度 | 14.73 mm |
| 长度 | 26.67 mm [ 1.05 in ] | 密封型 | Not Sealed |
| 包装方式 | Bulk | 排间距 | 0.250" (6.35mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Header |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | PCB | 引脚数 | 12 |
| 排数 | 3 | 封装形式 | Plug |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 包装数量 | 75 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 位数 | 12 |
| 兼容外壳尺寸（如TM-700等） | 与插头护套插接（使用插针端子） | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 端子柱长度 | 5.08 mm [ .199 in ] |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 产品子类型 | Receptacle Housings | 端口数 | 1 Port |
| 应用细节 | Power | 装配配置 | Without |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| 封装热阻 | .125 mm [ 3.18 in ] | ||
文档与媒体
相关型号
