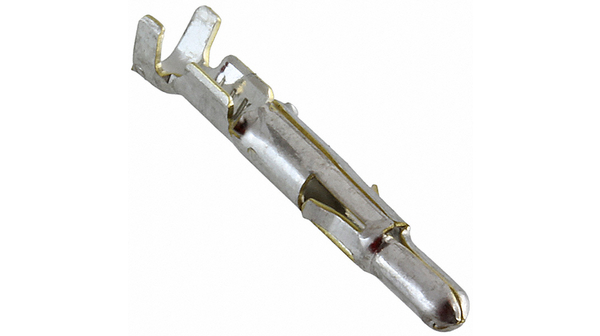

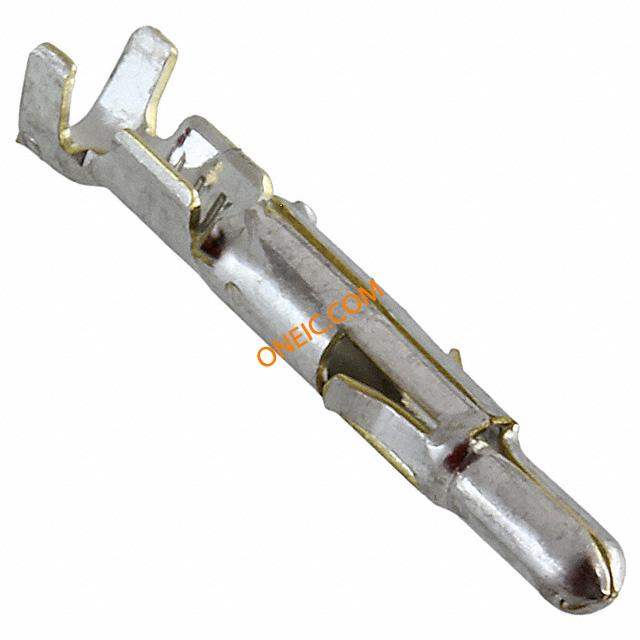

926896-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONTACT PIN MAT-N-LOK 18-24AWG Mate-N-Lok pin contact,24-18awg Power to the Board PIN 24-18 AWG 926896-1 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP PIN, MATE-N-LOK, PK100 Mate-N-Lokpincontact,24-18awg Contact; male; 0.2÷0.8mm2; Universal MATE-N-LOK; tinned; crimped CONTACT 18-24AWG Crimp pin Male 18...24 AWG, 926896-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 压接接线端子, 镀锡触点 UNIV.M-N-L.PIN |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 接触电阻 | 3.5mΩ |
| 最大额定电流 | 19 A | ||
机械参数
| 重量 | 0.032 | 镀层 | Tin |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线线规 | 18-24 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 柱间距 | 6.35mm |
| 安装类型 | crimped | 插针或插孔 | Pin |
| 电缆直径 | 1...2.5mm | 连接器类型 | Connector Power |
| 接触镀层 | Pre-Tin | 安装样式 | for cable |
| 触头材料 | Brass | 包装数量 | :100 |
| 连接器 - 电缆 | contact | 端接样式 | Solder Tail |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Tin |
| 接触件端接 | Crimp | 绝缘直径 | :2.5mm |
| 线规或范围 - AWG | 24-18 | 线规或范围 - mm² | :0.8mm² |
| 触点材料 - 镀层 | tinned | 外径-未扩张 | :2.5mm |
产品信息
| SPG | 1324 | 连接器性别 | PIN |
| 系列 | Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 产品子类型 | Contacts | 适配器系列 | Universal MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | :Universal MATE-N-LOK Connectors |
环境参数
| 防护等级 | IP56 for 1,52...2,79mm cable, IP57 for 2,79...3,3mm cable | 可用温度范围 | -55to+105°C |
| 结工作温度 | 105°C | ||
