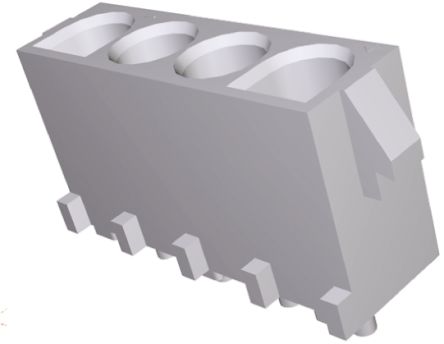

350430-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 AU MATE-N-LOK 4 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors HEADER VERT 4 POS 100 Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HDR,PLUG,VERTICAL,4PIN TE Connectivity MATE-N-LOK 系列 6.35mm节距 4路 直 PCB 针座, 焊接端接, 19A , 通孔 |
| 分类 |
商业参数
| 其他名称 | A1471 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 1 |
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 600 V ac | 最大额定电流 | 19A |
机械参数
| 颜色 | Natural | 间距 | 0.250" (6.35mm) |
| 包装方式 | Bulk | 方向 | 直 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 端接排数 | 焊接 | 第一触头极性 | Pin (Male) |
| 触点数 | 4 | 位数 | 4 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Power | 连接器性别 | Male |
| 系列 | MATE-N-LOK | 产品子类型 | Headers |
| 加载位置数 | All | ||
