350792-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 TIN MATE-N-LOK 4 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 4 POS STD TAIL PIN Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, VERTICAL, SINGLE ROW, 4 WAY HEADERASSEMBLY,PIN,UNIVERSALMATE-N-LOK,4POSITION,PCB,POSITIVELOCK Socket; wire-wire/PCB; male; 6.35mm; PIN:4; 19A; UL94V-0; THT TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 4路 直 PCB 针座, 焊接端接, 19A , 通孔 04P UMML PIN HDR ASSY 94VO |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V ac |
| 工作电压 | :600V | 接触电阻 | :3.5mohm |
| 最大额定电流 | 19A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 深度 | 7.62 mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 重量 | 0.002 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 方向 | straight |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 6.35mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 1 | 锁定特性 | lock |
| 材料表面处理 | :- | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 26.67 mm |
| 包装数量 | 100 | 主要材料 | InterconnectSystem |
| 连接器 - 电缆 | socket | 第一触头极性 | Pin (Male) |
| 触点数 | 4 | 接触件端接 | :Through Hole Vertical |
| 位数 | 4 | 安装孔直径 | :1.8mm |
| 第一连接器安装特征 | 1x4 | ||
产品信息
| SPG | 100 | 类型 | Power |
| 连接器性别 | HDR | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Receptacle Housings | 适配器系列 | Universal MATE-N-LOK |
| 端口数 | 1 Port | 单元数量 | 1 |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
文档与媒体
相关型号
1-480702-1
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS UNIV-M-N-L BROWN Power to the Board PLUG HOUSE 4 POS BROWN UL94V-2 Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 04P UMNL PLUG HSG BRN
1-480702-2
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 4POS 94V-2 RED Pin & Socket Connectors 4P PLUG HSG RED Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 04P UMNL PLUG HSG RED
350779-1
te connectivity / amp
Conn Housing PL 4 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS 94V-0 UNI-MATE 4 way white plug housing Pin & Socket Connectors PLUG HOUSE. 4 POS. Conn Housing PL 4 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 4WAY Connector,SoftShell;UniversalMATE-N-LOK;4;Plug;Nylon;White;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:4; 600V Crimp housing Pitch6.35 mm Poles 4 MATE-N-LOK Universal, 350779-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 4 路 直 公 压接连接器外壳 04P UMNL PLUG HSG
794274-1
te connectivity / amp

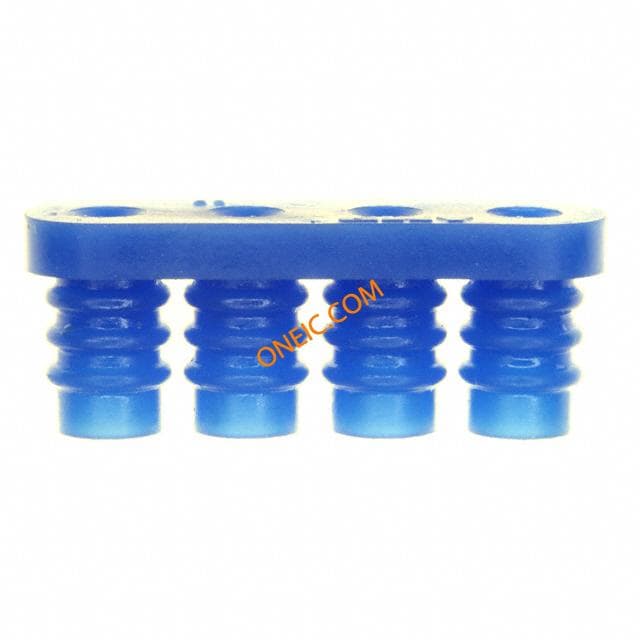

Connector Accessories Seal Protector 4 POS Silicon Rubber Blue .250" Centerline, 600 V, 19 - 36 A max CONN WIRE SEAL 4POS UMNL BLUE universal mate-n-lok 4 way wire seal Power to the Board SPLASH PROOF SEAL 4P Wire Connector Accessories Seal Protector 4 POS Silicon Rubber Blue Product Highlights:Seal ProtectorUniversal MATE-N-LOKNot CompactPCINumber of Circuits = 4In-Line Contact LayoutSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP WIRE SEAL, 4WAY Connector,SoftShell;UniversalMATE-N-LOK;4;19;600;SiliconRubber;Blue Seal for wire; 6.35mm; PIN:4; Pin layout:1x4; Gasket: silicone Wire seal, 794274-1, TE Connectivity TE Connectivity MATE N LOK系列 IP56 硅酮 电线密封 04P UMNL WIRE SEAL
