643230-1

点击放大查看

643230-1

制造商
TE Connectivity Ltd.

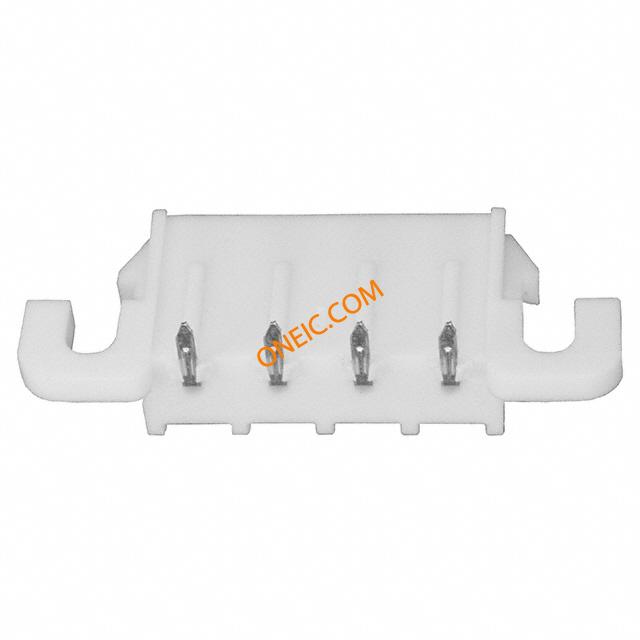

描述Conn Power SKT 4 POS 6.35mm Solder RA Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS RTANG .250 TIN MATE-N-LOK 4 Male Right Angle Heavy Duty Power Connector, Through Hole 19A,600V ac/dc Power to the Board HDR ASSY 4 POS R/A Conn Power SKT 4 POS 6.35mm Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,04PUMNLHDRASSYR/A94VO TE Connectivity Universal MATE-N-LOK 系列 4路 直角 6.35mm节距 通孔 公 印刷电路板插座, 功率 04P UMNL HDR ASSY R/A 94VO
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

产品类别Power to the Board标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0认证机构标志是

电气参数

额定电压600 V ac/dc供电电压600
最大额定电流19A最小供电电压600VDC/600VAC

机械参数

颜色Natural深度17.27 mm
间距6.35 mm高度9.14 mm
密封型Not Sealed包装方式Bulk
方向直角端接方式Solder
触头类型Female Socket安装类型Through Hole
连接器类型Header接触镀层Tin
紧固类型Locking Ramp安装样式Through Hole
引脚数4排数1
封装形式Receptacle触头材料Phosphor Bronze
壳体材料Polyamide (PA)总长度44.32 mm
安装特性安装孔包装数量140
面板安装类型通孔 - 焊接主要材料InterconnectSystem
端接排数焊接端接样式插座
第一触头极性Socket (Female)触点数4
位数4兼容外壳尺寸（如TM-700等）与插头护套插接（使用插针端子）
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局直插式端子柱长度3.7 mm [ .146 in ]
静电放电屏蔽不带

产品信息

类型Power连接器性别SKT
系列MATE-N-LOKCAD图纸3D CAD Model
制造商全称MATE-N-LOK产品子类型Headers
端口数1 Port应用细节Power
装配配置Without加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-40 – 105 °C [ -40 – 221 °F ]
封装热阻3.18 mm [ .125 in ]

文档与媒体

在线文档
643230-1?RQPN=643230-1

相关型号

1-480702-1

1-480702-1

te connectivity / amp

Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS UNIV-M-N-L BROWN Power to the Board PLUG HOUSE 4 POS BROWN UL94V-2 Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 04P UMNL PLUG HSG BRN
