643416-1

点击放大查看

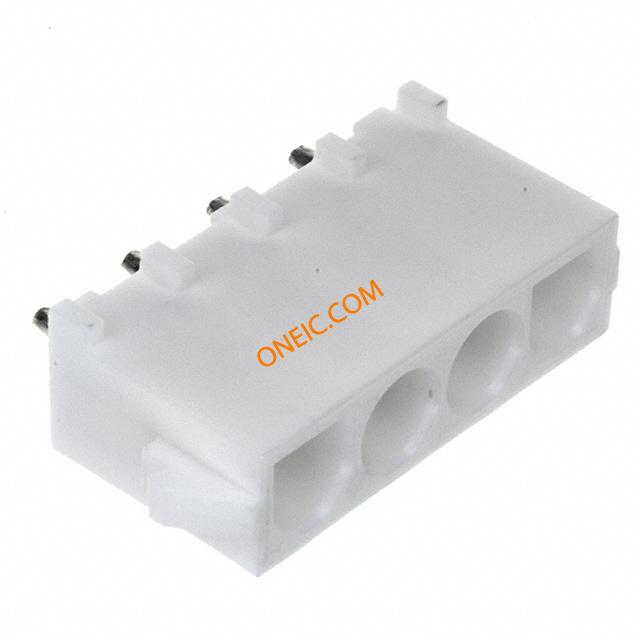

643416-1

制造商
TE Connectivity Ltd.
描述Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 TIN Pin & Socket Connectors 4P PCB VERT HEADER Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,04PUMNLHDRASSYPOL94VO TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 4路 (1排) 直 印刷电路板插座, 焊接端接, 12A , 通孔 04P UMNL HDR ASSY POL 94VO
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0认证机构标志是

电气参数

额定电压600 V供电电压600
最大额定电流19 A最小供电电压600VDC/600VAC

机械参数

颜色White间距6.35 mm
宽度20.67高度14.73 mm
长度26.67密封型Not Sealed
包装方式Bulk壳体颜色白色
方向直端接方式Solder
触头类型Female Socket安装类型Through Hole
连接器类型Header接触镀层Tin
紧固类型Locking Ramp安装样式Through Hole
引脚数4排数1
封装形式Receptacle高度（英寸）7.62
触头材料Phosphor Bronze壳体材料Polyamide (PA)
包装数量100面板安装类型通孔 - 焊接
主要材料InterconnectSystem端接排数焊接
端接样式插座第一触头极性Socket (Female)
触点数4位数4
兼容外壳尺寸（如TM-700等）与插头护套插接（使用插针端子）安装孔直径带有
接触件表面处理 - 配合预镀锡典型触点布局直插式
端子柱长度3.81 mm [ .149 in ]静电放电屏蔽不带

产品信息

类型Power连接器性别SKT
系列Universal Mate-N-Lok产品特性Board Guide
制造商全称MATE-N-LOK产品子类型PCB Receptacles
端口数1 Port应用细节Power
装配配置Without加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-40 – 105 °C [ -40 – 221 °F ]
封装热阻3.18 mm [ .125 in ]

文档与媒体

在线文档
643416-1?RQPN=643416-1

相关型号

1-480702-1

1-480702-1

te connectivity / amp

Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS UNIV-M-N-L BROWN Power to the Board PLUG HOUSE 4 POS BROWN UL94V-2 Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 04P UMNL PLUG HSG BRN
