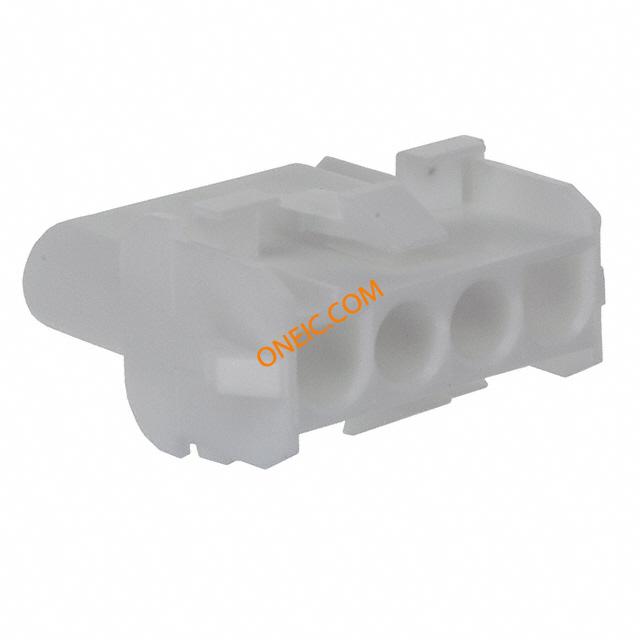

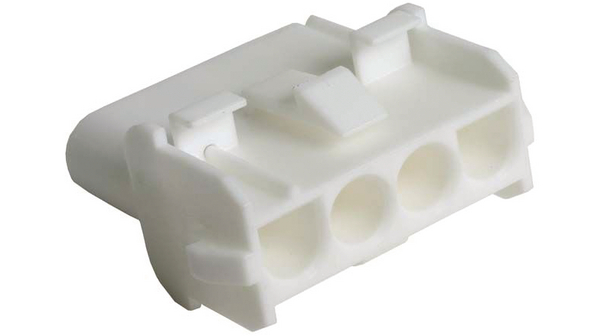

350780-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 6.35mm Crimp ST Panel Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 4POS 94V-0 UNI-MATE 4 way white receptacle housing Pin & Socket Connectors CAP HOUSE 4 POS Conn Housing RCP 4 POS 6.35mm Crimp ST Panel Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Connector,SoftShell;UniversalMATE-N-LOK;4;Receptacle(Cap);Nylon;White Plug/socket; wire-wire; male/female; w/o terminals; 6.35mm; PIN:4 Receptacle housing 6.35 mm Poles 4 Single row / Free hanging/cable mount MATE-N-LOK Universal, 350780-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 4 路 直 母 压接连接器外壳 04P UMNL CAP HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 600 V | 工作电压 | :600V |
| 接触电阻 | :3.5mohm | 介电强度 | :5000V |
| 最大额定电流 | 19 A | 绝缘电阻 | :1000Mohm |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | designed for any type of contacts |
机械参数
| 颜色 | Natural | 深度 | 27.43mm |
| 间距 | 6.35 mm | 重量 | 0.004 |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 导线线规 | 10-30 AWG | 触头类型 | Male or Female |
| 柱间距 | 6.35mm | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging, Panel |
| 排数 | 1 | 锁定特性 | lock |
| 材料表面处理 | :- | 面板厚度 | :2.29mm |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 包装数量 | 1000 | 尺寸/外形 | see |
| 连接器 - 电缆 | plug/socket | 端接样式 | Quick Connect |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Opaque |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 第一连接器安装特征 | 1x4 |
产品信息
| SPG | 1000 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | MATE-N-LOK | 已删除 | Compliant |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacle Housings |
| 适配器系列 | Universal MATE-N-LOK | 单元数量 | 1 |
| 适用产品/相关产品 | Centerline Splash Proof/Sealed Connector | ||
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
文档与媒体
相关型号
