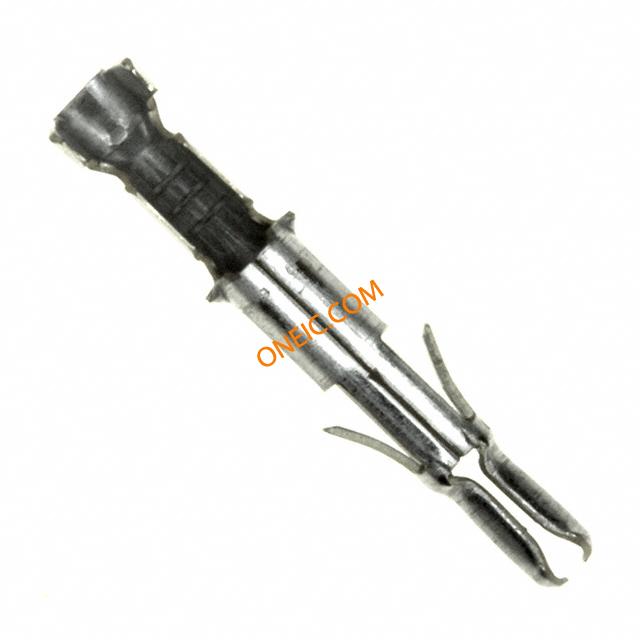

350706-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 18-24AWG TIN CRIMP Contact,crimp,pin,splt,Matenlok,24-18awg Power to the Board SPLIT PIN 24-18 BULK UMNL Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP PIN, 24-18AWG CONTACT,SPLITPIN,UNIVERSALMATE-N-LOK,24-18AWG TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UMNL SPLIT PIN 24-18 PTPBR L/P |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 3.68 mm | 间距 | Not Required mm |
| 高度 | 3.81 mm | 重量 | 0.02 |
| 包装方式 | Bulk | 导线线规 | 18-24 AWG |
| 端接方式 | Crimp | 触点尺寸 | :18 |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Split Pin | 连接器类型 | Connector Power |
| 接触镀层 | Gold | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 20.44 mm | 端接样式 | Quick Connect |
| 第一触头极性 | Pin (Male) | 触点数 | 1 POS |
| 接触件端接 | Crimp | 线规或范围 - AWG | 24-18 |
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 系列 | :Universal MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 产品子类型 | Contacts | 端口数 | 1 Port |
| 适用产品/相关产品 | :Universal MATE-N-LOK Connectors | ||
