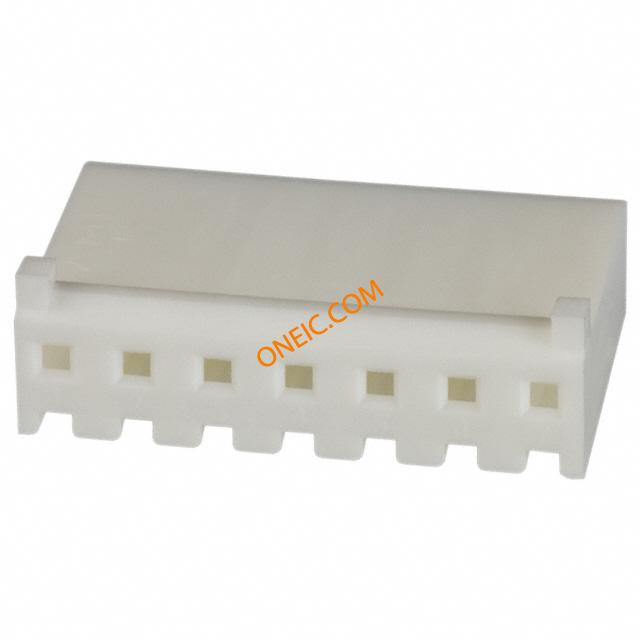

770849-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 7 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS W/RAMP SL156 7w housing with polarising tabs 07P SL156 HSG W/LCK RMP & TABS Headers & Wire Housings 07P SL156 HSG W/LCK Conn Housing RCP 7 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 7Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07PSL156HSGW/LCKRMP&TABS |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已获认证 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| 认证机构 | CSA,UL | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | Locking Ramp | 供电电压 | 250 VAC |
| 连接器阻抗 | 压接 | 最大额定电流 | 10/Contact A |
机械参数
| 颜色 | Natural | 深度 | 16.76mm |
| 间距 | 3.96 mm | 长度 | 27.69mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 壳体颜色 | 自然 | 出线方向 | 180° |
| 导线线规 | 18-24 AWG | 触头类型 | Female Socket |
| 极化 | Polarizing Tab | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Crimp |
| 接触镀层 | 3.96 [0.156] | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging | 排数 | 1 |
| 外壳材料（壳体） | 标准 | 连接器用途 | Receptacle |
| 高度（英寸） | .25 | 锁定特性 | Locking Ramp |
| 壳体材料 | Nylon | 总长度 | 27.69 mm |
| 安装特性 | Without | 包装数量 | 500 |
| 面板安装类型 | Without | 主要材料 | WiretoBoard |
| 插针孔直径 | 0.156" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 7 | 端接表面处理 | 不带 |
| 接触件端接 | Crimp | 绝缘直径 | Standard |
| 位数 | 7 | 兼容外壳尺寸（如TM-700等） | SL .156 端子 |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | SL-156 |
| 产品特性 | Polarizing Key | 可密封 | 否 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | SL-156 Housings | 应用细节 | Wire-to-Board |
| 适用产品/相关产品 | Wire-to-Board Economy Power Connector | ||
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号

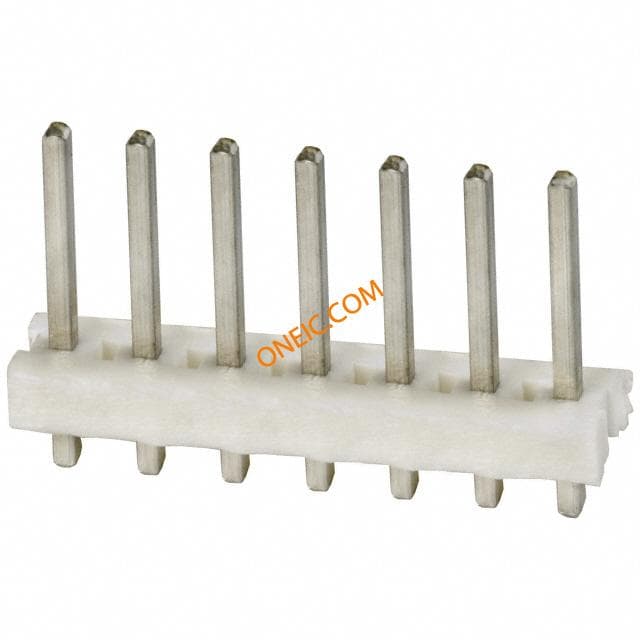

640383-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:7 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY STR SQ SN
3-770476-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact 18-24awg phosphor D/W Strip Headers & Wire Housings SKT 24-18 PHBR/SN Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, MTA, 24-18AWG CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP Contact; female; 0.2÷0.9mm2; SL-156; tinned; crimped; tape; 3.96mm TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡镀镍触点 SL156 RECPT, SNNI/PHBZ
770476-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 GOLD Contact female 0.2-0.9mm² SL-156 Headers & Wire Housings SOCKET 24-18 AWG Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpGold (30) over Nickel Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, RECEPTACLE, 24-18AWG, CRIMP CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀金镀镍触点 SL156 RECPT, AUNI/PHBZ

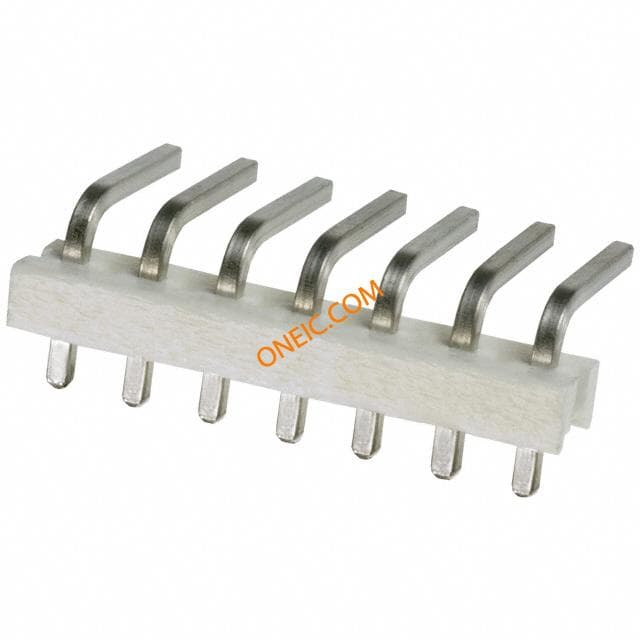

640385-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A
641208-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 7POS 30AU Headers & Wire Housings FRCTN LK HDR STR 7P Square post gold Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:Header7 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY FL ST 30AU

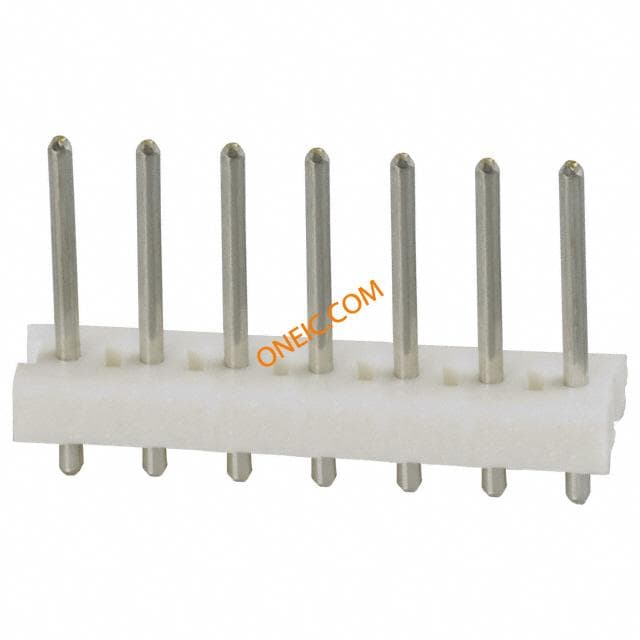

640384-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 7P Round post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:7 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY STR RND SN
644766-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 GOLD
641120-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 GOLD Headers & Wire Housings 07P MTA156 HDR ASSY FL/ST 15AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Connectors7 PositionMating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644751-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings 7P HDR ASSY R/A 07P MTA156 HDR ASSY R/A

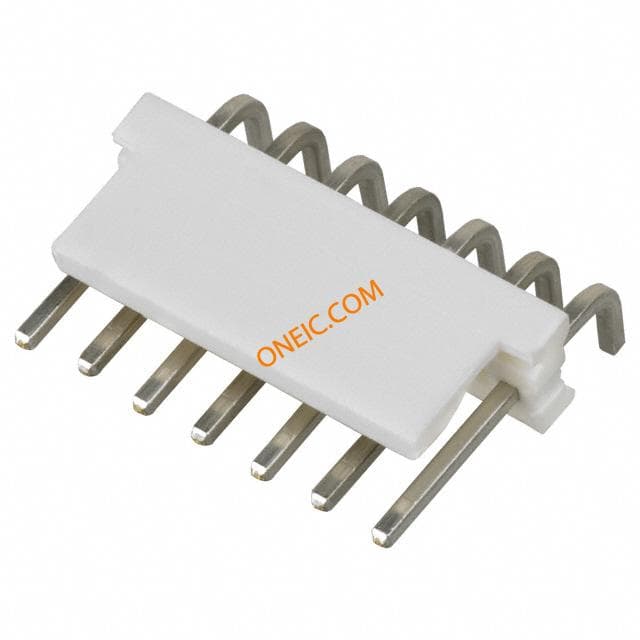

640389-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 7P Square post tin Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A F/L

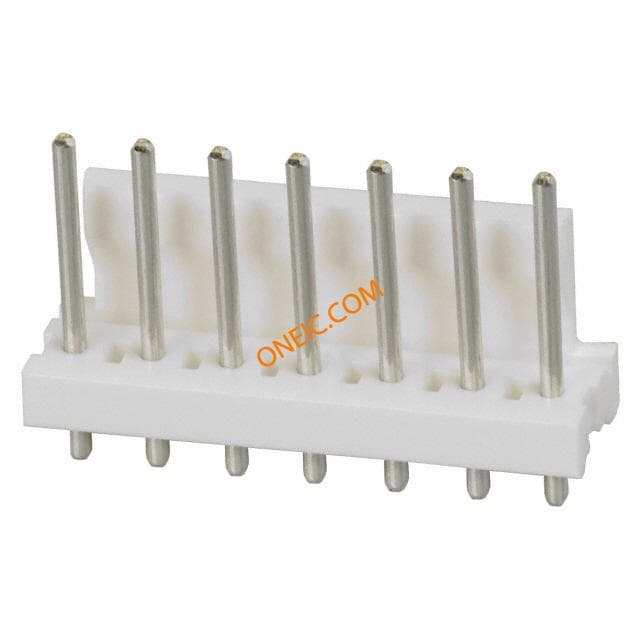

640388-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 7 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 7P Round post tin Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector7 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 7POS, 3.96MM MTA-156HEADER-TIN,07PMTA156HDRASSYRNSTRF/L TE Connectivity MTA-156 系列 3.96mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 07P MTA156 HDR ASSY RN STR F/L

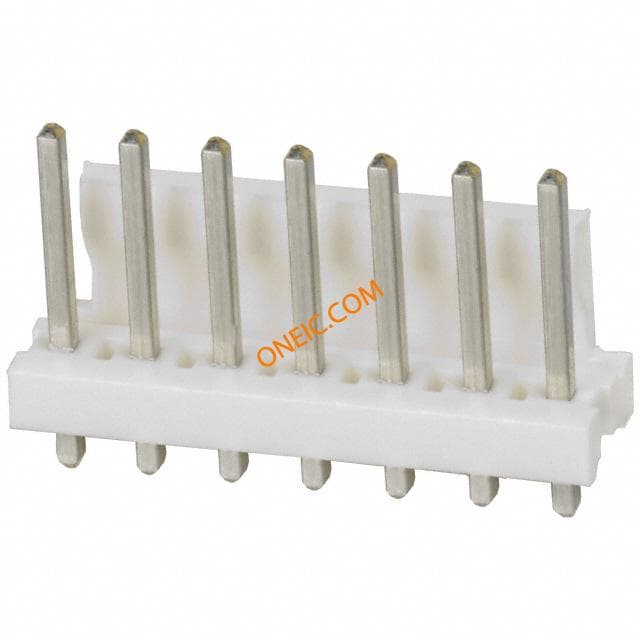

640445-7
