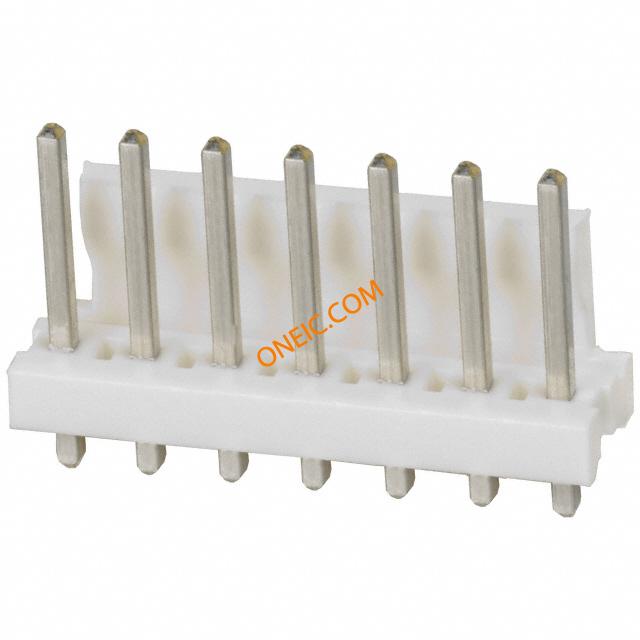

640445-7

点击放大查看

640445-7

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FRCTN LK HDR STR 7P Square post tin Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 Connectors7 PositionMating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 7WAY Connector,MTA-156;Male;7;CopperAlloy;7;600;0.156in.;Polyester;White 07P MTA156 HDR ASSY FL/STR SN
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant标准UL94V-0HousingFlammabilityRating,RoHSCompliant,ELVCompliant
海关税号85369010认证机构CSA,UL
材料阻燃等级UL 94 V-0

电气参数

量程（°/s）:TE - MTA-156 Series额定电压600 V
开关功能Friction Lock工作电压:250V
接触电阻3 mohm最大额定电流7 A
最小供电电压600VAC

机械参数

颜色Natural深度7.62 mm
间距3.96 mm高度13.33 mm
重量0.002包装方式Bulk
导线线规26-18端接方式Solder
触头类型Male Pin引脚间距:3.96mm
引脚长度（针脚）0.125"外壳颜色White
安装类型Through Hole行程角度Straight
连接器类型Header, Unshrouded接触镀层Tin Over Nickel
紧固类型Friction Lock安装样式Through Hole
排数1触头材料Copper Alloy
壳体材料Polyester总长度27.74 mm
主要材料InterconnectSystem插针孔直径0.156"
端接样式Through Hole第一触头极性Pin (Male)
触点数7接触件端接:Through Hole Vertical
绝缘直径0.095"(SingleWire),0.07"(MassTerminationWires)位数7
中心触点镀层工艺0.156in.柱体长度（配合）0.125in.
安装孔直径0.07"接触长度 - 配合0.400" (10.16mm)
端子柱长度3.18 mm

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156产品特性IDC,Pinstrip
制造商全称MTA-156Series产品子类型Headers
应用细节Wire-to-Board加载位置数All

环境参数

工作温度-55C to 105C

文档与媒体

PDF 文档
100170.pdf
在线文档
640445-7
