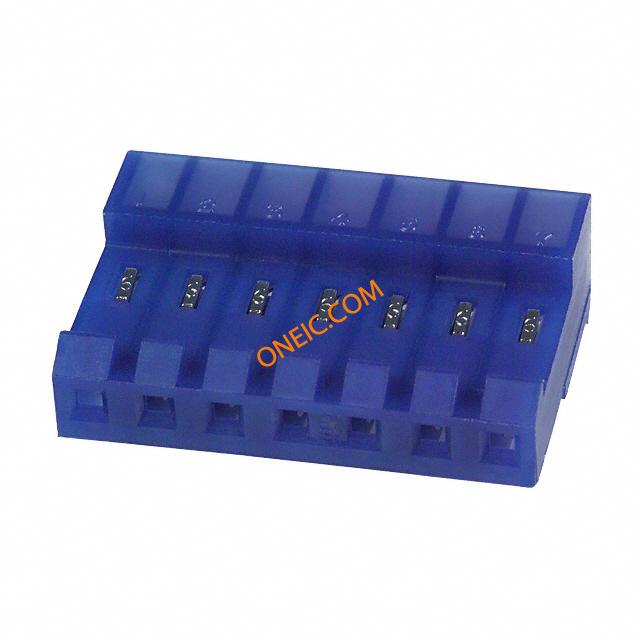

3-640430-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 26AWG MTA156 Headers & Wire Housings 7 POS RECPT 26 AWG Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 CONN ASSY 26AWG BLU |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 600 VAC | 开关功能 | Locking Ramp |
| 供电电压 | 600 | 连接器阻抗 | IDC |
| 最大额定电流 | 7 A | ||
机械参数
| 颜色 | Blue | 间距 | 3.96 mm |
| 高度 | 9.02 mm [ .355 in ] | 长度 | 27.74 mm [ 1.092 in ] |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 壳体颜色 | 白色 | 电缆类型 | 分离式导线, 绞线 |
| 导线线规 | 26 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 触点时序 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 壳体镀层 | Nickel | 外壳材料（壳体） | 标准 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 包装数量 | 250 |
| 面板安装类型 | 不带 | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 7 | 端接表面处理 | 带有 |
| 接触件端接 | Locking Lance | 绝缘直径 | 2.41 mm [ .095 in ] |
| 位数 | 7 | 兼容外壳尺寸（如TM-700等） | MTA .156 头 |
| 安装孔直径 | 不带 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 同轴 | 表面贴装焊盘尺寸 | Without |
| 接触镀层厚度 | 80µin (2.03µm) | 静电放电屏蔽 | 带有 |
| 护套（绝缘）厚度 | .762 µm, 30 µin | ||
产品信息
| 备注 | 肋之间的条纹可能会减少 | 类型 | IDC Connector |
| 连接器性别 | F | 系列 | MTA-156 |
| 产品特性 | Closed End | 可密封 | 否 |
| 产品子类型 | Connector Assemblies | ||
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
文档与媒体
相关型号
640383-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:7 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY STR SQ SN
640385-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A
641208-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 7POS 30AU Headers & Wire Housings FRCTN LK HDR STR 7P Square post gold Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:Header7 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY FL ST 30AU
640384-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 7P Round post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:7 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY STR RND SN
643995-6
te connectivity / amp
Conn IDC Connector M 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 6POS 22AWG MTA-156 Headers & Wire Housings 06P MTA156 PST CONN ASSY 22AWG 06P MTA156 PST CONN ASSY 22AWG 06P MTA156 PST CONN ASSY 22AWG Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644766-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 GOLD
641120-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 GOLD Headers & Wire Housings 07P MTA156 HDR ASSY FL/ST 15AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Connectors7 PositionMating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644751-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings 7P HDR ASSY R/A 07P MTA156 HDR ASSY R/A
647123-7
te connectivity / amp
Conn Shrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 TIN Headers & Wire Housings 07P MTA156 SHRD HDR ASSY SQ SN 07P MTA156 SHRD HDR ASSY SQ SN 07P MTA156 SHRD HDR ASSY SQ SN Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
647481-6
te connectivity / amp
Conn IDC Connector M 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers 06P MTA156 PLUG CONN 18AWG FT Headers & Wire Housings 06P MTA156 PSTD CONN 18AWG FT 06P MTA156 PSTD CONN 18AWG FT 06P MTA156 PSTD CONN 18AWG FT Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641439-6
te connectivity / amp
Conn IDC Connector M 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 6POS MTA156 26AWG BLUE Headers & Wire Housings 06P MTA156 PST CON ASSY BLUE 06P MTA156 PST CON ASSY BLUE 06P MTA156 PST CON ASSY BLUE Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640389-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 7P Square post tin Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A F/L
640388-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 7 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 7P Round post tin Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector7 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 7POS, 3.96MM MTA-156HEADER-TIN,07PMTA156HDRASSYRNSTRF/L TE Connectivity MTA-156 系列 3.96mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 07P MTA156 HDR ASSY RN STR F/L
647143-7
te connectivity / amp
Conn Shrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 GOLD 07P MTA156 SHRD HDR ASSY SQ AU 07P MTA156 SHRD HDR ASSY SQ AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640445-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FRCTN LK HDR STR 7P Square post tin Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 Connectors7 PositionMating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 7WAY Connector,MTA-156;Male;7;CopperAlloy;7;600;0.156in.;Polyester;White 07P MTA156 HDR ASSY FL/STR SN
644752-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings HEADER VERT 7POS TIN Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ STR F/L
641210-7
TE Connectivity / AMP
Headers & Wire Housings FRCTN LK HDR RA 7P Square post gold MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS R/A .156 30GOLD

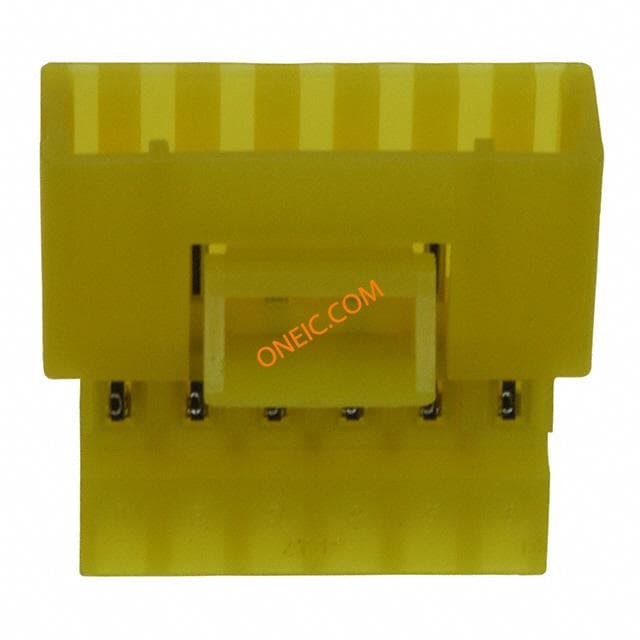

641436-6
