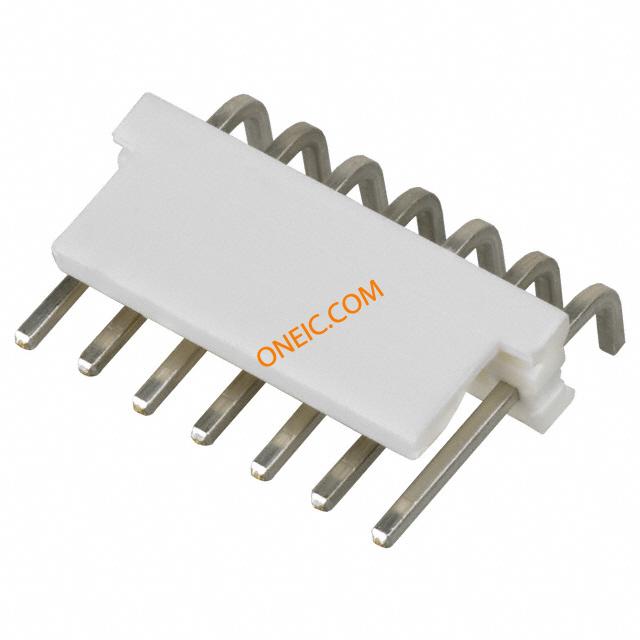

640389-7

点击放大查看

640389-7

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 7P Square post tin Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A F/L
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0材料阻燃等级UL 94 V-0

电气参数

额定电压600 V开关功能Friction Lock
供电电压600接触电阻3 mohm
最大额定电流7 A最小供电电压600VAC

机械参数

颜色Natural深度18.72 mm
间距3.96 mm高度7.62 mm
长度27.74 mm [ 1.092 in ]密封型Not Sealed
包装方式Bulk端接方式Solder
触头类型Male Pin外壳颜色White
安装类型Through Hole, Right Angle连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
紧固类型Friction Lock安装样式Through Hole
引脚数7排数1
封装形式Plug壳体镀层Nickel
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester总长度27.74 mm
包装数量2000面板安装类型通孔 - 焊接
端接样式Through Hole第一触头极性Pin (Male)
触点数7位数7
兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件安装孔直径不带
接触件表面处理 - 配合锡典型触点布局直插式
接触长度 - 配合0.400" (10.16mm)端子柱长度3.18 mm
接触镀层厚度100 µm [ 2.54 µin ]静电放电屏蔽不带
直角致动器长度Front

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156产品子类型Headers
应用细节Wire-to-Board加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C
封装热阻1.6 mm [ .063 in ]
