3-644461-7

点击放大查看

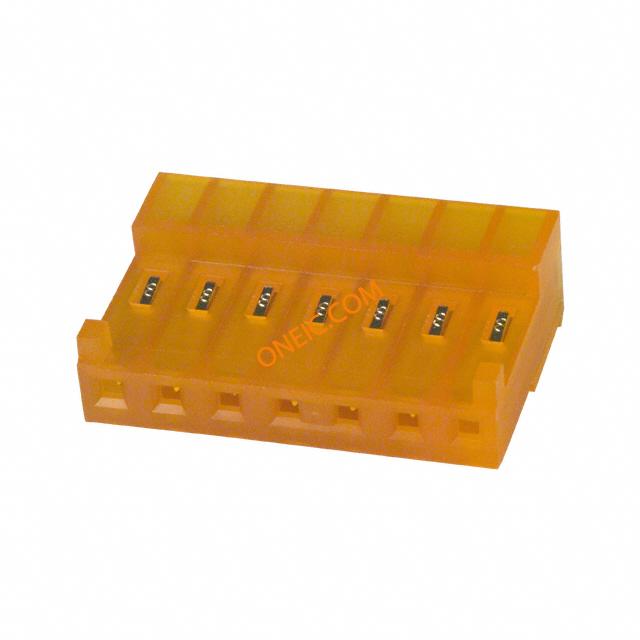

3-644461-7

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 18AWG MTA156 Headers & Wire Housings 07P MTA156 CONN ASSY 18AWG LF 07P MTA156 CONN ASSY 18AWG LF 07P MTA156 CONN ASSY 18AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格250产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量250

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA分类已认证
材料阻燃等级UL 94V-2

电气参数

额定电压600 VAC供电电压600
连接器阻抗IDC最大额定电流7 A

机械参数

颜色Orange间距3.96 mm
高度9.02 mm [ .355 in ]长度27.74 mm [ 1.092 in ]
包装方式Bulk导线类型Discrete or Ribbon Cable
壳体颜色白色电缆类型分离式导线, 绞线
导线线规18 AWG端接方式IDT
触头类型Female Socket安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin
触点时序Without安装样式Wire
排数1壳体镀层Nickel
外壳材料（壳体）标准插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
包装数量250面板安装类型不带
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数7
端接表面处理带有绝缘直径2.41 mm [ .095 in ]
位数7兼容外壳尺寸（如TM-700等）MTA .156 头
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局同轴接触镀层厚度80µin (2.03µm)
静电放电屏蔽带有护套（绝缘）厚度.762 µm, 30 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别RCP系列MTA-156
产品特性Closed End, Polarizing Key可密封否
产品子类型Connector Assemblies

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
3-644461-7?RQPN=3-644461-7
