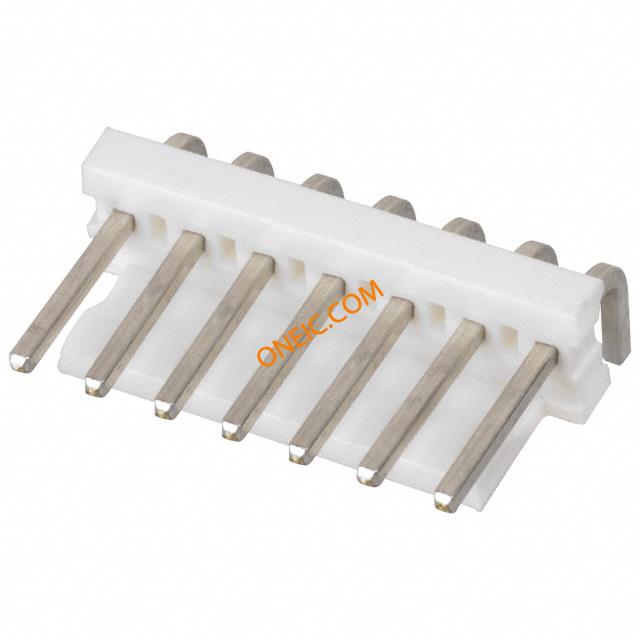

640387-7

点击放大查看

640387-7

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings POLARIZED HDR RA 7P Square post tin Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0材料阻燃等级UL 94 V-0

电气参数

额定电压600 V开关功能Friction Lock
供电电压600最大额定电流7 A

机械参数

颜色Natural间距3.96 mm
高度10.79 mm [ .425 in ]长度27.74 mm [ 1.092 in ]
密封型Not Sealed包装方式Bulk
端接方式Solder触头类型Male Pin
安装类型Through Hole, Right Angle连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
紧固类型Friction Lock安装样式不带
引脚数7排数1
封装形式Plug壳体镀层Nickel
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester包装数量1000
面板安装类型通孔 - 焊接端接样式Through Hole
第一触头极性Pin (Male)触点数7
位数7兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局直插式接触长度 - 配合0.400" (10.16mm)
端子柱长度3.18 mm接触镀层厚度100 µm [ 2.54 µin ]
静电放电屏蔽不带直角致动器长度Rear

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156产品子类型Headers
应用细节Wire-to-Board加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
640387-7

相关型号

3-640608-7

3-640608-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 26AWG MTA156 Headers & Wire Housings 07P MTA156 CONN ASSY 26AWG LF 07P MTA156 CONN ASSY 26AWG LF

¥1.4960
详情
3-641308-7

3-641308-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 22AWG .156 RED

详情
640434-7

640434-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS MTA-156 24AWG Headers & Wire Housings CLOSED W/O TABS 7P Natural 24 AWG Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 CONN ASSY 24AWG WHT

¥1.5300
详情
640607-7

640607-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 24AWG MTA156

详情
3-644572-7

3-644572-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 22AWG MTA-156

详情
3-640481-7

3-640481-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 26AWG .156 BLUE

详情
3-640607-7

3-640607-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 24AWG MTA156 Headers & Wire Housings 07P MTA156 CONN ASSY 24AWG LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Connectors7 PositionsMating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 CONN ASSY 24AWG LF

¥1.4960
详情
3-644687-7

3-644687-7

te connectivity / amp

Conn IDC Connector RCP 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 22AWG MTA-156

详情
3-641310-7

3-641310-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 26AWG .156 BLUE

详情
3-644461-7

3-644461-7

te connectivity / amp

Conn IDC Connector RCP 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 18AWG MTA156 Headers & Wire Housings 07P MTA156 CONN ASSY 18AWG LF 07P MTA156 CONN ASSY 18AWG LF 07P MTA156 CONN ASSY 18AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.1896
详情
3-640432-7

3-640432-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 20AWG MTA156 Headers & Wire Housings 7P CONN ASSY 20 AWG YEL Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 CONN ASSY 20AWG YEL

¥1.5966
详情
3-644502-7

3-644502-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 18AWG MTA-156 Headers & Wire Housings 07P MTA156 CONN ASSY 18AWG LF 07P MTA156 CONN ASSY 18AWG LF

¥1.8360
详情

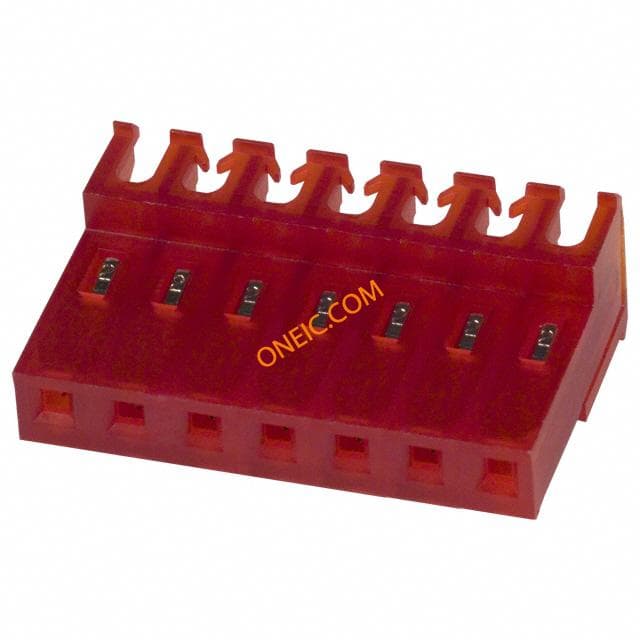

3-640606-7

3-640606-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 22AWG MTA156 Headers & Wire Housings FEED THRU WO TAB 7P Red 22 AWG 07P MTA156 CONN ASSY 22AWG LF 07P MTA156 CONN ASSY 22AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥1.4960
详情

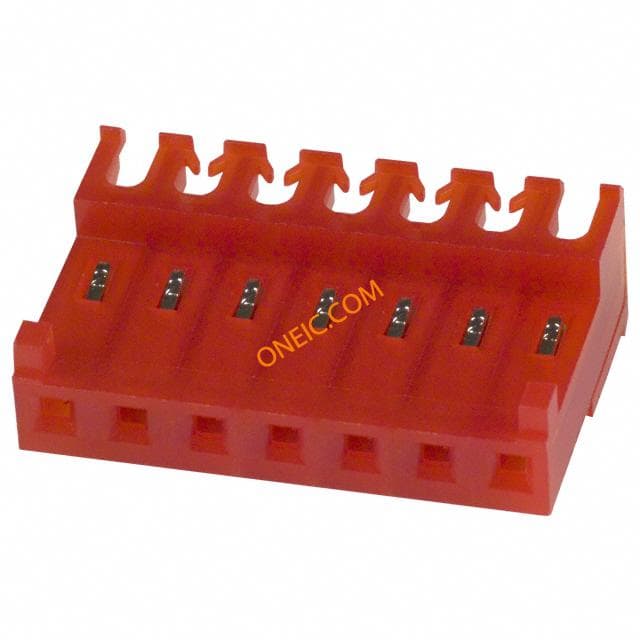

644471-7

644471-7

TE Connectivity / AMP

Headers & Wire Housings FEED THRU W TAB 7P Red 22 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 22AWG MTA156

详情
644461-7

644461-7

TE Connectivity / AMP

Headers & Wire Housings CLOSED WITH TABS 7P Orange 18 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS MTA-156 18AWG Conn IDC Connector RCP 7 POS 3.96mm IDT RA Cable Mount

¥1.5640
详情
3-640477-7

3-640477-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount T/R Headers & Wire Housings 07 CIR MTA156 ASSY MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 18AWG .156 ORANGE 07 CIR MTA156 ASSY ON TAPE LF

¥1.9720
详情

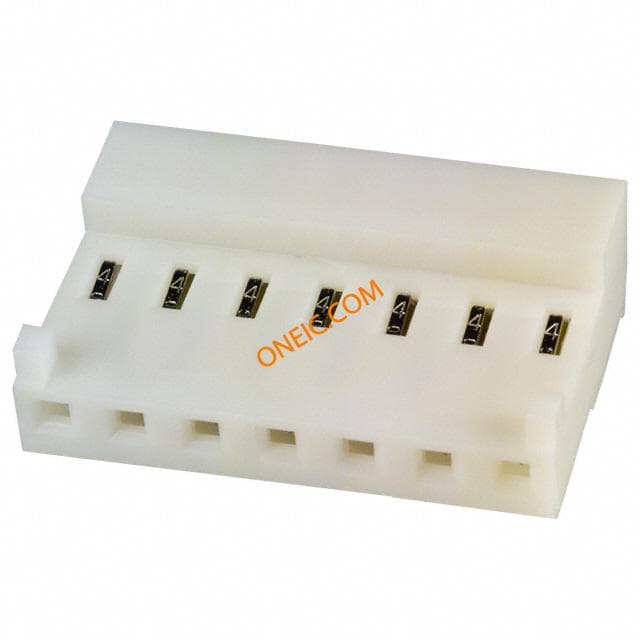

3-644464-7

3-644464-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 24AWG MTA156 Headers & Wire Housings 07P MTA156 CONN ASSY 24AWG LF 07P MTA156 CONN ASSY 24AWG LF 07P MTA156 CONN ASSY 24AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥1.4960
详情
3-644566-7

3-644566-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 22AWG MTA-156 Headers & Wire Housings 07P MTA156 CONN ASSY 22AWG LF 07P MTA156 CONN ASSY 22AWG LF

¥1.8360
详情
3-641307-7

3-641307-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 20AWG .156 YELLOW

详情
3-644570-7

3-644570-7

te connectivity / amp

Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 18AWG MTA-156 Headers & Wire Housings 07P MTA156 CONN ASSY 18AWG LF 07P MTA156 CONN ASSY 18AWG LF

¥1.8360
详情
