640385-7

点击放大查看

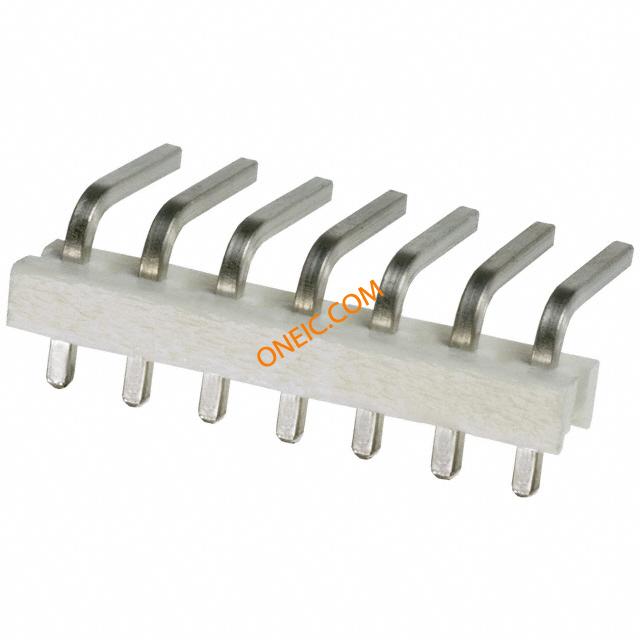

640385-7

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94 V-0

电气参数

额定电压600 V供电电压600
连接器阻抗焊接最大额定电流7 A

机械参数

颜色Natural间距3.96 mm
长度27.74 mm [ 1.092 in ]包装方式Bulk
壳体颜色自然端接方式Solder
触头类型Male Pin触点形状Square
安装类型Through Hole, Right Angle连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
安装样式不带排数1
壳体镀层Tin外壳材料（壳体）普通扁平
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester包装数量2000
面板安装类型通孔 - 焊接端接样式Through Hole
第一触头极性Pin (Male)触点数7
端接表面处理不带位数7
兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件触头长度-柱3.18 mm [ .125 in ]
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局同轴接触长度 - 配合0.390" (9.91mm)
表面贴装焊盘尺寸Without端子柱长度3.18 mm
接触镀层厚度2.54 µm [ 100 µin ]静电放电屏蔽不带
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Unshrouded Header连接器性别HDR
系列MTA-156可密封否
产品子类型Headers应用细节Wire-to-Board
加载位置数All
