点击放大查看

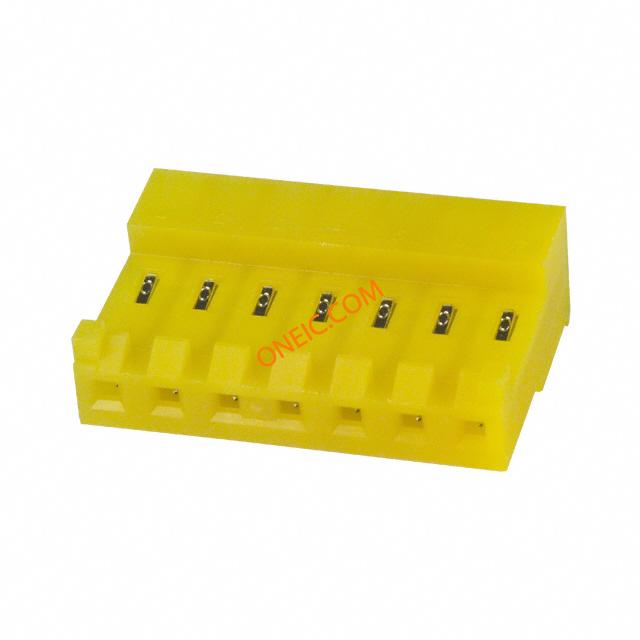

643818-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS MTA-156 20AWG Headers & Wire Housings CLOSED WITH TABS 7P L.R. yellow 20 AWG Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 Connectors7 PositionMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 CONN ASSY 20AWG YEL |
| 分类 |
商业参数
| 其他名称 | A26100 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 600 VAC | 开关功能 | Locking Ramp |
| 供电电压 | 600 | 连接器阻抗 | 刺破式压接 (IDC) |
| 最大额定电流 | 7 A | ||
机械参数
| 颜色 | Yellow | 间距 | 3.96 mm |
| 长度 | 27.74 | 密封型 | Not Sealed |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 壳体颜色 | 黄色 | 电缆类型 | 分离式导线 |
| 导线线规 | 20 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Bright Tin-Lead Over Nickel |
| 触点时序 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 引脚数 | 7 |
| 排数 | 1 | 封装形式 | Receptacle |
| 外壳材料（壳体） | 标准外形 | 高度（英寸） | 9.02 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 包装数量 | 250 |
| 面板安装类型 | 不带 | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 7 | 接触件端接 | Locking Lance |
| 绝缘直径 | 2.41 mm [ .095 in ] | 位数 | 7 |
| 兼容外壳尺寸（如TM-700等） | MTA .156 公端 | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡铅 | 典型触点布局 | 直插式 |
| 接触镀层厚度 | 80µin (2.03µm) | 静电放电屏蔽 | 带有 |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-156 | 产品特性 | Closed End, Polarizing Key |
| 产品子类型 | Connector Assemblies | 安装类型 | Closed End |
| 输出配置 | 90° | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
640383-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:7 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY STR SQ SN
640385-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A
641208-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 7POS 30AU Headers & Wire Housings FRCTN LK HDR STR 7P Square post gold Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:Header7 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY FL ST 30AU

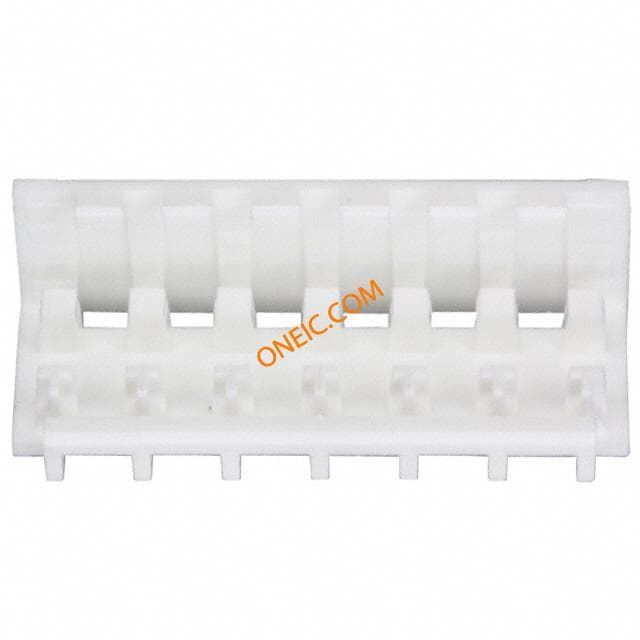

643067-7
