644753-7

点击放大查看

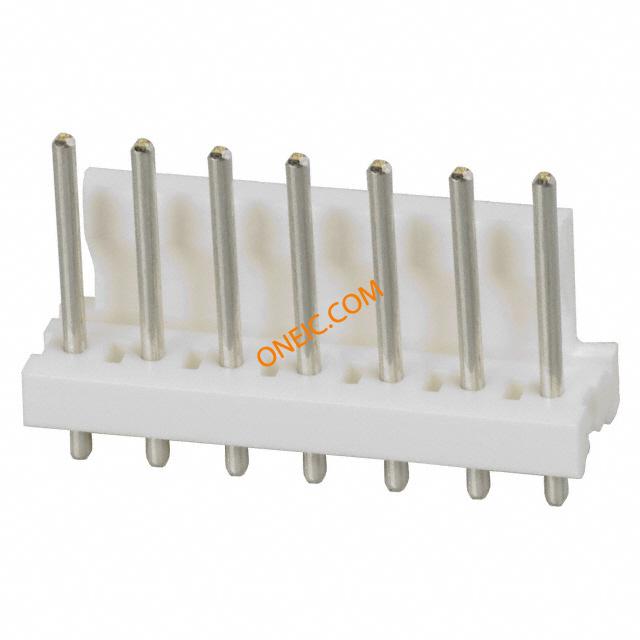

644753-7

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings 7P HDR ASSY RN STR Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY RN STR F/L
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94 V-0

电气参数

额定电压600 V开关功能Friction Lock
供电电压600接触电阻3 mohm
连接器阻抗焊接最大额定电流7 A
最小供电电压600VAC

机械参数

颜色Natural深度7.62 mm
间距3.96 mm高度13.33 mm
长度27.74 mm [ 1.092 in ]包装方式Bulk
壳体颜色自然端接方式Solder
触点形式Male Pin触头类型Male Pin
触点形状Round外壳颜色Natural
安装类型Through Hole连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
紧固类型Friction Lock安装样式Through Hole
排数1壳体镀层Tin
外壳材料（壳体）摩擦锁插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
总长度27.74 mm包装数量1
面板安装类型通孔 - 焊接端接样式Through Hole
第一触头极性Pin (Male)板面高度0.400" (10.16mm)
触点数7端接表面处理不带
位数7兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件
触头长度-柱电源安装孔直径不带
接触件表面处理 - 配合锡典型触点布局同轴
接触长度 - 配合0.400" (10.16mm)端子柱长度4.45 mm
接触镀层厚度2.54 µm [ 100 µin ]静电放电屏蔽不带
每排/每行位置数All护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156可密封否
产品子类型Headers输出配置Through Hole
应用细节Wire-to-Board加载位置数All

环境参数

工作温度-55C to 105C封装热阻1.6 mm [ .063 in ]
