643817-7

点击放大查看

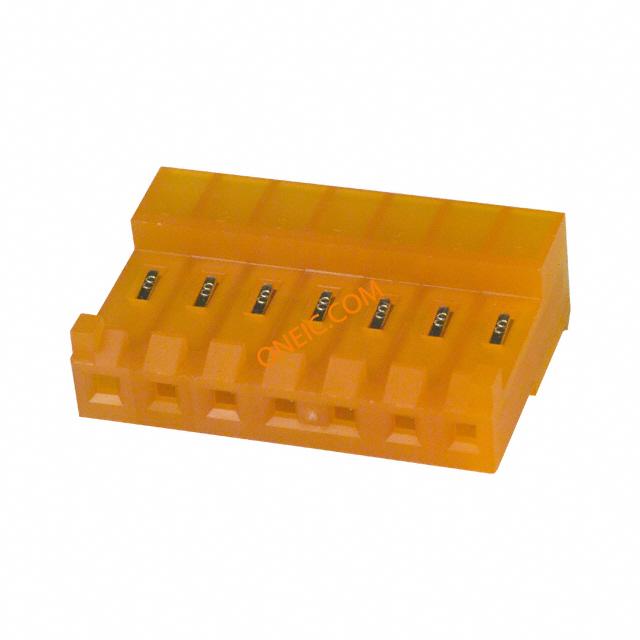

643817-7

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 18AWG MTA156 Headers & Wire Housings CLOSED WITH TABS 7P L.R. orange 18 AWG Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 Connectors7 PositionMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 CONN ASSY 18AWG ORA
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94V-2

电气参数

额定电压600 VAC开关功能Locking Ramp
供电电压600接触电阻3 mohm
连接器阻抗IDC最大额定电流7 A
最小供电电压600VAC

机械参数

颜色Orange深度9.02 mm
间距3.96 mm高度18.42 mm
长度27.74包装方式Bulk
导线类型Discrete or Ribbon Cable壳体颜色白色
电缆类型分离式导线, 绞线导线线规18 AWG
端接方式IDT触头类型Female Socket
外壳颜色Orange安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin-Lead
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
外壳材料（壳体）标准高度（英寸）9.02
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon总长度27.74 mm
包装数量250面板安装类型不带
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数7
端接表面处理带有接触件端接Locking Lance
绝缘直径2.41 mm [ .095 in ]位数7
兼容外壳尺寸（如TM-700等）MTA .156 头触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡铅
典型触点布局同轴表面贴装焊盘尺寸Without
接触镀层厚度80µin (2.03µm)静电放电屏蔽带有

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-156
产品特性Closed End, Polarizing Key可密封否
产品子类型Connector Assemblies

环境参数

工作温度-55C to 105C
