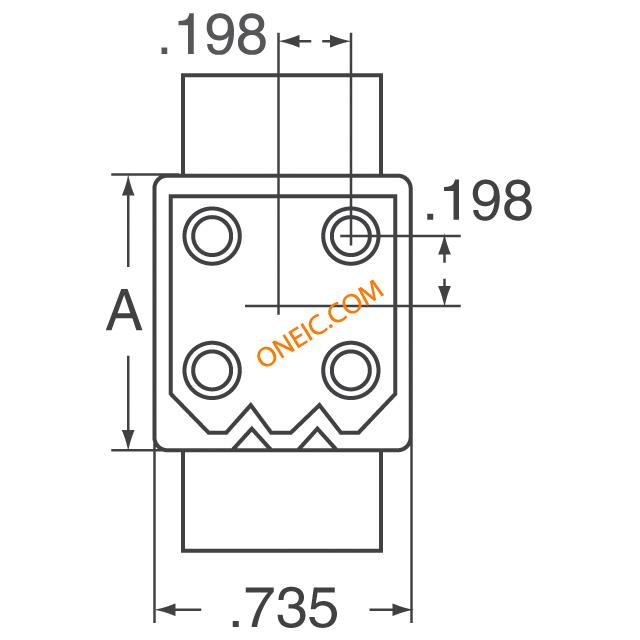

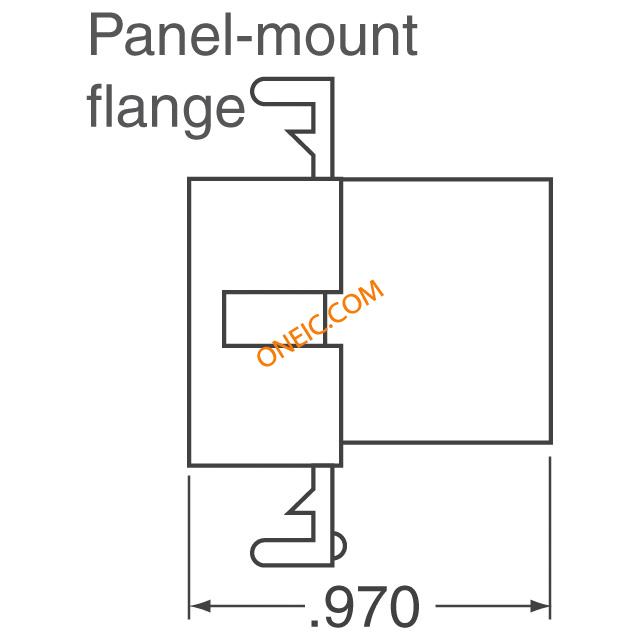

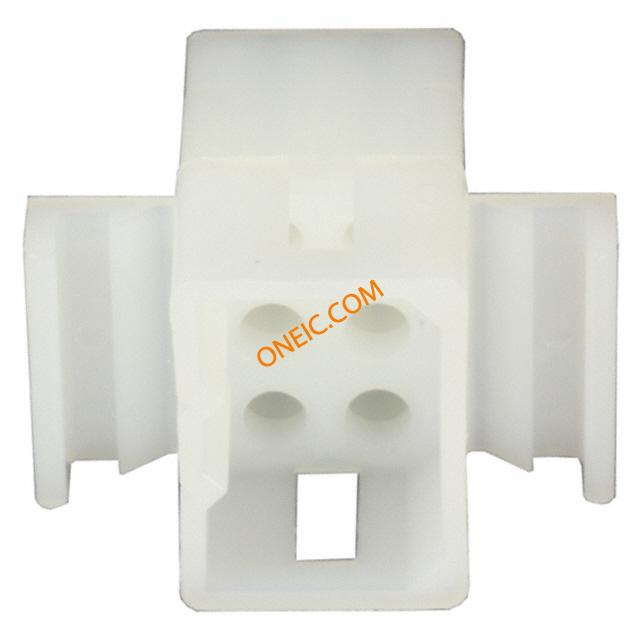

770089-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6 POS 5.03mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN PLUG W/DETENT 6POS .093 Pin & Socket Connectors PANEL MOUNT PLG 6P matrix Conn Housing PL 6 POS 5.03mm ST Individual Product Highlights:HousingPlug5.03 mm CenterlineNumber of Circuits = 6Matrix Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 06P .093 COMM P&S PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-2 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 13 A | 连接器类型 - 电压输入 | Commercial Pin and Socket |
机械参数
| 颜色 | Natural | 间距 | 5.03 mm |
| 宽度 | 18.67 | 长度 | 24.64 |
| 密封型 | Not Sealed | 锁定类型 | Detent Lock |
| 包装方式 | Bulk | 排间距 | 0.198" (5.03mm) |
| 本体尺寸 | 2.29 mm [ .09 in ] | 触头类型 | Male or Female |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Detent Lock | 排数 | 2 |
| 封装形式 | Plug | 高度（英寸） | 27.81 |
| 壳体材料 | Nylon | 总长度 | 5.03 [0.198] |
| 包装数量 | One Piece Housing | 面板安装类型 | 带有 |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 兼容外壳尺寸（如TM-700等） | 母端护套 |
| 典型触点布局 | Matrix | 接触镀层厚度 | 2.36 [0.093] |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Mate-N-Lok |
| 产品子类型 | Housing | 电路数 | 6 |
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
相关型号
770088-1
te connectivity / amp

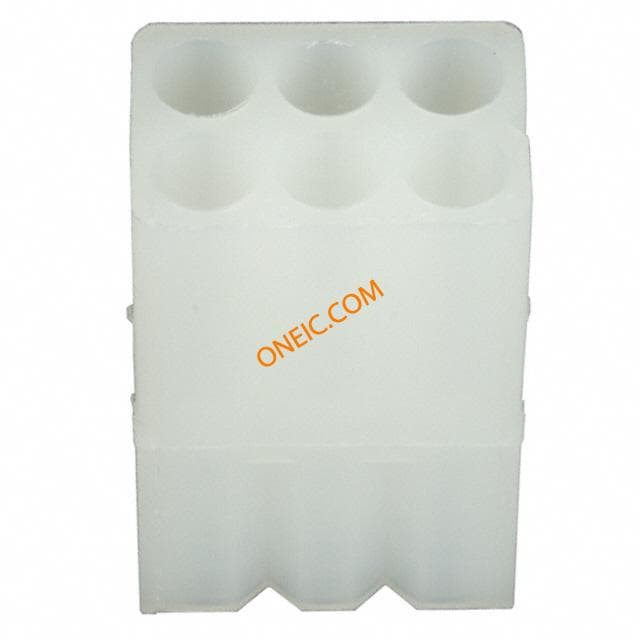

Conn Housing RCP 6 POS 5.03mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN RECEPT W/O DETENT 6POS .093 Pin & Socket Connectors RECPT 6P FREE HNG w/o detent lock Conn Housing RCP 6 POS 5.03mm ST Individual Product Highlights:HousingReceptacle5.03 mm CenterlineNumber of Circuits = 6Matrix Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 06P .093 COMM P&S RECPT HSG
770086-1
te connectivity / amp

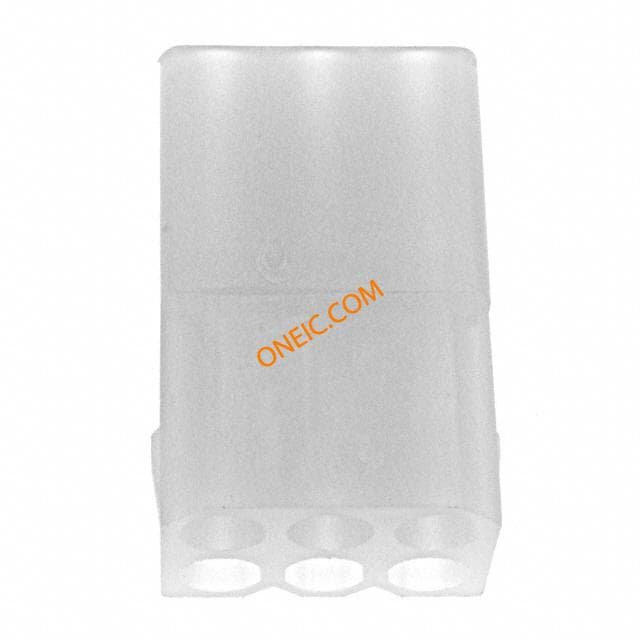

Conn Housing RCP 6 POS 5.03mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN RECEPT W/DETENT 6POS .093 .093 Pin + Socket Receptacle housing3+3P Pin & Socket Connectors RECPT 6P DETENT LOCK matrix Conn Housing RCP 6 POS 5.03mm ST Individual Product Highlights:HousingReceptacle5.03 mm CenterlineNumber of Circuits = 6Matrix Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Connector,Shell;250VAC;13A(Max.);6;Receptacle;Nylon;Natural;Matrix 06P .093 COMM P&S RECPT HSG
350417-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .198, .200, .250" Centerline, 250 V, 13 A max. CONN SOCKET 24-18AWG GOLD .093" Pin & Socket Connectors 093CPS SKT 24-18 350417-5 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketSelect Gold [30] Solder Tail Contact PlatingStripWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .093 COMM P&S SOK AU/NI/BR
350416-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors PIN 14-20AWG GOLD .198, .200, .250" Centerline, 250 V, 13 A max. CONN PIN 14-20AWG GOLD CIRMP 350416-5 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PinCrimp Contact Termination TypeSelect Gold (30) Contact Plating, Mating Area, MaterialPackaging Method = StripSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .093 COMM P&S PIN AU/NI/BR

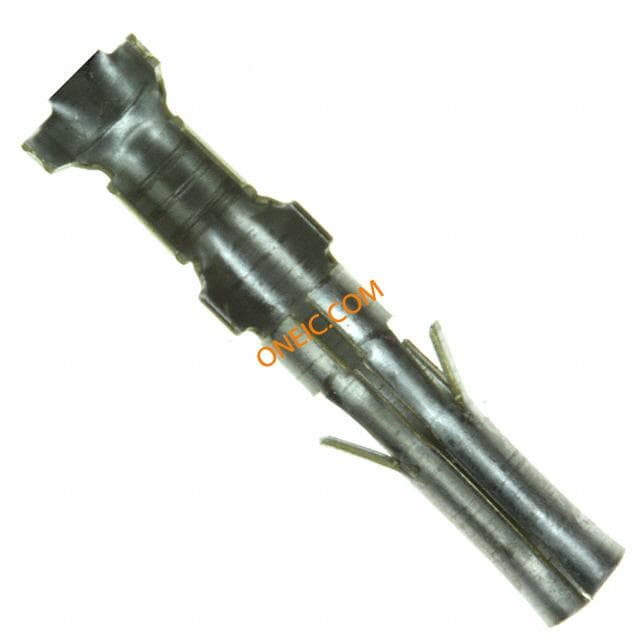

350415-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .198, .200, .250" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG TIN CRIMP Contact,crimp,socket,14-20awg Pin & Socket Connectors CONTACT PIN 24-10AWG Reel of 4000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketPre-Tin Solder Tail Contact PlatingStripWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT,SOCKET,SOFTSHELL0.093,14-20AWG TE Connectivity Commercial .093 系列 母 压接接线端子, 压接, 镀锡触点 .093 COMM P&S SOK 14-20 PTPBR
770529-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors .093 COMM P&S SKT .198, .200, .250" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG .093 TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketPre-Tin Solder Tail Contact PlatingStripWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, Free Hanging Crimp Contact Socket Connector .093 COMM P&S SOK 14-20 PTPBR
350415-6
te connectivity / amp

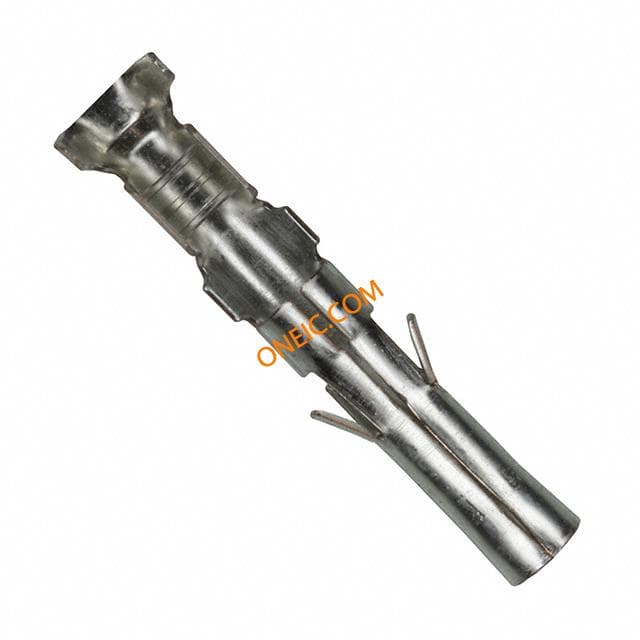

Contact SKT Crimp ST Cable Mount Strip .198, .200, .250" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG .093 TIN Pin & Socket Connectors SCKT 14-20 .093 TIN .198, .200, .250" Centerline, 250 V, 13 A max. Product Highlights:ContactSocketPre-Tin Solder Tail Contact PlatingPackaging Method = StripWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 20-14 AWG Crimp Socket Connector .093 COMM P&S SOK 14-20 PTPHBZ
770146-5
te connectivity / amp

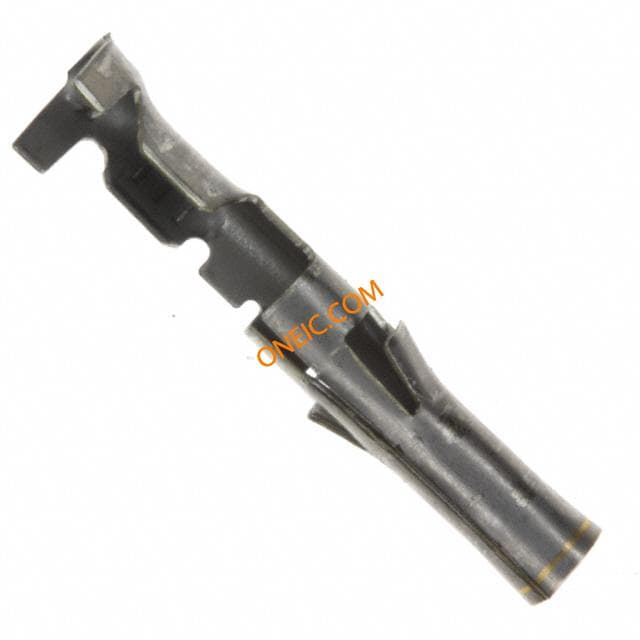

Contact SKT Crimp ST Cable Mount Strip .198, .200, .250" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Pin & Socket Connectors 093CPS SKT 24-18 BR/AU Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketSelect Gold [30] Solder Tail Contact PlatingLoose PieceWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, Soft Shell 24-18 AWG Crimp Socket Contact
350415-5
te connectivity / amp

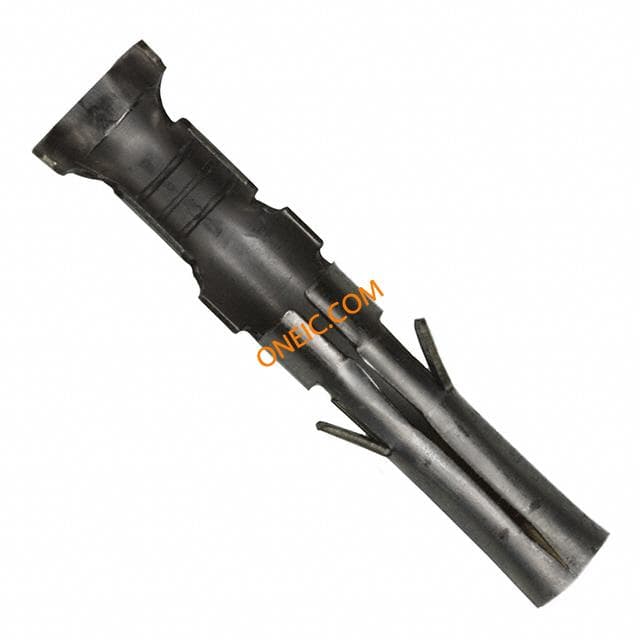

Contact SKT Crimp ST Cable Mount Strip .198, .200, .250" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG GOLD CRIMP Pin & Socket Connectors .093 COMM P&S SOK 20 .198, .200, .250" Centerline, 250 V, 13 A max. Product Highlights:ContactSocketSelect Gold [30] Solder Tail Contact PlatingStripWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .093 COMM P&S SOK 20-14 AUBR
770147-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .198, .200, .250" Centerline, 250 V, 13 A max. CONN PIN 18-24AWG GOLD CRIMP Pin & Socket Connectors .093 PIN AUBR 24-18 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactWire Barrel Contact Termination TypeContact Type = PinSelect Gold (30) Contact Plating, Mating Area, MaterialPackaging Method = Loose PieceSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, PIN, 24-18AWG, CRIMP PINCONTACT,.093IN,250VAC,13A,CRIMP,24-18AWG .093 CP&S PIN AUBR LP 24-18
770147-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .198, .200, .250" Centerline, 250 V, 13 A max. CONN PIN 18-24AWG TIN CRIMP Pin & Socket Connectors 24/18 AWG TIN/BRASS Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactPinPre-Tin Solder Tail Contact PlatingLoose PieceWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, PIN, 24-18AWG, CRIMP .093Soft-ShellPin&Socket,Contacts(Pre-TinnedBrass),Pin,for24-18AWG .093 CP&S PIN PTPBR LP 24-18
350418-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .198, .200, .250" Centerline, 250 V, 13 A max. CONN CONTACT PIN 24-18AWG GOLD Pin & Socket Connectors CONTACT PIN 24-18 AU .198, .200, .250" Centerline, 250 V, 13 A max. Product Highlights:ContactPinSelect Gold [30] Solder Tail Contact PlatingStripWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .093 COMM P&S PIN AU/NI/BR
770385-1
TE Connectivity / AMP
Terminals .093 PIN 14-18 PTPBR .198, .200, .250" Centerline, 250 V, 13 A max. CONN PIN 14-18AWG .093 TIN Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactPinPre-Tin Solder Tail Contact PlatingPackaging Method = StripWire Range = 0.80-2.00² [18-14] mm [AWG], (2) 0.80-0.90² [(2) 18] mm [AWG]
350416-1
te connectivity / amp

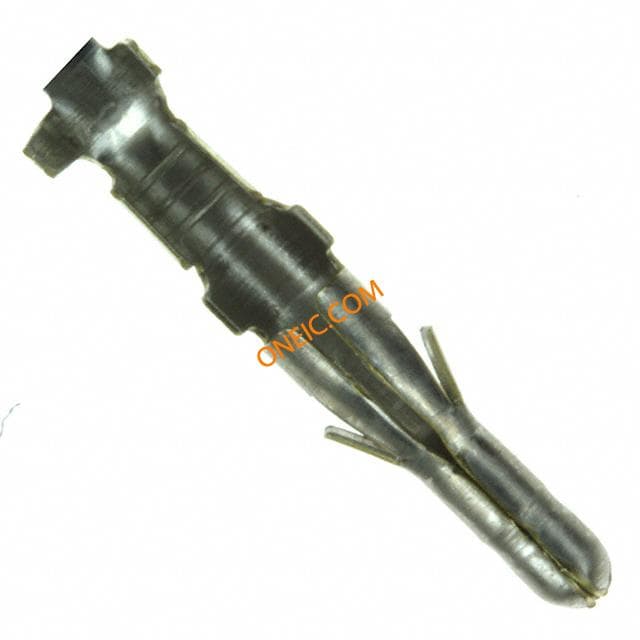

Contact SKT Crimp ST Cable Mount Loose Piece .198, .200, .250" Centerline, 250 V, 13 A max. CONN PIN 14-20AWG TIN CRIMP Commercial contact,socket,0.20-0.80mm2 Pin & Socket Connectors PIN 20-14 AWG REEL Reel of 4000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactPinPre-Tin Contact Termination Area PlatingStripWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT, PIN, 20-14AWG, CRIMP CONTACT,PIN,SOFTSHELL0.093,14-20AWG TE Connectivity Commercial .093 系列 公 压接接线端子, 压接, 镀锡触点 .093 COMM P&S PIN 14-20 PTPBR
350418-1
te connectivity / amp

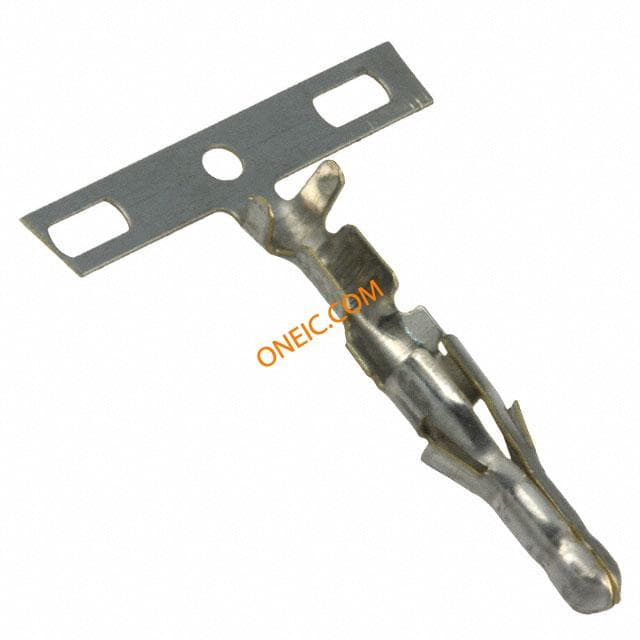

Contact PIN Crimp ST Cable Mount Loose Piece .198, .200, .250" Centerline, 250 V, 13 A max. CONN CONTACT PIN 24-18AWG TIN Commercial contact,socket,0.20-0.80mm2 Pin & Socket Connectors PIN 18-24AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactPinPre-Tin Solder Tail Contact PlatingPackaging Method = StripWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT,PIN,SOFTSHELL0.093,18-24AWG Contact; male; 0.2÷0.8mm2; .093 Commercial Pin & Socket; tinned .093 COMM P&S PIN 18-24 PTPBR
