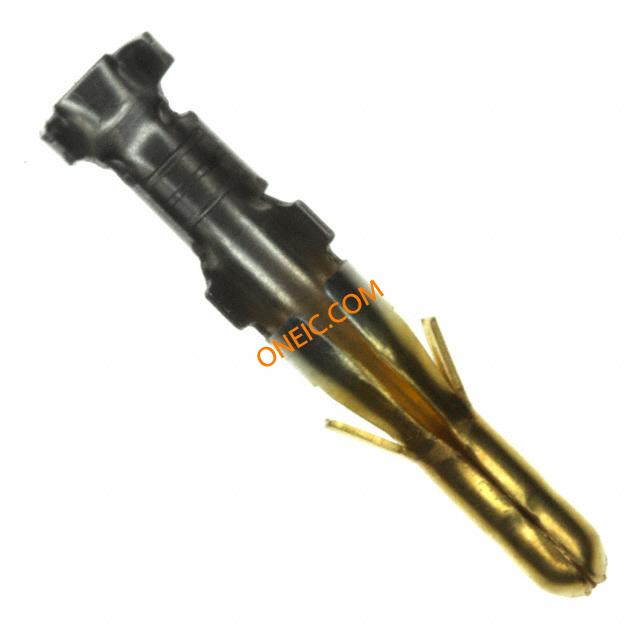

770145-5

点击放大查看

770145-5

制造商
TE Connectivity Ltd.
描述Contact SKT Crimp ST Cable Mount Loose Piece Pin & Socket Connectors .093 PIN AUBR 20-14 .198, .200, .250" Centerline, 250 V, 13 A max. CONN PIN 14-20AWG GOLD CIRMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactPinSelect Gold [30] Solder Tail Contact PlatingLoose PieceWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .093 CP&S PIN AUBR LP 20-14
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSRoHS CompliantUL档案号E28476
标准编号CSA, UL

电气参数

额定电压250 V供电电压250, 600
最大额定电流13 A

机械参数

镀层镍包装方式Bulk
电缆类型分离式导线导线线规14-20 AWG
端接方式Crimp触头类型Power
插针或插孔Pin连接器类型Connector Power
接触镀层Pre-Tin安装样式Wire
壳体镀层Nickel插入件材料黄铜
触头材料Brass包装数量1000
端接样式Crimp第一触头极性Pin (Male)
适用端子尺寸No接触件端接Crimp
绝缘直径3.56 mm [ .14 in ]兼容外壳尺寸（如TM-700等）插座
接触件表面处理 - 配合镍法兰上方插针尺寸2.36 mm [ .093 in ]
接触镀层厚度30µin (0.76µm)线规或范围 - AWG20-14
护套（绝缘）厚度1.27 µm [ 50 µin ]

产品信息

连接器性别SKT产品子类型Contacts
应用细节Power

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
770145-5
在线文档
770145-5?RQPN=770145-5
