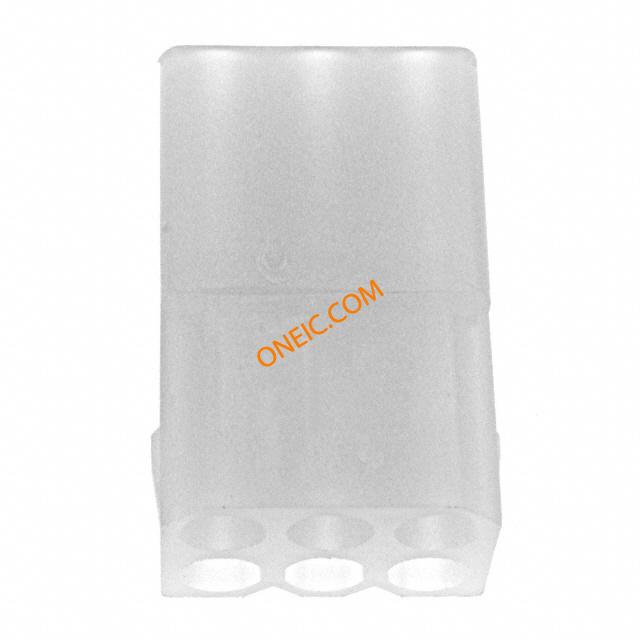

770086-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 5.03mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN RECEPT W/DETENT 6POS .093 .093 Pin + Socket Receptacle housing3+3P Pin & Socket Connectors RECPT 6P DETENT LOCK matrix Conn Housing RCP 6 POS 5.03mm ST Individual Product Highlights:HousingReceptacle5.03 mm CenterlineNumber of Circuits = 6Matrix Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Connector,Shell;250VAC;13A(Max.);6;Receptacle;Nylon;Natural;Matrix 06P .093 COMM P&S RECPT HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 输出数量 | 6 | 最大额定电流 | 13 A |
| 连接器类型 - 电压输入 | Commercial Pin and Socket | ||
机械参数
| 颜色 | Natural | 间距 | 5.03 mm |
| 长度 | 1in | 重量 | 0.003 |
| 锁定类型 | Detent Lock | 包装方式 | Bulk |
| 排间距 | 0.198" (5.03mm) | 触头类型 | Male or Female |
| 基体材料 | :Nylon | 芯径 | 0.093in. |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 安装样式 | FreeHanging | 排数 | 2 |
| 壳体材料 | Nylon | 总长度 | 5.03 [0.198] |
| 包装数量 | One Piece Housing | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.198" | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
| 典型触点布局 | Matrix | 接触镀层厚度 | 2.36 [0.093] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Soft Shell |
| 产品特性 | FreeHanging | 制造商全称 | SoftShell |
| 产品子类型 | Housing | 电路数 | 6 |
| 矩阵（列×行） | 0.198in. | 适用产品/相关产品 | :.093" Commercial Pin and Socket Connectors |
环境参数
| 工作温度 | +25to+65°C | ||
