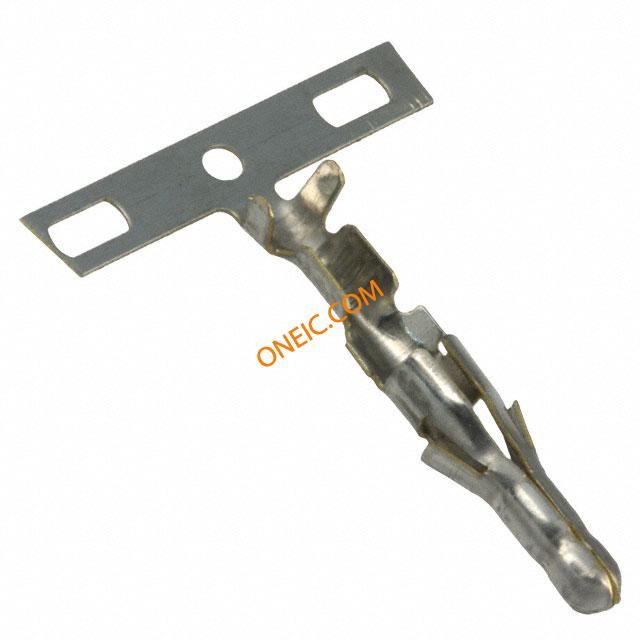

350418-1

点击放大查看

350418-1

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Loose Piece .198, .200, .250" Centerline, 250 V, 13 A max. CONN CONTACT PIN 24-18AWG TIN Commercial contact,socket,0.20-0.80mm2 Pin & Socket Connectors PIN 18-24AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactPinPre-Tin Solder Tail Contact PlatingPackaging Method = StripWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, CONTACT,PIN,SOFTSHELL0.093,18-24AWG Contact; male; 0.2÷0.8mm2; .093 Commercial Pin & Socket; tinned .093 COMM P&S PIN 18-24 PTPBR
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

其他名称A100560CT产品类别Pin & Socket Connectors
标准包装数量Tape & Reel工厂包装数量5000

合规参数

RoHSLead free / RoHS Compliant

电气参数

额定电压250 V最大额定电流13 A
最小供电电压250VDC/250VAC

机械参数

深度3.94 mm间距Not Required mm
重量0.44 g包装方式Tape & Reel (TR)
导线线规18-24 AWG端接方式Crimp
触头类型Power柱间距5.08mm
安装类型Straight插针或插孔Pin
连接器类型Connector Power接触镀层Gold Over Nickel
安装样式Cable触头材料Phosphor Bronze
壳体材料Not Required总长度20.19 mm
包装数量5000连接器 - 电缆contact
端接样式Crimp第一触头极性Pin (Male)
触点数1 POS接触件端接Crimp
线规或范围 - AWG24-18线规或范围 - mm²0.2...0.8mm2
触点材料 - 镀层tinned

产品信息

SPG5000类型Contact
连接器性别PIN系列Mate-N-Lok
产品子类型Contacts适配器系列.093 Commercial Pin & Socket
端口数1 Port单元数量5000

环境参数

工作温度+105°C结工作温度105C

文档与媒体

在线文档
350418-1?RQPN=350418-1

相关型号

770073-1

770073-1

te connectivity / amp

Conn Housing PL 3 POS 5.03mm Crimp ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN PLUG W/DETENT 3POS .093 Pin & Socket Connectors PANEL MOUNT PLG 3P in-line Conn Housing PL 3 POS 5.03mm Crimp ST Individual Product Highlights:HousingPlug5.03 mm CenterlineNumber of Circuits = 3In-Line Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 03P .093 COMM P&S PLUG HSG

¥0.6460
详情
770266-1

770266-1

te connectivity / amp

Conn Housing RCP 2 POS 6.3mm Crimp ST Cable Mount One Piece .198, .200, .250" Centerline, 250 V, 13 A max. CONN RCPT HSNG 2POS FREE HANGING Pin & Socket Connectors 02P 0.093 COMM P&S RCPT 0.248CL Conn Housing RCP 2 POS 6.3mm Crimp ST Cable Mount One Piece Product Highlights:HousingReceptacle6.30 mm CenterlineNumber of Circuits = 2In-Line Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 02P .093 COMM P&S RECPT .248CL

¥0.6528
详情

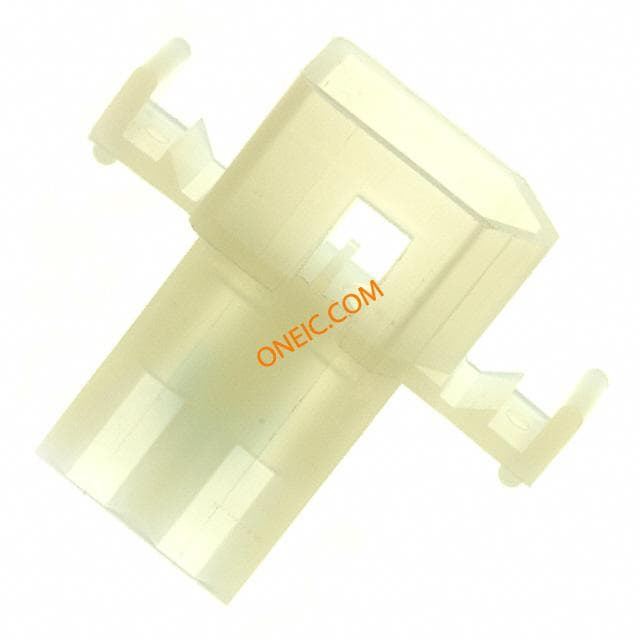

770068-1

770068-1

te connectivity / amp

Conn Housing PL 2 POS 6.3mm Crimp ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN PLUG W/DETENT 2POS .093 .093 Pin + Socket Plug panel housing 2P Connector; Soft Shell; 250 VAC; 13 A (Max.); Plug; Nylon; Natural; 2; 0.093 in. Pin & Socket Connectors PANEL MOUNT PLG 2P in-line Conn Housing PL 2 POS 6.3mm Crimp ST Individual Product Highlights:HousingHousing Type = PlugHousing Accepts Contact Type = Pin or SocketIn-Line Contact Layout6.30 mm CenterlineSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG & SOCKET HOUSING, PLUG, NYLON Connector,SoftShell;250VAC;13A(Max.);Plug;Nylon;Natural;2;0.093in. 02P .093 COMM P&S PLUG .248CL

¥1.3600
详情
770075-1

770075-1

te connectivity / amp

Conn Housing RCP 4 POS 5.03mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN RECEPT W/DETENT 4POS .093 .093 Pin + Socket Receptacle housing 4P Pin & Socket Connectors RECPT 4P DETENT LOCK in-line Conn Housing RCP 4 POS 5.03mm ST Individual Product Highlights:HousingReceptacle5.03 mm CenterlineNumber of Circuits = 4In-Line Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG & SOCKET HOUSING, RECEPTACLE, 4POS, 5.03MM Connector,Shell;250VAC;13A(Max.);4;Receptacle;Nylon;Natural;In-Line 04P .093 COMM P&S RECPT HSG

¥0.8160
详情
770086-1

770086-1

te connectivity / amp

Conn Housing RCP 6 POS 5.03mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN RECEPT W/DETENT 6POS .093 .093 Pin + Socket Receptacle housing3+3P Pin & Socket Connectors RECPT 6P DETENT LOCK matrix Conn Housing RCP 6 POS 5.03mm ST Individual Product Highlights:HousingReceptacle5.03 mm CenterlineNumber of Circuits = 6Matrix Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Connector,Shell;250VAC;13A(Max.);6;Receptacle;Nylon;Natural;Matrix 06P .093 COMM P&S RECPT HSG

¥0.9384
详情
770100-1

770100-1

te connectivity / amp

Conn Housing RCP 12 POS 5.03mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN HOUSING RCPT 12CIRC Pin & Socket Connectors RECPT 12P FREE HNG w/o detent lock Conn Housing RCP 12 POS 5.03mm ST Individual Product Highlights:HousingReceptacle5.03 mm CenterlineNumber of Circuits = 12Matrix Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 12P .093 COMM P&S RECPT

¥3.8556
详情
770084-1

770084-1

te connectivity / amp

Conn Housing PL 5 POS 5.03mm Crimp ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN PLUG W/DETENT 5POS .093 Pin & Socket Connectors PLUG W/O EAR 5P inline Conn Housing PL 5 POS 5.03mm Crimp ST Individual Product Highlights:HousingPlug5.03 mm CenterlineNumber of Circuits = 5In-Line Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG & SOCKET HOUSING, PLUG, 5POS, 5.03MM HOUSING,PLUG,SOFTSHELL,5POSITION,.093,IN-LINE TE Connectivity .093 Commercial 系列 1 行 5.03mm 节距 5 路 直 公 压接连接器外壳 05P .093 COMM P&S PLUG HSG

¥0.9996
详情
770108-1

770108-1

te connectivity / amp

Conn Housing PL 9 POS 5.03mm Crimp ST Panel Mount Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN PLUG HSNG 9POS PANEL MOUNT Pin & Socket Connectors 09P .093 COMM P&S PLUG Conn Housing PL 9 POS 5.03mm Crimp ST Panel Mount Individual Product Highlights:HousingPlug5.03 mm CenterlineNumber of Circuits = 9Matrix Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 09P .093 COMM P&S PLUG

¥1.3600
详情
770089-1

770089-1

te connectivity / amp

Conn Housing PL 6 POS 5.03mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN PLUG W/DETENT 6POS .093 Pin & Socket Connectors PANEL MOUNT PLG 6P matrix Conn Housing PL 6 POS 5.03mm ST Individual Product Highlights:HousingPlug5.03 mm CenterlineNumber of Circuits = 6Matrix Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 06P .093 COMM P&S PLUG HSG

¥1.1424
详情
770091-1

770091-1

te connectivity / amp

Conn Housing RCP 9 POS 5.03mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. 09P .093 COMM P&S RECPT HSG Pin & Socket Connectors RECPT 9P PANEL MNT w/o detent lock .198, .200, .250" Centerline, 250 V, 13 A max. Product Highlights:HousingReceptacle5.03 mm CenterlineNumber of Circuits = 9Matrix Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp,

¥1.7612
详情
770329-1

770329-1

te connectivity / amp

Conn Housing RCP 4 POS 6.35mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN RECEPT W/DETENT 4POS .093 Pin & Socket Connectors 04P .093 COMM P&S RECPT .250CL Conn Housing RCP 4 POS 6.35mm ST Individual Product Highlights:HousingReceptacle6.35 mm CenterlineNumber of Circuits = 4In-Line Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, 04P .093 COMM P&S RECPT .250CL

¥1.4960
详情

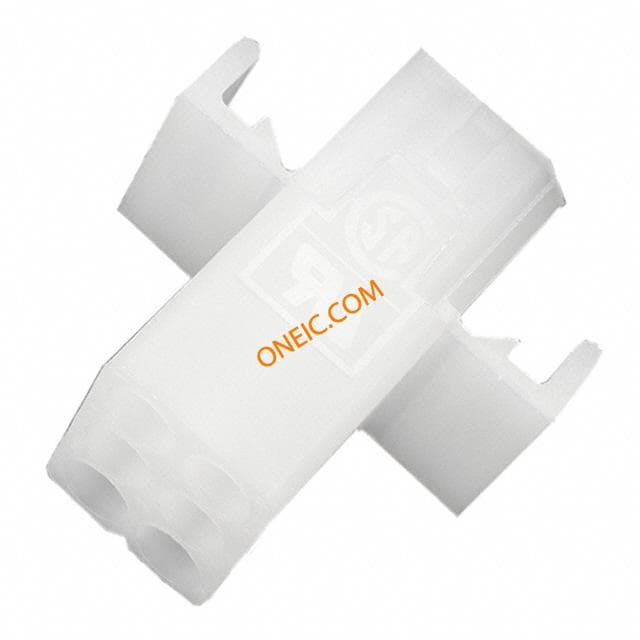

770087-1

770087-1

te connectivity / amp

Conn Housing RCP 6 POS 5.03mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN RECEPT W/DETENT 6POS .093 Commercial,socket,6way pin or skt Pin & Socket Connectors RECPT 6P DETENT LOCK matrix Conn Housing RCP 6 POS 5.03mm ST Individual Product Highlights:HousingReceptacle5.03 mm CenterlineNumber of Circuits = 6Matrix Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, TE Connectivity .093 Commercial 系列 2 行 5.03mm 节距 6 路 直 母 压接连接器外壳 06P .093 COMM P&S RECPT HSG

¥2.5024
详情
770076-1

770076-1

te connectivity / amp

Conn Housing RCP 4 POS 5.03mm ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN RECEPT W/DETENT 4POS .093 .093 Pin + Socket Receptacle housing 4P Connector; Shell; 250 VAC; 13 A (Max.); 4; Receptacle; Nylon; Natural; In-Line Pin & Socket Connectors RECPT 4P DETENT LOCK in-line Conn Housing RCP 4 POS 5.03mm ST Individual Product Highlights:HousingReceptacle5.03 mm CenterlineNumber of Circuits = 4In-Line Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG & SOCKET HOUSING, RECEPTACLE, 4POS, 5.03MM Connector,Shell;250VAC;13A(Max.);4;Receptacle;Nylon;Natural;In-Line 04P .093 COMM P&S RECPT HSG

¥0.9112
详情
770782-1

770782-1

te connectivity / amp

Conn Housing RCP 6 POS 5.03mm Crimp ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. 06P .093 COMM P&S RECPT Pin & Socket Connectors 6P RECPT FH 94V-2 .198, .200, .250" Centerline, 250 V, 13 A max. Product Highlights:HousingReceptacle5.03 mm CenterlineNumber of Circuits = 6In-Line Contact LayoutSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, PLUG & SOCKET HOUSING, RECEPTACLE, NYLON

¥10.9480
详情
318837-1

318837-1

te connectivity / amp

Extraction Tool Insert Discrete Terminals Into Connector Housings Hand Tools EXTRACTION TOOL EXTRACTION TOOL .093 CONN EXTRACTION TOOL ASSEMBLY; .093 Contacts EXTRACTION TOOL EXTRACTIONTOOLASSEMBLY;.093Contacts Extraction Tool Assembly Extraction tool, 318837-1, TE Connectivity EXTRACTION TOOL ASSEMBLY

¥650.2840
详情

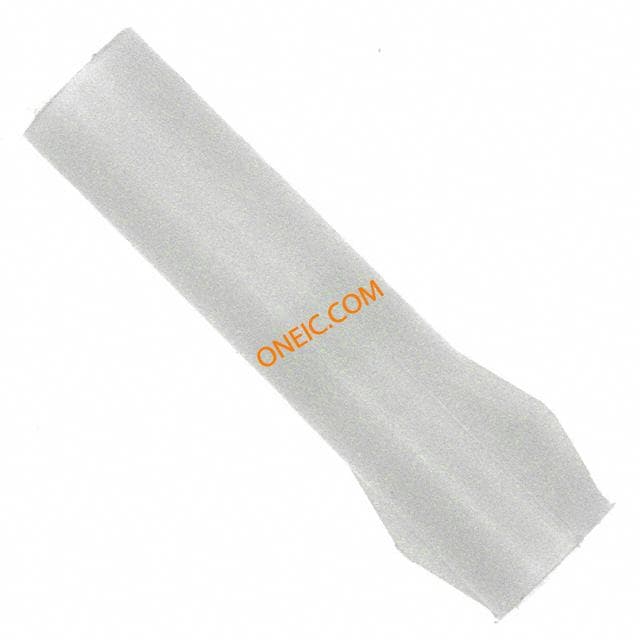

770063-1

770063-1

te connectivity / amp

Conn Housing RCP 1 POS ST Individual .198, .200, .250" Centerline, 250 V, 13 A max. CONN RECEPT W/DETENT 1POS .093 .093 Pin + Socket Receptacle housing 1P Pin & Socket Connectors RECPT 1P DETENT LOCK in-line Conn Housing RCP 1 POS ST Individual Product Highlights:HousingReceptacleNumber of Circuits = 1In-Line Contact LayoutMount = Free HangingSearch Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, Connector,Shell;250VAC;13A(Max.);1;Receptacle;Nylon;Natural;In-Line 01P .093 COMM P&S RECPT HSG

¥0.4828
详情

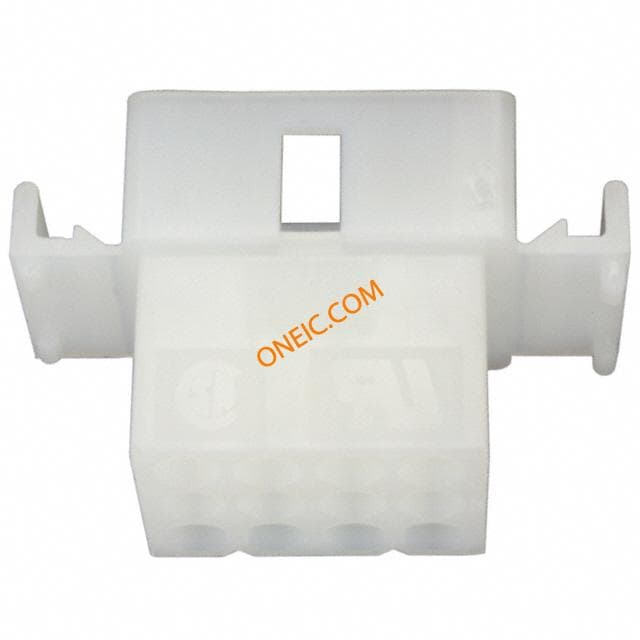

770101-1
