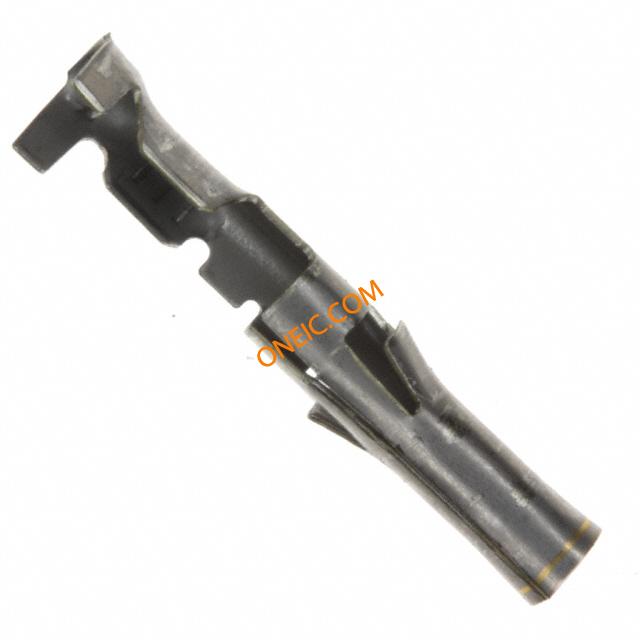

770146-5

点击放大查看

770146-5

制造商
TE Connectivity Ltd.
描述Contact SKT Crimp ST Cable Mount Strip .198, .200, .250" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Pin & Socket Connectors 093CPS SKT 24-18 BR/AU Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketSelect Gold [30] Solder Tail Contact PlatingLoose PieceWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, Soft Shell 24-18 AWG Crimp Socket Contact
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant

电气参数

额定电压250 V最大额定电流13 A

机械参数

包装方式Bulk导线线规18-24 AWG
端接方式Crimp触头类型Power
插针或插孔Socket连接器类型Connector Power
接触镀层Pre-Tin触头材料Brass
端接样式Crimp第一触头极性Socket (Female)
接触件端接Crimp接触镀层厚度30µin (0.76µm)
线规或范围 - AWG24-18

产品信息

连接器性别SKT产品子类型Contacts
