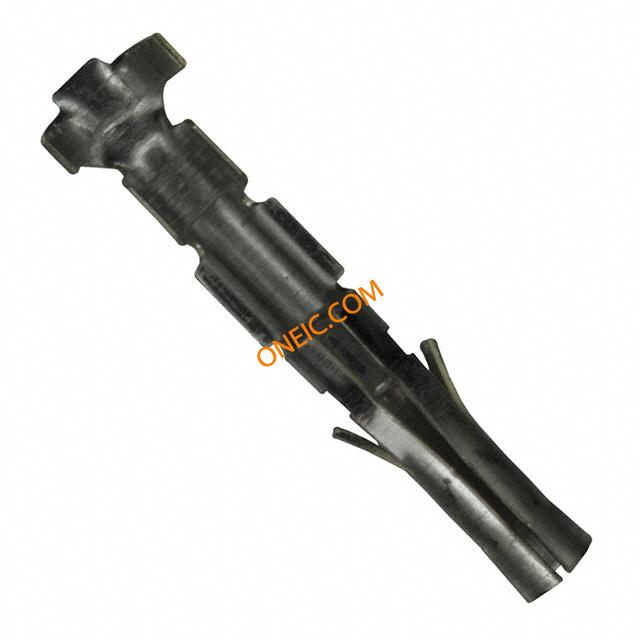

770529-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors .093 COMM P&S SKT .198, .200, .250" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG .093 TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketPre-Tin Solder Tail Contact PlatingStripWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, Free Hanging Crimp Contact Socket Connector .093 COMM P&S SOK 14-20 PTPBR |
| 分类 |
商业参数
| 其他名称 | A25511CT | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 3750 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 250, 600 |
| 最大额定电流 | 19 A | ||
机械参数
| 间距 | 4.14 mm | 镀层 | 预镀锡 |
| 包装方式 | Reel | 电缆类型 | 分离式导线 |
| 导线线规 | 14-20 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Gold Over Nickel |
| 安装样式 | Free Hanging, Panel | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 包装数量 | 3750 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 适用端子尺寸 | No |
| 触点数 | 10 | 接触件端接 | Crimp |
| 绝缘直径 | 4.06 mm [ .16 in ] | 兼容外壳尺寸（如TM-700等） | 插针 |
| 接触件表面处理 - 配合 | 预镀锡 | 法兰上方插针尺寸 | 2.36 mm [ .093 in ] |
| 线规或范围 - AWG | 20-14 | ||
产品信息
| 连接器性别 | SKT | 产品子类型 | Receptacle Housings |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
