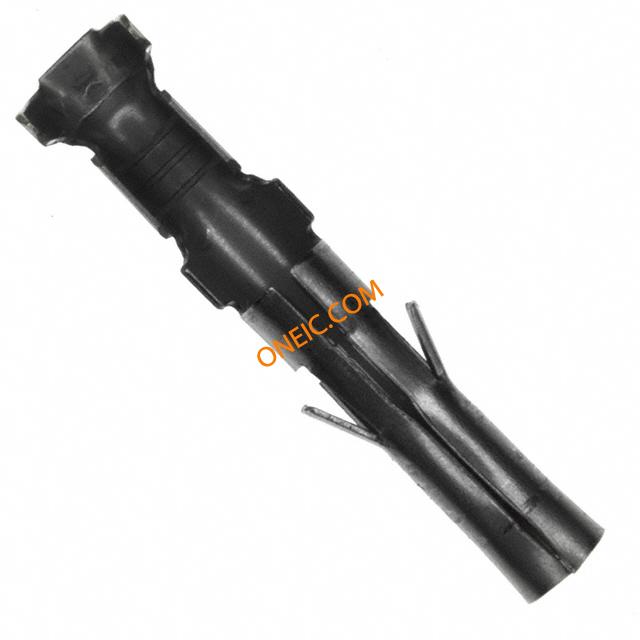

770144-5

点击放大查看

770144-5

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Loose Piece .198, .200, .250" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG GOLD CRIMP Pin & Socket Connectors .093 SOC AUBR 20-14 .198, .200, .250" Centerline, 250 V, 13 A max. Product Highlights:ContactSocketSelect Gold [30] Solder Tail Contact PlatingLoose PieceWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:soft shell, wire to wire, Power Pin & Socket, Lighting Interconnection, cabled power, pcb connectors, power, discrete wire, crimp, .093 CP&S SOC AUBR L/P 20-14
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

标准包装规格1,000产品类别Pin & Socket Connectors
标准包装数量Bulk工厂包装数量1000

合规参数

RoHSLead free / RoHS CompliantUL档案号E28476
标准编号CSA, UL

电气参数

额定电压250 V供电电压250, 600
最大额定电流13 A

机械参数

镀层镍包装方式Bulk
电缆类型分离式导线导线线规14-20 AWG
端接方式Crimp触头类型Power
插针或插孔Socket连接器类型Connector Power
接触镀层Gold Over Nickel壳体镀层Nickel
插入件材料黄铜触头材料Brass
包装数量1000端接样式Crimp
第一触头极性Socket (Female)适用端子尺寸No
接触件端接Crimp绝缘直径3.56 mm [ .14 in ]
兼容外壳尺寸（如TM-700等）插针接触件表面处理 - 配合镍
法兰上方插针尺寸2.36 mm [ .093 in ]接触镀层厚度30µin (0.76µm)
线规或范围 - AWG20-14护套（绝缘）厚度1.27 µm [ 50 µin ]

产品信息

连接器性别PIN产品子类型Contacts
应用细节Power

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
