647402-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 9 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HOUSING 9POS SL156 Headers & Wire Housings 09P SL156 HSG W/RMP&TABS OVSZ Conn Housing RCP 9 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 9Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P SL156 HSG W/RMP&TABS,OVSZ |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已获认证 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 开关功能 | Locking Ramp | 供电电压 | 250 VAC |
| 连接器阻抗 | 压接 | 最大额定电流 | 6.5 |
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 壳体颜色 | 自然 | 出线方向 | 180° |
| 导线线规 | 18-24 AWG | 触头类型 | Female Socket |
| 极化 | Polarizing Tab | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Crimp | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 外壳材料（壳体） | 盖 | 连接器用途 | Receptacle |
| 高度（英寸） | 6.35 | 锁定特性 | Locking Ramp |
| 壳体材料 | Nylon | 总长度 | 1.282 |
| 安装特性 | Without | 包装数量 | 1 |
| 面板安装类型 | Without | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 9 | 端接表面处理 | 不带 |
| 接触件端接 | Crimp | 绝缘直径 | Large |
| 位数 | 9 | 兼容外壳尺寸（如TM-700等） | SL .156 端子 |
| 安装孔直径 | 带有 | 典型触点布局 | 3.96 [0.156] |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | SL-156 |
| 产品特性 | Polarizing Key | 可密封 | 否 |
| 制造商全称 | AMP | 产品子类型 | SL-156 Housings |
| 应用细节 | Wire-to-Board | ||
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
相关型号

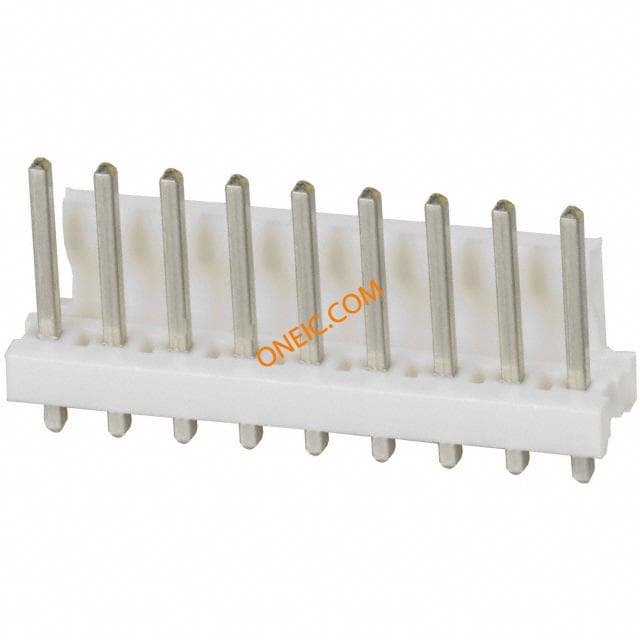

644760-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS VERT .156 GOLD
644752-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .156 TIN Headers & Wire Housings 09P MTA156 HDR ASSY Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:9 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY SQ STR F/L
641120-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS STR .156 15GOLD Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

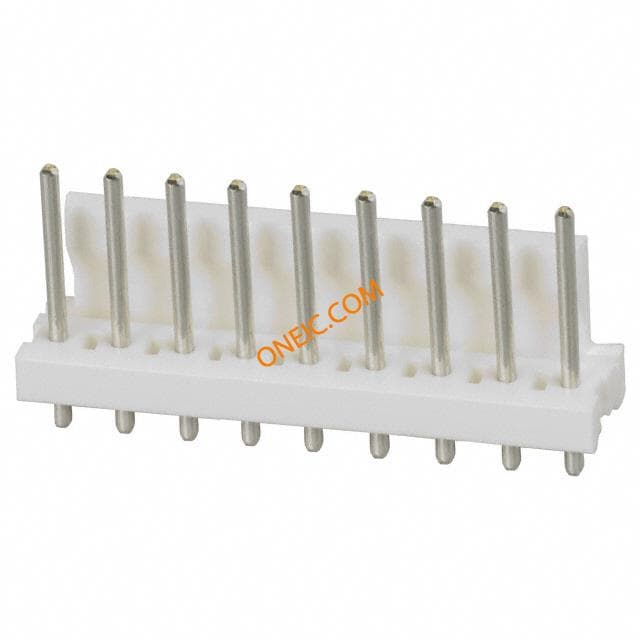

640388-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .156 TIN TE Connectivity 3.96mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 7A Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Receptacle,2.54mmIDT,straight,9w TE Connectivity MTA-156 系列 3.96mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 09P MTA156 HDR ASSY RN STR F/L
647485-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN CONTACT 16AWG GOLD CRIMP Power to the Board CONTACT 30 AU SL156 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Contact Type = SL-156 ContactsWire Termination Type = CrimpGold (30) Contact Plating, Mating Area, MaterialWire Size = 1.29-1.42² [16] mm² [AWG]Used For SL-156 Large Insulation Diameter WireSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL156 RECEPT,AUNI/PHBZ,L/P,LRG

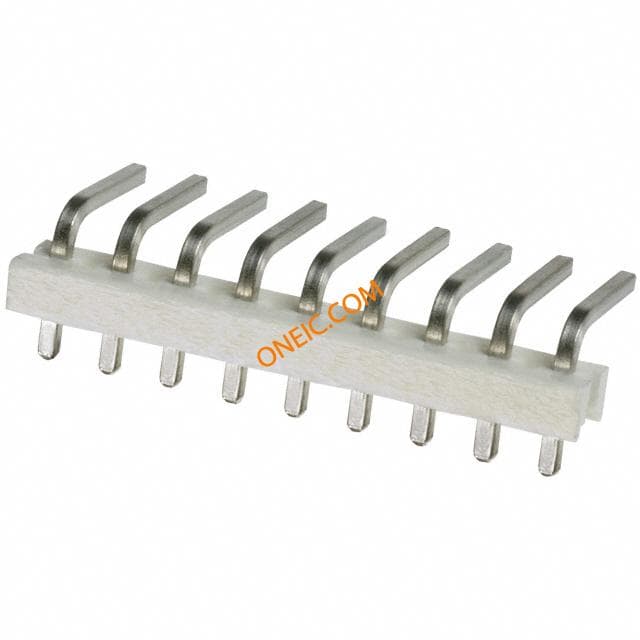

640385-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 9P Square post tin Conn Unshrouded Header HDR 9 POS 3.96mm Solder RA Thru-Hole Product Highlights:Header9 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY SQ R/A

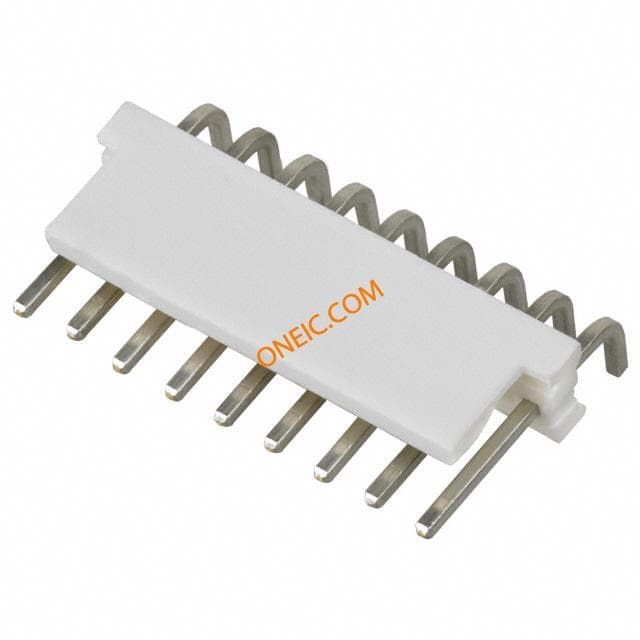

640389-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 9P Square post tin Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY SQ R/A F/L
3-641208-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS .156 30 GOLD Headers & Wire Housings FRCTN LK HDR STR 9P Square post gold Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY FL ST LF
647406-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN CONTACT SL156 18-24AWG Headers & Wire Housings SLD 156 RCPT AUNI/PHBZ LARG DIA SL156 RECPT,AUNI/PHBZ,LARG DIA SL156 RECPT,AUNI/PHBZ,LARG DIA Search Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP
644753-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS VERT .156 TIN Headers & Wire Housings 09P MTA156 HDR ASSY RN STR F/L 09P MTA156 HDR ASSY RN STR F/L 09P MTA156 HDR ASSY RN STR F/L Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

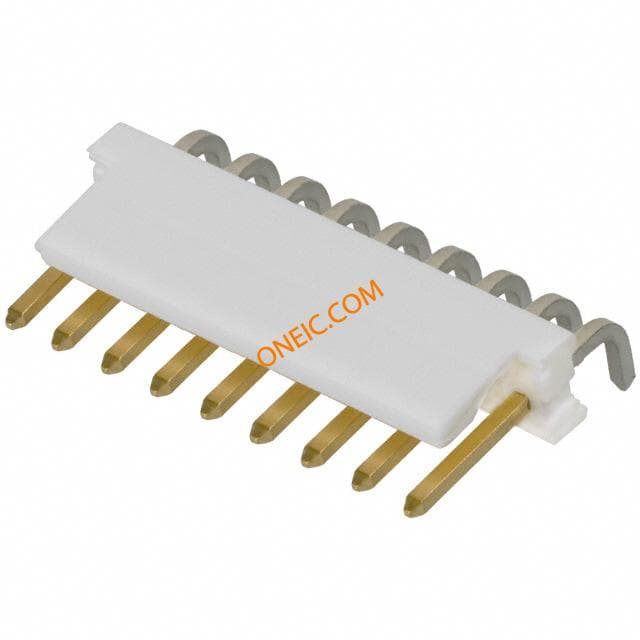

641210-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 9POS 30AU Headers & Wire Housings FRCTN LK HDR RA 9P Square post gold Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HRD FL RA FB 30AU

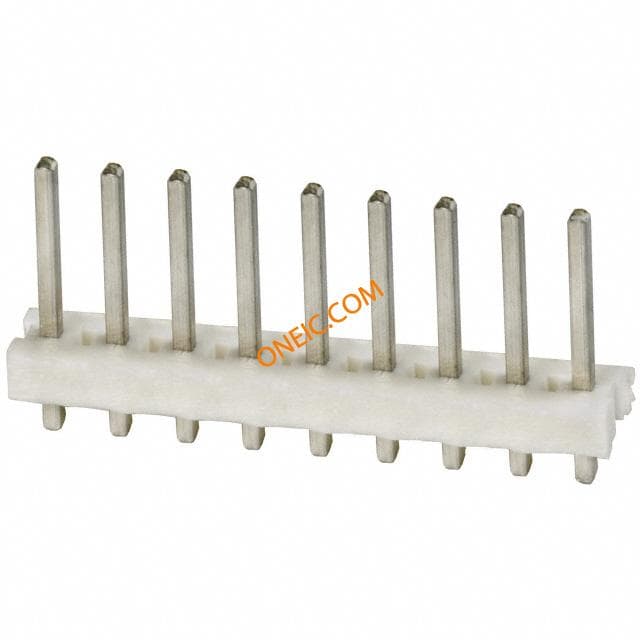

640383-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 7A Conn Unshrouded Header HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector9 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Header,MTA156,straight,3.96mm,9way TE Connectivity MTA-156 系列 3.96mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 09P MTA156 HDR ASSY STR SQ SN
644759-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS VERT .156 GOLD Headers & Wire Housings 09P MTA156 HDR ASSY STR 30AU Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
647409-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Headers & Wire Housings SLD 156 RCPT AUNI/PHBZ L/P LRG MTA, CST, CST-100 II and SL Contacts CONN CONTACT 18-24AWG GOLD CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SL-156 ContactsWire Termination Type = CrimpGold (30) Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 Large Insulation Diameter WireSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL156 RECEPT,AUNI/PHBZ,L/P,LRG

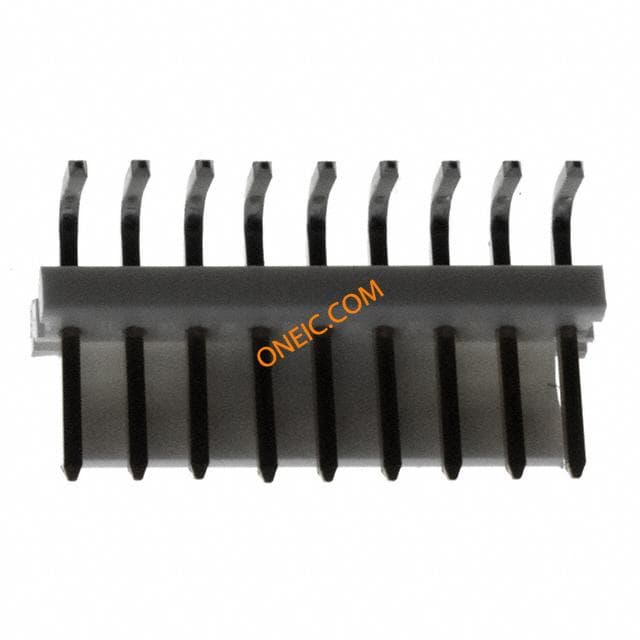

3-641210-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 9POS 30AU Headers & Wire Housings 09P MTA156 HDR FLRA FB 30AU LF Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR FLRA FB 30AU LF
640445-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 9P Square post tin Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 9POS, 3.96MM 09PMTA156HDRASSYFL/STRSN TE Connectivity MTA-156 系列 3.96mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 09P MTA156 HDR ASSY FL/STR SN
640384-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 3.96mm Solder ST Thru-Hole Headers & Wire Housings FLAT HEADER STRT 9P Round post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .156 TIN Conn Unshrouded Header HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:Header9 PositionsConnector Style = PlugContact Type = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY STR RND SN
641119-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS VERT .156 GOLD Headers & Wire Housings 09P MTA156 HDR ASSY FL/ST 15AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY FL/ST 15AU

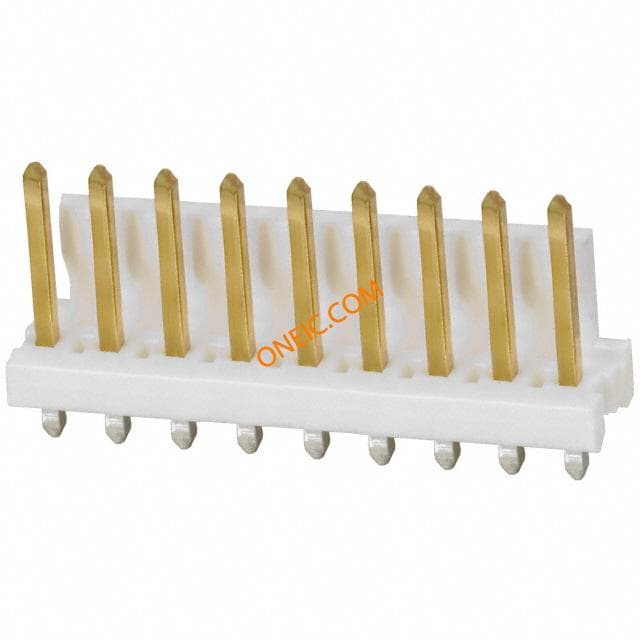

641208-9
