640388-9

点击放大查看

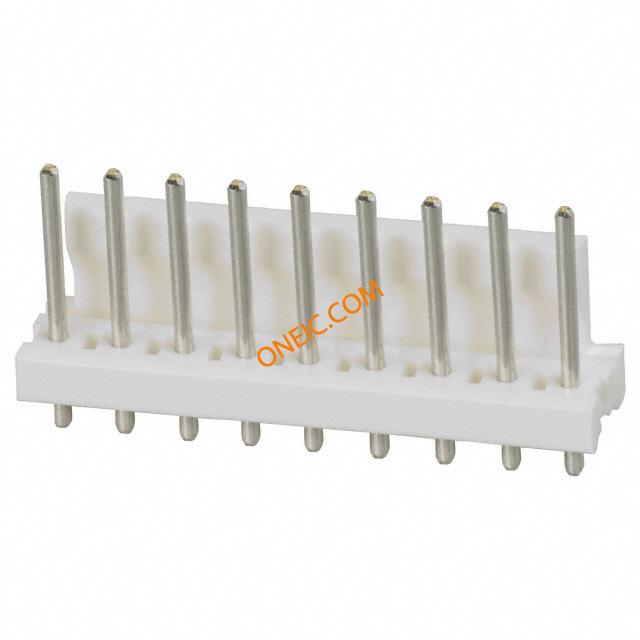

640388-9

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .156 TIN TE Connectivity 3.96mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 7A Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Receptacle,2.54mmIDT,straight,9w TE Connectivity MTA-156 系列 3.96mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 09P MTA156 HDR ASSY RN STR F/L
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0

电气参数

额定电压600 V ac供电电压600
最大额定电流7A

机械参数

颜色Natural间距3.96 mm
高度10.79 mm [ .425 in ]长度35.66 mm [ 1.404 in ]
密封型Not Sealed包装方式Bulk
方向直端接方式Solder
触头类型Male Pin安装类型Through Hole
连接器类型Header, Unshrouded接触镀层Tin
触点时序Without紧固类型Friction Lock
安装样式不带引脚数9
排数1封装形式Plug
壳体镀层Nickel插入件材料铜合金
触头材料Copper Alloy壳体材料聚酯
包装数量2000面板安装类型通孔 - 焊接
主要材料WiretoBoard端接排数焊接
端接样式公端触点数9
位数9兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局直插式接触长度 - 配合0.400" (10.16mm)
端子柱长度3.56 mm [ .14 in ]接触镀层厚度100 µm [ 2.54 µin ]
静电放电屏蔽不带

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156覆盖范围无覆盖
制造商全称MTA-156Series产品子类型公端
应用细节Power加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
封装热阻1.6 mm [ .063 in ]
