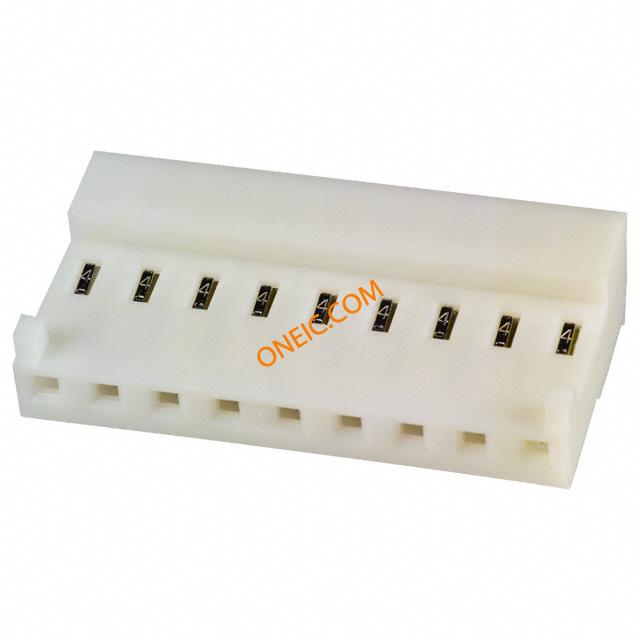

3-644464-9

点击放大查看

3-644464-9

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings 09P MTA156 CONN ASSY 24AWG LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS 24AWG MTA156 09P MTA156 CONN ASSY 24AWG LF 09P MTA156 CONN ASSY 24AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格250产品类别Headers & Wire Housings
标准包装数量Bulk

合规参数

RoHSRoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA分类已认证
UL阻燃等级UL 94V-2

电气参数

额定电压600 VAC供电电压600
连接器阻抗刺破式压接 (IDC)最大额定电流7 A

机械参数

颜色White间距3.96 mm
高度9.02 mm [ .355 in ]长度35.66 mm [ 1.404 in ]
密封型Not Sealed包装方式Bulk
导线类型Discrete or Ribbon Cable壳体颜色白色
电缆类型分离式导线导线线规24
端接方式IDT触头类型Female Socket
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Tin触点时序Without
安装样式Wire引脚数9
排数1壳体镀层Nickel
外壳材料（壳体）标准外形插入件材料铜合金
触头材料Phosphor Bronze壳体材料Nylon
包装数量250面板安装类型不带
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数9
绝缘直径2.41 mm [ .095 in ]位数9
外壳尺寸-插件母端, 母端兼容外壳尺寸（如TM-700等）MTA .156 公端
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局直插式接触镀层厚度80µin (2.03µm)
静电放电屏蔽带有护套（绝缘）厚度30 µm [ .762 µin ]

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Closed End, Polarizing Key
产品子类型Receptacles / Sockets - Housings安装类型Closed End
输出配置90°

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
