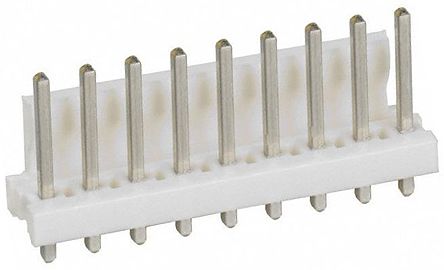

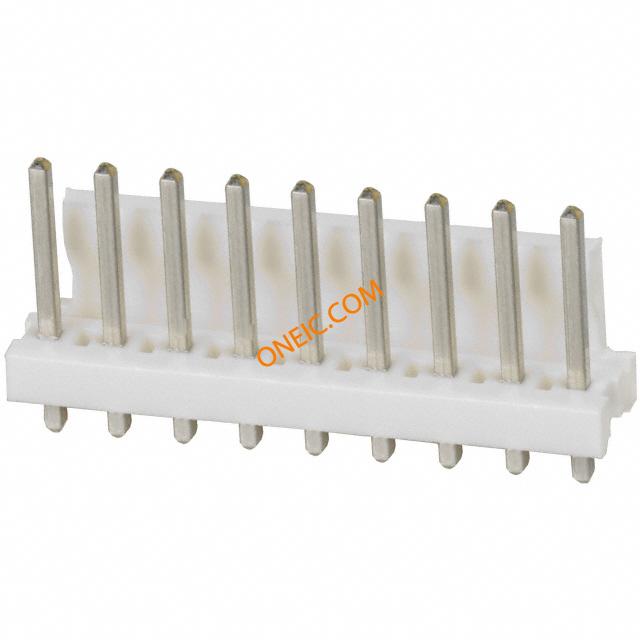

640445-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 9P Square post tin Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 9POS, 3.96MM 09PMTA156HDRASSYFL/STRSN TE Connectivity MTA-156 系列 3.96mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 09P MTA156 HDR ASSY FL/STR SN |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 认证机构 | CSA,UL | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 量程（°/s） | :TE - MTA-156 Series | 额定电压 | 600 V ac |
| 开关功能 | Friction Lock | 接触电阻 | 3 mohm |
| 最大额定电流 | 7A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 7.62 mm |
| 间距 | 3.96 mm | 高度 | 13.33 mm |
| 重量 | 0.003 | 包装方式 | Bulk |
| 导线线规 | 26-18 | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚长度（针脚） | 0.125" |
| 外壳颜色 | White | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 总长度 | 35.66 mm | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.156" | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 9 |
| 接触件端接 | :Through Hole Vertical | 绝缘直径 | 0.095"(SingleWire),0.07"(MassTerminationWires) |
| 位数 | 9 | 安装孔直径 | 0.07" |
| 接触长度 - 配合 | 0.400" (10.16mm) | 端子柱长度 | 3.18 mm |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MTA-156 | 产品特性 | IDC,Pinstrip |
| 制造商全称 | MTA-156Series | 产品子类型 | Headers |
| 应用细节 | Wire-to-Board | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | ||
